Electric Bicycle Instrument Panel Fault Repair Experience: Testing, Diagnosis, and Repair Case Analysis
Electric bicycle instruments vary widely in design and complexity, from simple analog gauges to smart display panels that communicate with the controller. This guide covers the main instrument types, including analog instruments, LCD panels, LED clusters, smart displays, speedometers, and odometers, followed by relays and converters. It then provides a structured troubleshooting approach for instrument system faults and twelve real repair cases, each presented from fault symptom to repair. Always confirm the vehicle’s rated voltage and connector layout before replacing any instrument assembly.
Types of Electric Bicycle Instruments and Troubleshooting Approaches

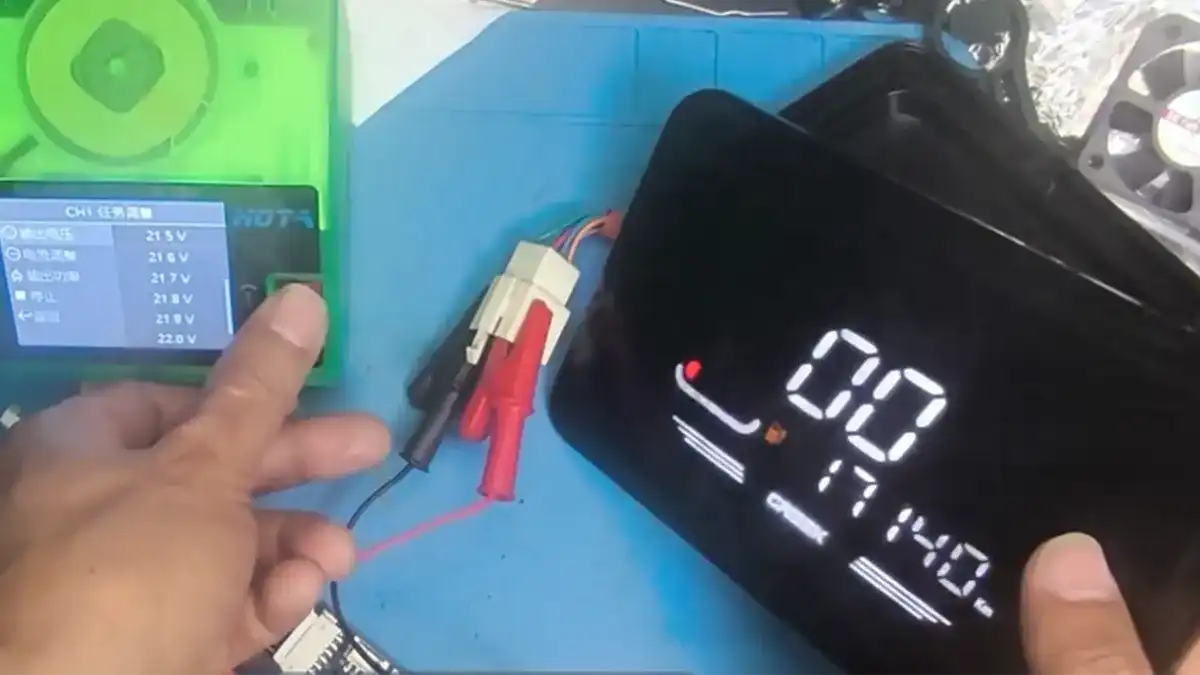

1. Electrical Instruments
1.1 Analog Instruments
Analog instruments do not rely on the controller circuit and can operate independently. The main causes of failure are issues with the wiring or the instrument head. When installing or removing the instrument, take special care not to reverse the positive and negative terminals of the power supply.
1.2 LCD Instrument Panels
LCD instrument panels have complex circuitry and a relatively high failure rate. Some LCD instrument panels can operate independently without relying on the controller circuit, while others require digital signals from the microcontroller within the controller to function. Because this involves display driver software and the specific microcontroller model, once an LCD instrument panel fails, the entire assembly must be replaced. In an emergency, the wires from the throttle grip and brake lever can be connected directly to the controller.
1.3 LED Instrument Clusters
LED instrument clusters use digital logic chips for signal acquisition and processing; their circuits do not depend on the controller circuit and can operate independently. On some electric bicycles, signals from the throttle and brake levers pass through the instrument panel before being output to the controller. In an emergency, the wires from the throttle and brake levers can be connected directly to the controller.
1.4 Smart Display Instrument Panels
The display content of smart display instrument panels relies on data signals from the controller; if the instrument panel malfunctions, the entire instrument panel assembly must be replaced. For emergency repairs, the throttle signal can be connected directly to the controller.
2. Speedometer and Odometer
Speedometers and odometers come in three types: electronically controlled, cable-driven, and Hall-effect sensor-based. Common faults include the needle not moving, the digits not updating, or the backlight not illuminating.
2.1 Electronically Controlled Instrument Clusters
Causes of Failure: The instrument cluster may fail to display due to a faulty drive power supply, circuit failure, poor contact at wiring connectors, or component aging.
Diagnosis and Troubleshooting:
a. Turn off the power, unplug the wiring connectors, and plug them back in securely. Turn on the power and check the meter display while the system is stationary or in operation. If the display is normal, the fault is resolved. If the fault persists, use a multimeter set to the resistance range to test continuity between the connector terminals and the wiring. If the issue is caused by terminals losing their elasticity, use tweezers or a pointed tool to pry the terminals up, causing them to bulge and restore their elasticity; if the connector is defective, replace it with a kit of the same model.
b. Turn off the power, unplug the connector, and replace it with a functional display meter of the same type. After reconnecting, turn on the power; if the display is normal, this indicates that the original meter was faulty. If the issue is a wiring problem, repair it; if the light-emitting display component has aged and lost functionality or is of poor quality, replace it with a new unit of the same model.
c. If, after performing the above steps, the replacement display instrument still does not function, this indicates a fault in the drive circuit of the display section within the controller; troubleshooting should be performed according to the controller troubleshooting methods described above.
2.2 Hall-Effect Sensor Instruments
Hall-effect sensor instruments primarily consist of two parts: a magnet and a Hall-effect sensor. The magnet is mounted at an appropriate position on the wheel and moves with it; the Hall-effect sensor is fixed at an appropriate position on the bicycle’s front or rear fork. The main types of malfunctions are as follows:
a. Magnet. The primary issue is that the magnet has fallen off or become misaligned. The magnet is secured to the spokes with bolts; if the bolts become loose, the magnet may shift, preventing it from aligning with the Hall-effect sensor and preventing signal transmission. Simply reposition the magnet and tighten it securely.
When repositioning, ensure it is aligned with the Hall-effect sensor and tighten it firmly. If the nut falls off, the magnet will be lost, and the magnet must be replaced.
b. Circuit. If the circuit has no power supply, it will not function. Check the power supply lines and check for open circuits.
c. Display Instruments. The main faults include aging of the display components, open circuits, bent pointers, the pointer shaft shifting out of its groove, and friction between the pointer and the dial or dial glass. For LCD displays, aside from aging of the LCD panel, moisture, and broken wiring, other problems are unlikely to occur.
In cases of aging or broken wiring, replacement is the only solution.
2.3 Electronically Driven Display Instruments
Electronically driven instruments mainly include two types: LCD digital displays and LCD pointer displays.
Common faults include aging of the LCD panel, open circuits, short circuits, and control circuit malfunctions. The wiring includes both external and internal connections; while external connections are easy to locate, internal wiring issues—primarily involving the LCD panel’s wiring—are difficult to repair. Circuit failures primarily involve the controller’s drive circuit and can be diagnosed using the methods described above.
2.4 Cable-Driven Display Instruments
Cable-driven odometers and speedometers include three types: ① magnetoelectric; ② electric; and ③ magnetic induction. Mechanical digital odometer-speedometers are essentially the same as motor tachometers; they are induction-type instruments, with the addition of a worm gear assembly to drive the digital counter mechanism.
2.4.1 Among induction-type instruments, magnetic induction-type odometer-speedometers are commonly used due to their vibration resistance and suitability for in-vehicle conditions. The principle of a magnetic induction odometer-speedometer is similar to that of a household electricity meter: a flexible cable drives the instrument’s main shaft, which in turn rotates a magnet mounted on a support bracket at the shaft end. The alternating magnetic field generated as the magnet rotates causes the induction shield to rotate in response to magnetic induction. However, due to the damping force of the hairspring, the induction shield can only rotate to a fixed angle. This angle is related to the rotational speed of the magnet and is determined by the strength of the magnetic field.
a. Inductive instruments are generally reliable; as long as the steel cable in the flexible shaft is not worn, the meter itself can last from hundreds of thousands to millions of kilometers. Routine maintenance primarily involves lubrication, especially of the steel cable within the flexible shaft. If the cable frequently experiences dry friction against the outer sleeve, the sleeve may wear through and the cable may snap. Proper lubrication not only ensures smooth operation but also extends service life.
b. Troubleshooting.
① Check whether the steel cable drive is functioning normally.
a. Remove the steel cable from beneath the odometer/speedometer. Hold the upper end with your hand, jack up the front wheel, and rotate the wheel to observe whether the steel cable core rotates in tandem. The core’s rotational speed should match that of the wheel. Next, twist the cable core by hand; if it does not move, this indicates that neither the cable nor the drive gear on the wheel axle end has any issues. Conversely, if the cable does not rotate normally when the wheel turns, pull the cable core out of the cable sleeve and inspect the core, as well as the square head at the upper end and the screw head at the lower end, for any abnormalities.
b. When operating without lubrication, the high-speed rotation causes the steel cable to heat up and anneal, softening the wires and causing them to wear down the outer sheath of the flexible shaft.
c. The square head drives the magnet in the meter; the likelihood of a fault here is virtually zero. Inspect the screw head at the lower end. If there is obvious wear, it indicates that both the screw head and the gear meshing with it are faulty; the cable core and the gear at the wheel shaft end should be replaced.
d. Whether installing a new part or reinstalling the original, grease should be applied in advance. Do not use ordinary engine oil as grease. To ensure proper lubrication, the grease must neither flow nor solidify at ambient temperatures ranging from -50°C to 50°C, maintain good viscosity, and adhere evenly to the surface of the lubricated parts.
② If there are no issues with the steel cable and flexible shaft drive assembly, inspect the interior of the odometer. When disassembling the odometer and speedometer, take care not to lose any parts; remember the sequence and positions of the components, and mark and record details during disassembly to ensure smooth and accurate reassembly.
③ Odometer Malfunction Inspection.
a. Check the magnetic field strength of the rotor magnets.
b. Check the inductive capability of the induction shield; verify that the pointer and the induction shield are not separated from each other.
c. Check whether the pointer is bent and rubbing against the dial face.
d. Check whether the pointer has come off the shaft.
e. Demagnetization of the magnet is a quality issue and typically occurs only when the material is of very poor quality. Generally, there are no external conditions that cause demagnetization; it occurs only through natural demagnetization. When demagnetization occurs, it primarily manifests as an inaccurate pointer reading and a reduced reading, but it does not affect the odometer’s drive mechanism.
④ The odometer counter mechanism is relatively simple, with no high-speed moving parts. Most are older, outdated instruments, and contact issues are typically caused by long-term wear and tear. The worm gear mechanism in the odometer and speedometer uses wear-resistant materials; it operates slowly and does not generate heat. Under normal circumstances, it can function without issues for over a decade. If properly lubricated, it can outlast the vehicle itself.
2.4.2 Hall-Effect Sensor-Based Instruments
A Hall-effect sensor consists of two parts: ① a magnet mounted at an appropriate position on the wheel, which moves with the wheel; ② a fixed Hall-effect sensor mounted at an appropriate position on the bicycle’s front or rear fork. The main faults with this instrument include:
a. The magnet. The primary issues are the magnet falling off or shifting out of position. The magnet is secured to the spokes with bolts; sometimes these bolts loosen, causing the magnet to shift out of position. As a result, it fails to align with the Hall-effect sensor, preventing the signal from being transmitted. To resolve this issue, simply reposition the magnet and tighten the bolts securely. Ensure the magnet is properly aligned with the Hall-effect sensor during repositioning, and tighten the bolts firmly. If the nut falls off, the magnet will likely be lost, requiring a complete replacement; therefore, pay close attention to this during routine maintenance.
b. Circuitry. The circuit will not function without power. Check the power supply lines and check for open circuits.
c. Display Instruments. Issues include aging or open circuits in the display components, bent pointers, pointer shafts shifting out of their grooves, and friction between the pointer and the dial or glass. LCD displays mainly suffer from screen degradation, moisture damage, and broken connections. For degradation and broken connections, replacement is the only solution. Therefore, daily care should include protection from direct sunlight and water exposure to slow down degradation. Since service centers cannot repair these issues, replacement is generally the only option.
d. Circuit Issues. Instrument circuit components are extremely small, making them difficult to inspect and troubleshoot; generally, replacement is the only option.
3. Relays and Converters
The diagnostic procedures for relay and converter malfunctions are as follows:
a. Turn on the power switch. If the relay emits a faint sound, it is functioning properly; if no sound is heard, the relay is faulty and must be replaced.
b. After turning on the power, if the horn does not sound, the headlights do not illuminate, and the turn signals do not illuminate, this indicates that the switch is faulty, a bulb has burned out, or there is a wiring fault. If only the horn fails to sound or the headlights do not illuminate, check whether the wiring connections are secure.
4. Diagnosis and Troubleshooting of Instrument System Faults
4.1 Analog Instruments
Analog instruments have a relatively low level of integration and simple circuit wiring; their circuits do not rely on controller circuits and can operate independently.
Failures in analog gauges are primarily caused by issues with the leads or the gauge head itself. When installing or removing a gauge, special care must be taken to ensure that the positive and negative terminals of the power supply are not reversed. In the turn signal section, the flasher unit provides an intermittent voltage to the turn signal bulbs, causing them to flash. The pins on the flasher unit housing are labeled “B” for power supply and “L” for turn signal; these must not be connected incorrectly during wiring.
4.2 Liquid Crystal Displays (LCDs)
The circuitry of these instruments is complex, and their failure rate is relatively high. Some LCD instrument circuits can operate independently without relying on the controller circuit, while others must rely on digital signals from the microcontroller within the controller to function. Due to the involvement of display driver software and the specific microcontroller model, once such an instrument fails, the entire instrument assembly must be replaced. In an emergency, the wires from the throttle and brake levers can be connected directly to the controller.
4.3 LED Instrument Panel
LED instrument panels use digital logic chips for signal acquisition and processing; their circuits do not depend on the controller circuit and can operate independently. In some electric bicycles, signals from the throttle and brake levers pass through the instrument panel before being output to the controller. In an emergency, the wires from the throttle and brake levers can be connected directly to the controller.
4.4 Smart Display Instrument Panels
The display content of smart display instrument panels depends on data signals from the controller. If the instrument panel malfunctions, the entire instrument panel assembly must be replaced. For emergency repairs, the signals from the throttle and brake levers can be connected directly to the controller.
Case Studies on Electric Bicycle Instrument Panel Repairs
Case 01: Power Indicator Light on Controller Panel Does Not Illuminate
Fault Symptoms:
When the power lock switch is turned on, the power indicator light on the controller panel does not illuminate.
Troubleshooting:
The main causes for the power indicator light on the controller panel not illuminating are: ① Poor contact between the cable plug and the controller panel socket; ② The fuse beneath the battery socket has blown; ③ A connection between batteries in the battery pack has broken.
The specific troubleshooting methods are as follows:
a. Check whether the plug is securely connected; if it is not, ensure it is firmly seated.
b. If the fuse is damaged, replace it.
c. If the internal wiring between battery packs is damaged, reconnect it.
Case 02: Power Indicator Light on Instrument Panel Is Off, but Motor Runs Normally
Fault Symptoms:
The power indicator light on the instrument panel is off, but the motor is running normally.
Troubleshooting:
If the power indicator light on the instrument panel is off while the motor is running normally, follow these troubleshooting steps:
a. If there is no voltage between the positive and negative leads on the instrument panel, and the issue is caused by poor contact at the connector or a broken lead, re-plug the connector or replace the wire.
b. If only the LED is damaged, replace it.
c. If there is an open circuit on the instrument panel circuit board, replace the instrument panel circuit board.
Case 03: No Power Indication on Instrument Panel, but Motor Runs Normally
Fault Symptoms:
There is no power indication on the instrument panel, but the motor is running normally.
Troubleshooting:
The primary causes of the fault where there is no power indication on the instrument panel but the motor is running normally are: ① No voltage between the positive and negative leads of the instrument; a short circuit in the wires or connectors; ② The instrument is damaged. The troubleshooting procedure is as follows:
Set the multimeter to the 50V DC range and measure the voltage between the positive and negative terminals of the instrument. If the voltage is normal, the instrument is damaged. If there is no voltage, it indicates an open circuit in the wires or connectors; inspect the cables and connectors. If a connector is damaged, replace it.
Case 04: Inaccurate Odometer and Speedometer Readings
Fault Symptoms:
The odometer and speedometer on an electric bicycle display inaccurate readings.
Troubleshooting:
Use the multimeter’s 200 MΩ range to test the terminals of the two wires connected to the Hall-effect sensor. If the forward resistance is 1.7 MΩ and the reverse resistance (with test probes reversed) is 0.029 MΩ, this indicates that the Hall-effect sensor has been exposed to moisture, causing its impedance to drop. After baking the Hall-effect sensor with a desk lamp for 2 hours, test it again; both forward and reverse resistance values should be greater than 200 MΩ.
If the two wires connected to the Hall-effect sensor are not properly waterproofed, rainwater can seep in along the base of the wires on rainy days, causing the device’s impedance to drop. This results in insufficient electrical signal amplitude, preventing the counter from triggering normally and leading to inaccurate display readings.
To prevent the Hall-effect sensor from becoming damp, use waterproof sealant to completely seal the base of the wires.
Case 05: Instrument Panel Replacement
Fault Symptoms:
The instrument panel needs to be replaced.
Troubleshooting:
Instrument panels used on electric bicycles all feature a battery voltage display and are generally isolated from control signals such as those from the throttle and brake levers. Therefore, in an emergency, as long as you identify the positive and negative battery terminals, the +15V, +12V, and +5V ground wires in the instrument circuit, and connect these wires correctly, you can replace the panel.
Case 06: Malfunction of the Odometer and Speedometer
Fault Symptoms:
The odometer and speedometer do not function properly.
Troubleshooting:
Electric bicycle odometers and speedometers primarily come in three types: electronically controlled, cable-driven, and Hall-effect sensor-based. These instruments generally do not malfunction easily; however, when a fault occurs, it typically manifests as a stationary pointer, a frozen digital display, or non-illuminated LED indicators. Once a fault in the odometer and speedometer unit itself is confirmed, the only solution is to replace it.
Case 07: Troubleshooting Mechanical Faults in Inductive Odometer and Speedometers
Fault Symptoms:
The inductive odometer and speedometer do not function properly due to mechanical faults.
Troubleshooting:
The primary causes of mechanical faults in inductive odometer and speedometers for electric bicycles are cable drive failures and meter malfunctions. The inspection and troubleshooting methods are as follows:
a. Check whether the cable drive is functioning normally. Remove the steel cable from beneath the odometer and speedometer. Hold the upper end with your hand, lift the front wheel off the ground, and rotate the wheel to observe whether the cable core rotates in tandem. The rotational speed of the cable core should match that of the wheel. Next, try twisting the cable core by hand. If it does not move, this indicates that neither the cable nor the drive gear at the wheel axle end has any issues. If the cable does not rotate normally when the wheel turns, pull the cable core out of the cable sleeve and check the core, as well as the square head at the top and the screw head at the bottom, for any abnormalities. Operation without lubrication will damage the steel cable. Under unlubricated conditions, a high-speed rotating steel cable generates heat and undergoes annealing, causing the wires to soften and lose their wear resistance, and leading to wear on the outer sheath of the flexible shaft.
Inspect the threaded end at the lower end; if there are obvious signs of wear, it indicates that both the threaded end and the gear meshing with it are faulty, and the steel cable core and the gear at the wheel shaft end should be replaced. Whether installing a new part or reinstalling the original, grease should be applied in advance. Do not use ordinary yellow engine oil as grease. At temperatures ranging from -50 to 50°C, the grease should neither flow freely nor harden into lumps; it must maintain good viscosity and adhere evenly to the surface of the lubricated parts to ensure proper lubrication.
b. If there are no issues with the steel cable flexible shaft drive assembly, inspect the interior of the odometer/speedometer. When disassembling the odometer/speedometer, be sure to mark and record each step, remember the sequence of disassembly and reassembly, and keep parts organized to ensure smooth and accurate reassembly. The inspection and troubleshooting procedures are as follows:
① Check the magnetic field strength of the rotor’s permanent magnets. Demagnetization of the magnets is a quality issue that typically occurs only when the material is of very poor quality. Generally, there are no external conditions that cause demagnetization; it occurs only through natural demagnetization. When demagnetization occurs, the primary symptoms are an inaccurate pointer and a reduced reading; however, this does not affect the drive mechanism of the odometer.
② Check the inductive capability of the aluminum induction shield and verify that the pointer is not detached from the shield.
③ Check whether the pointer is bent and rubbing against the dial face.
④ Check whether the pointer has come off the shaft.
⑤ The counter mechanism of the odometer and speedometer is relatively simple and contains no high-speed moving parts; prolonged wear can easily lead to poor contact.
Case 08: Yellow Instrument Panel Light Flashes Continuously
Fault Symptoms:
The yellow light on the instrument panel flashes continuously.
Troubleshooting:
The main cause of the yellow light on an electric bicycle’s instrument panel flashing continuously is a loose temperature control wire connector. In this case, inspect the motor’s temperature control wire and the controller’s temperature control wire connectors; if any are loose, secure them firmly.
Case 09: All Indicator Lights Flash After Hitting a Bump, and the Throttle Grip Does Not Respond
Fault Symptoms:
While riding, all indicator lights flash after hitting a bump, and the throttle grip does not respond.
Troubleshooting:
On a smart electric bicycle, if all indicator lights flash and the throttle grip does not respond after hitting a bump while riding, this is a self-diagnostic response and is generally considered normal.
When the bike hits a bump, the battery and terminals may become disconnected, cutting power to the entire bike. However, since the throttle is still in the maximum position, the bike enters a self-test protection mode. It will automatically exit this mode afterward, and riding is not affected. Nevertheless, you should also check whether the power terminal is securely tightened and whether the triangular power plug is deformed, which could cause poor contact.
Case 10: All Indicator Lights on the Circuit Board Are Lit, None Are Lit, or Only a Few Are Lit, but the Bike’s Riding Functions Operate Normally
Fault Symptoms:
All indicator lights on the circuit board are lit, none are lit, or only a few are lit, but the bike’s riding functions operate normally.
Troubleshooting:
On a smart electric bicycle, if all indicator lights on the circuit board are lit, none are lit, or only a few are lit, but the bike’s riding functions operate normally, this fault typically occurs randomly each time the power lock is disengaged. It is caused by a communication failure between the electric bicycle controller and the panel indicator lights, most often due to loose or worn connections in wires 1 and 2 (communication function) of the wiring harness. Inspect the connection wires and ensure they are securely connected to resolve the issue.
