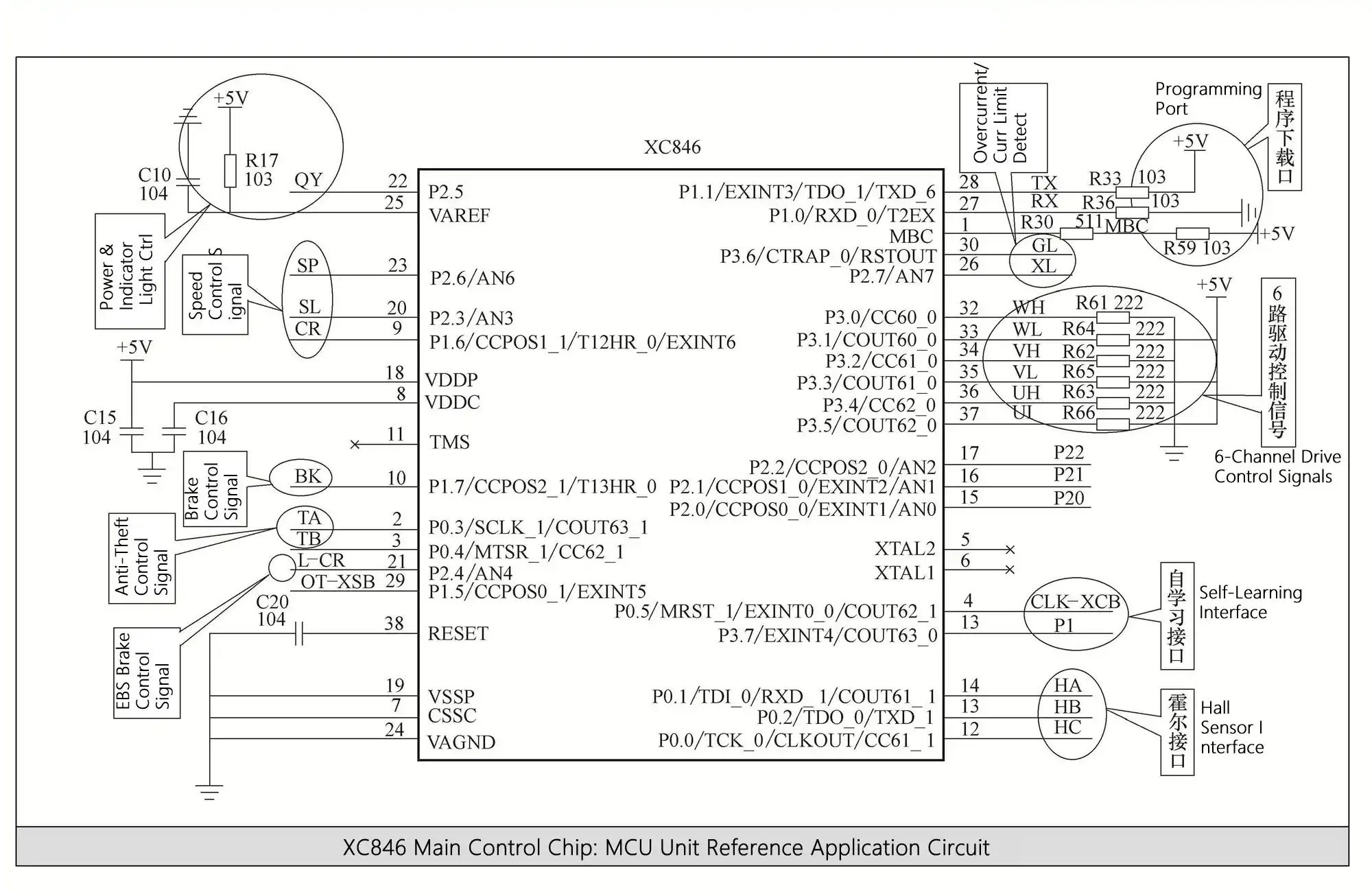

Figure 1: Reference application circuit for MCU unit of XC846 controller main control chip

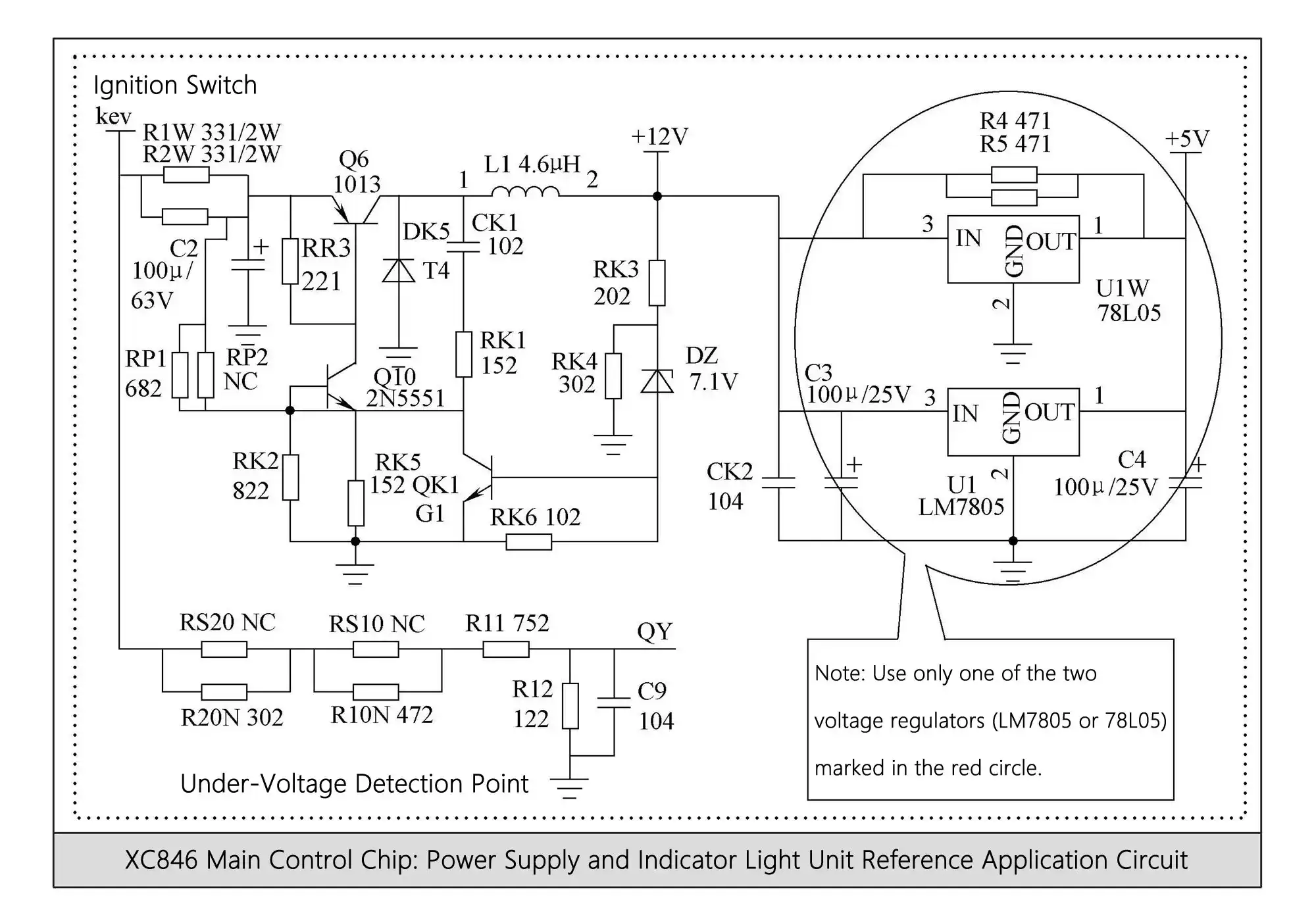

Figure 2: Reference application circuit for power supply and indicator lamp unit of XC846 controller main control chip

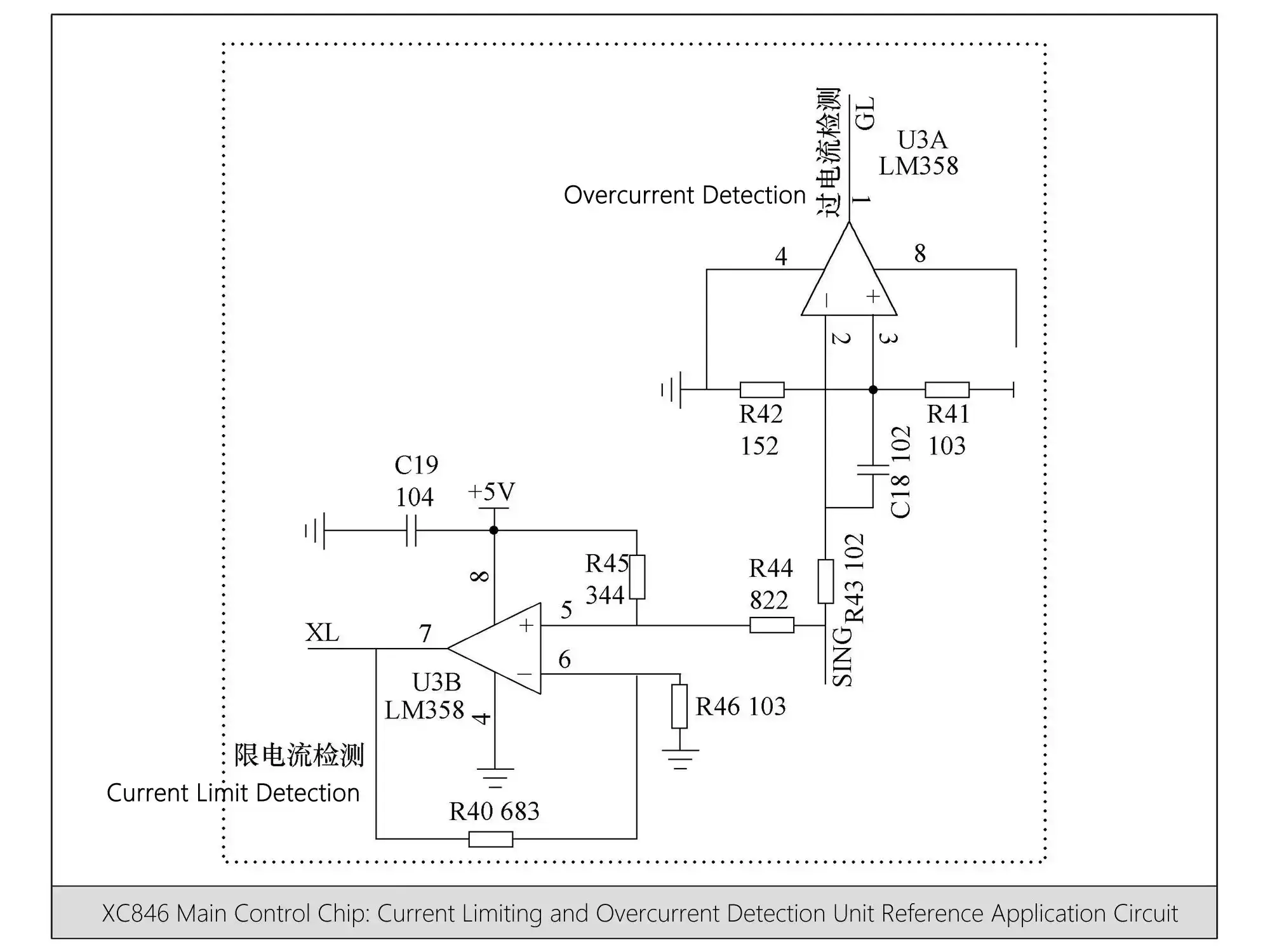

Figure 3: Reference application circuit for current limiting and overcurrent detection unit of XC846 controller main control chip

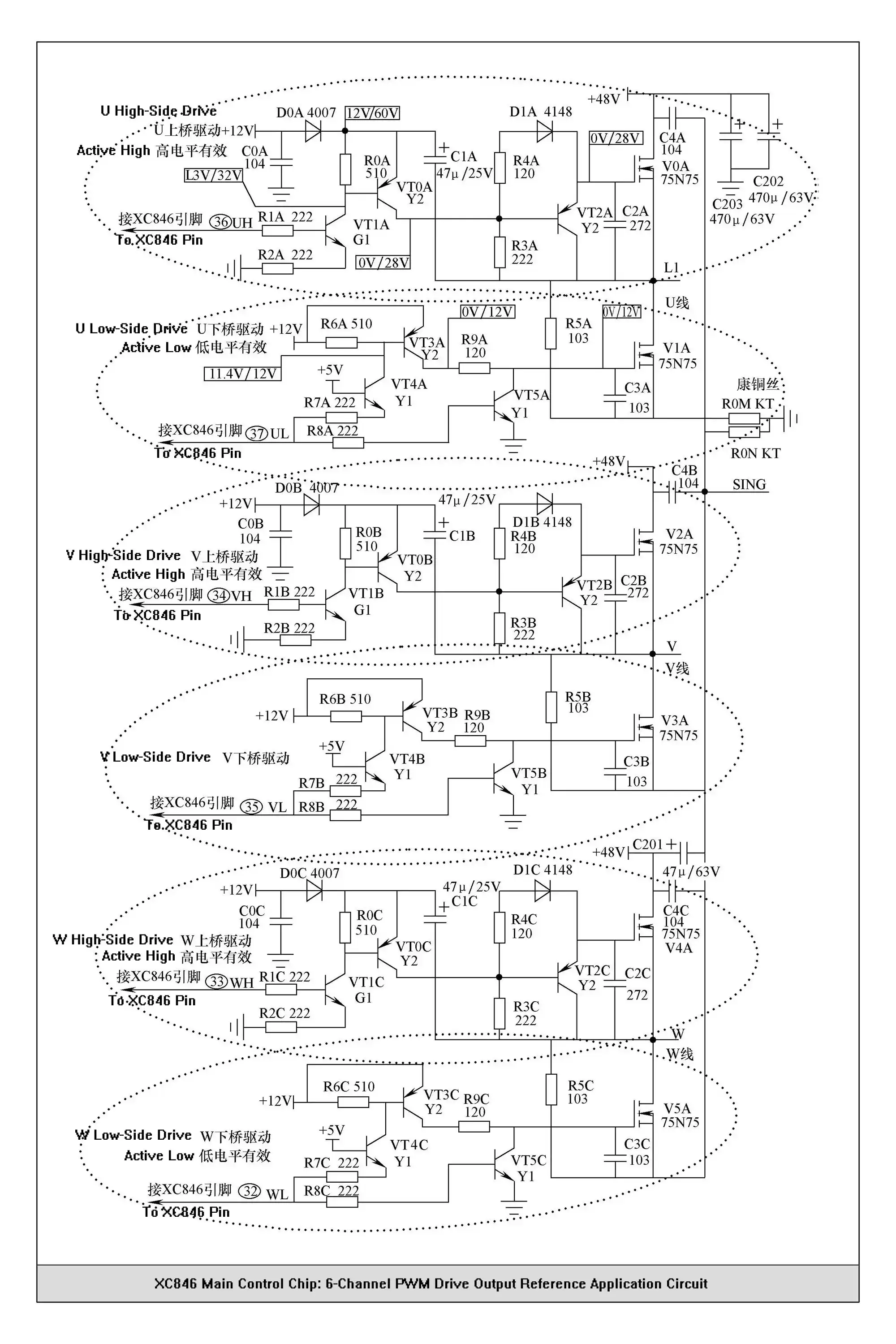

Figure 4: Reference application circuit for 6-channel PWM drive output of XC846 controller main control chip
For more accurate circuit diagrams, please contact us for the full version.
