MC33033 Main Control Chip Reference Application Circuit

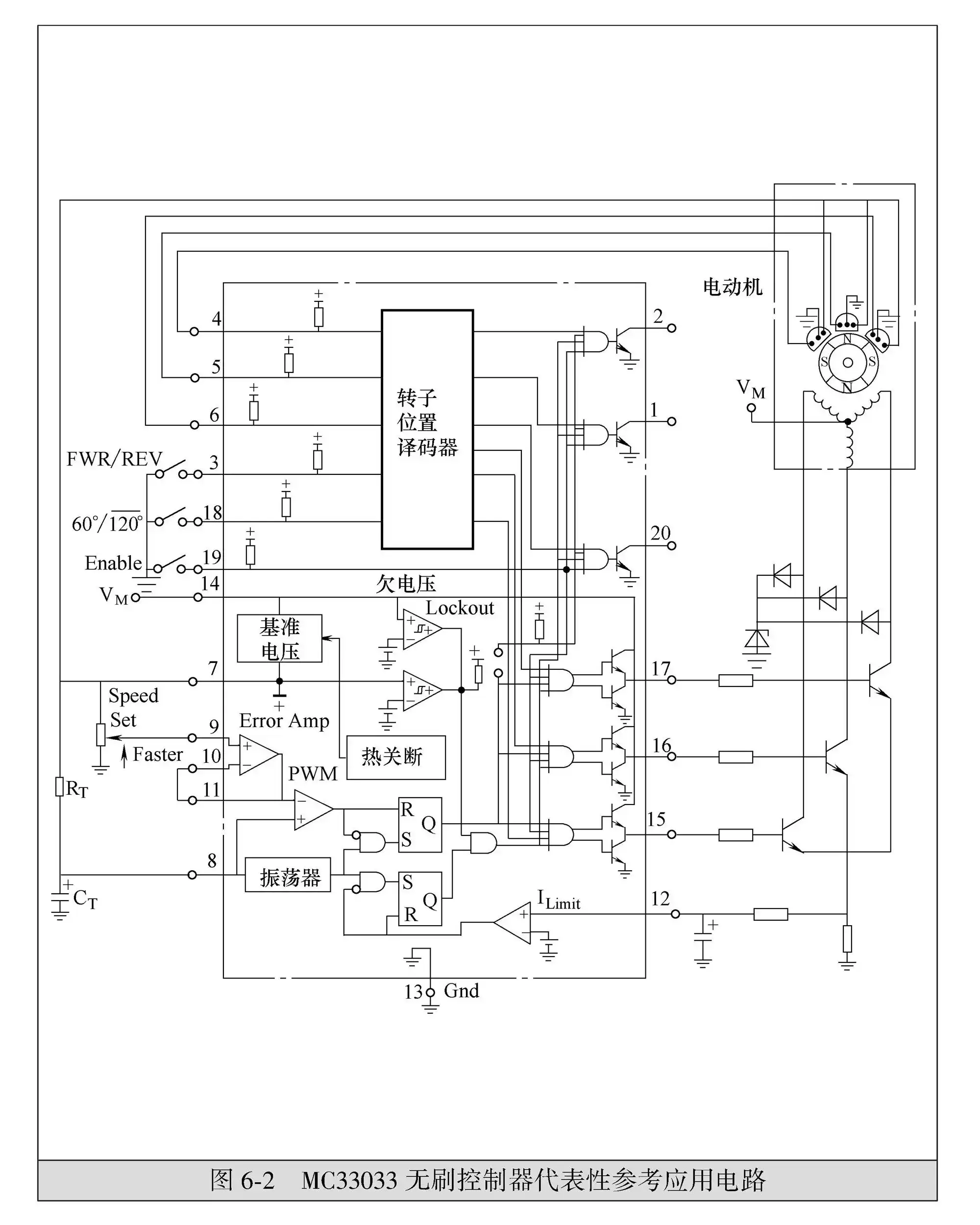

Figure 1: Representative reference application circuit for MC33033 brushless controller

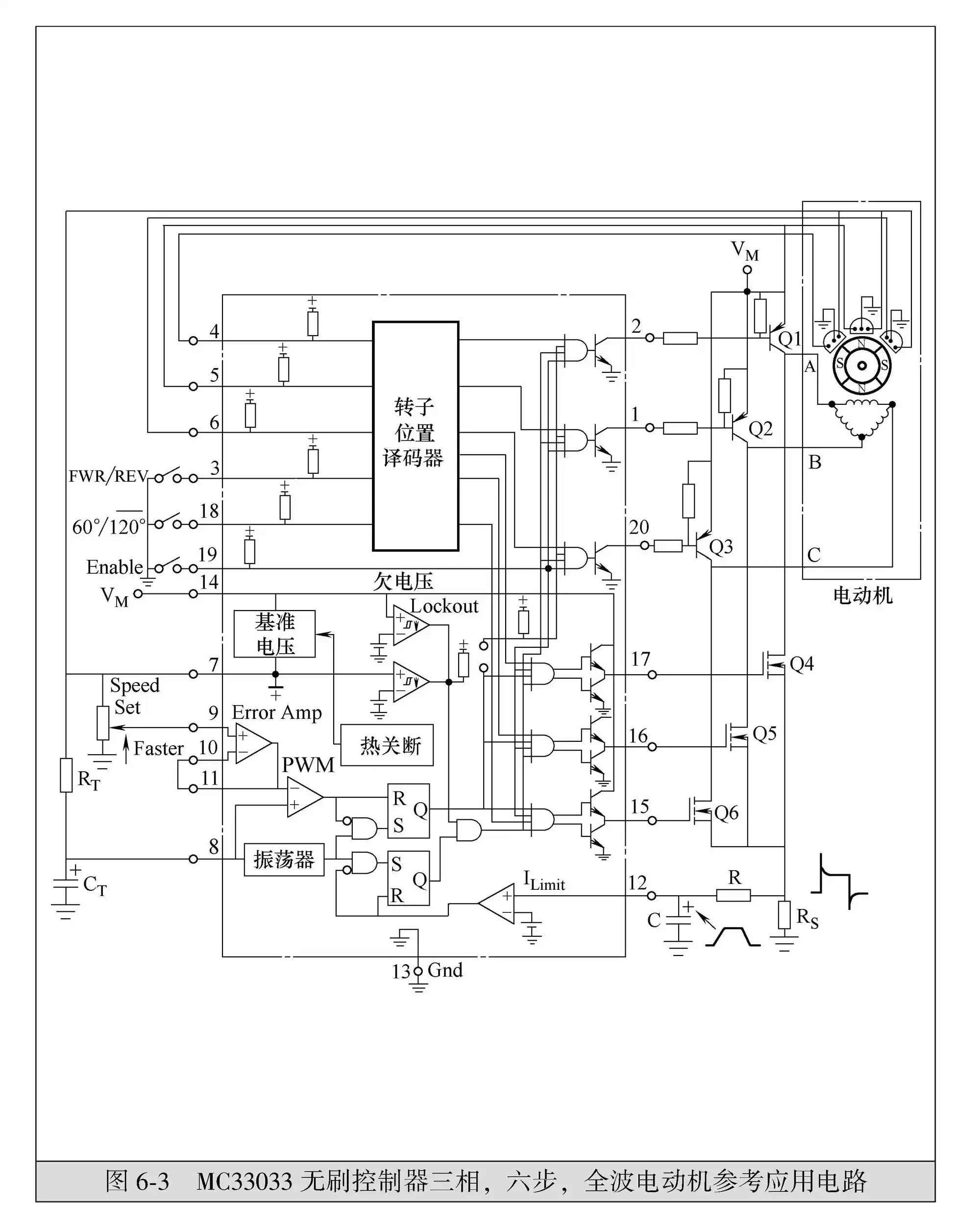

Figure 2: Reference application circuit for MC33033 brushless controller with three-phase, six-step, full-wave motor

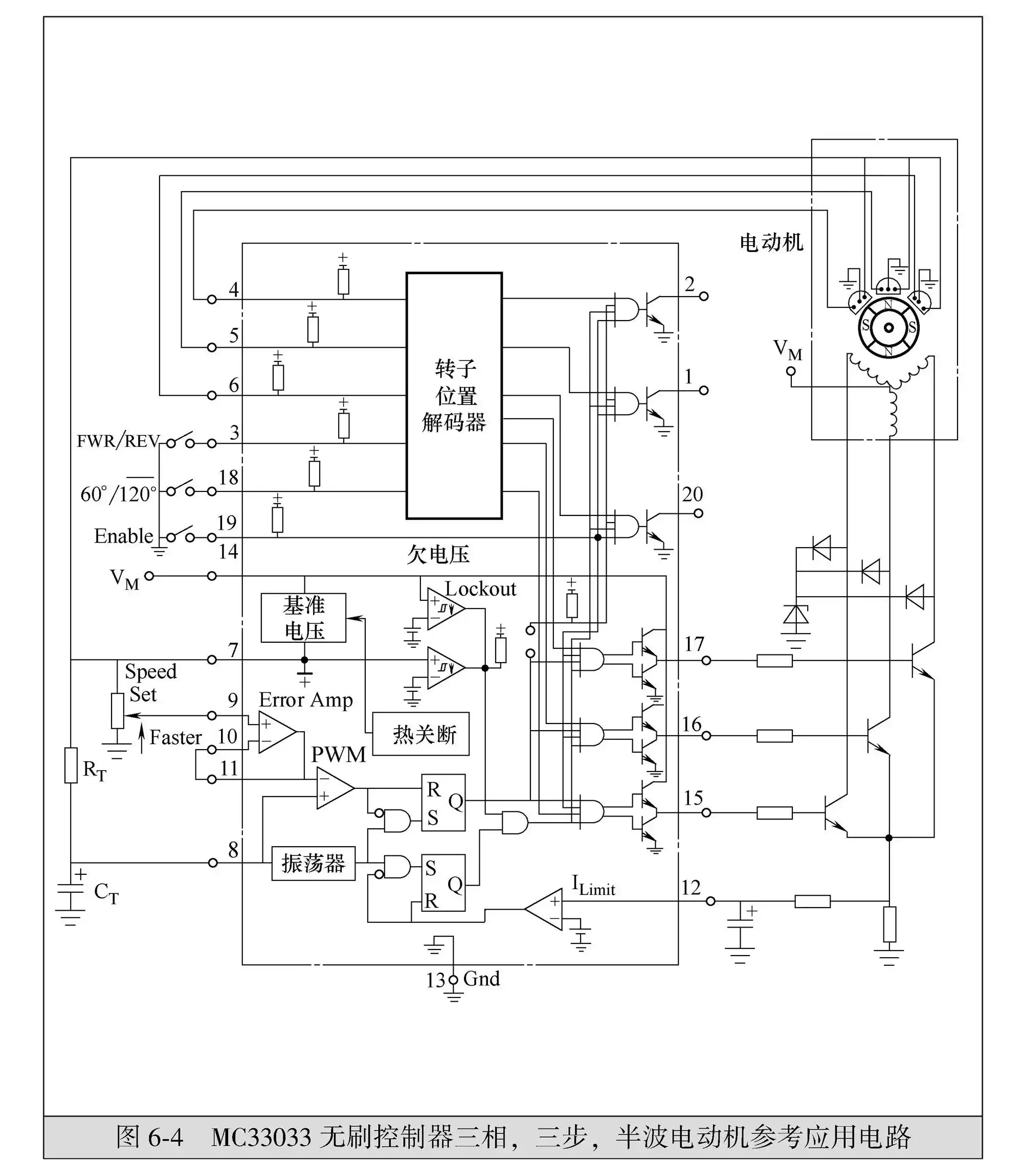

Figure 3: Reference application circuit for MC33033 brushless controller with three-phase, three-step, half-wave motor

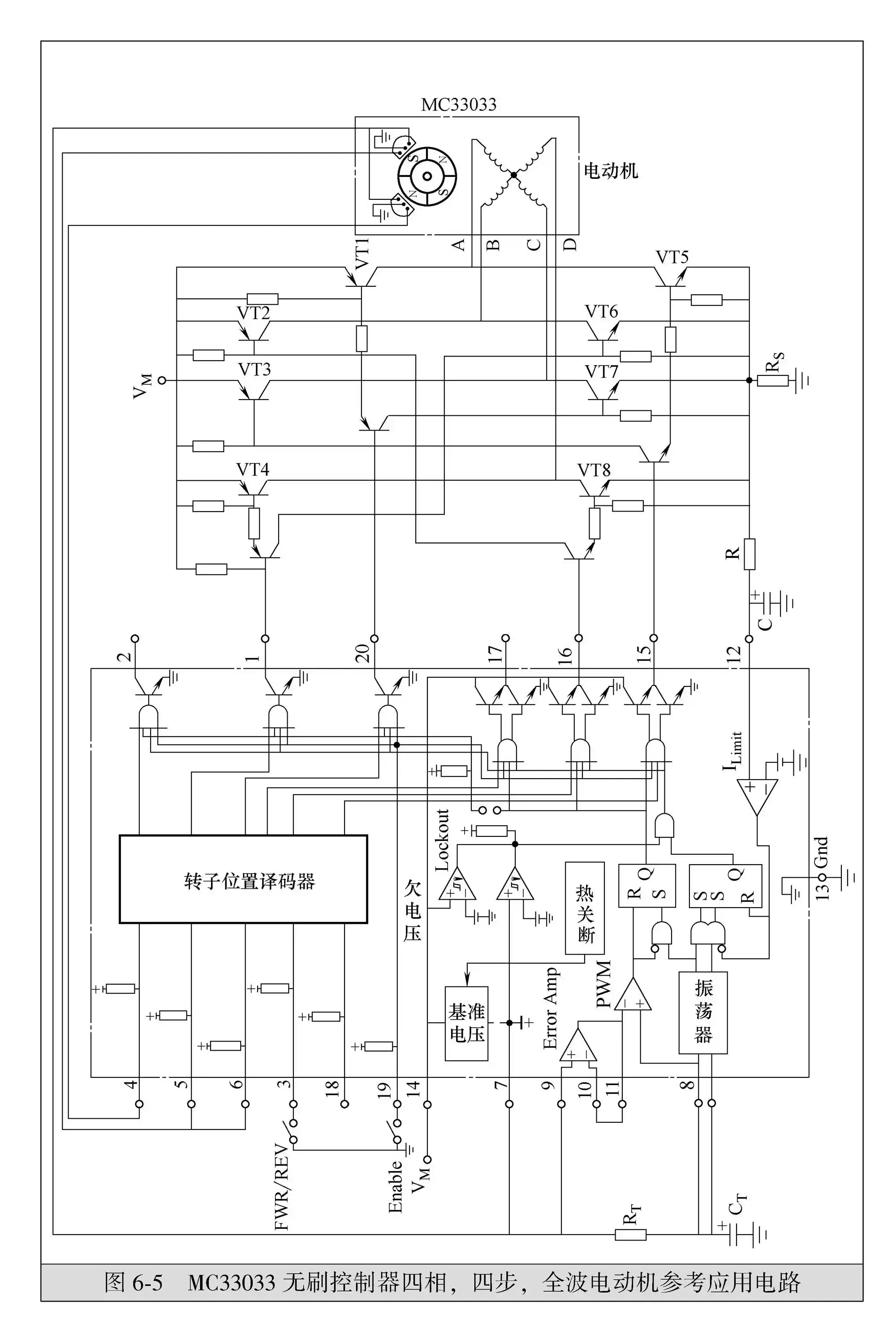

Figure 4: Reference application circuit for MC33033 brushless controller with four-phase, four-step, full-wave motor

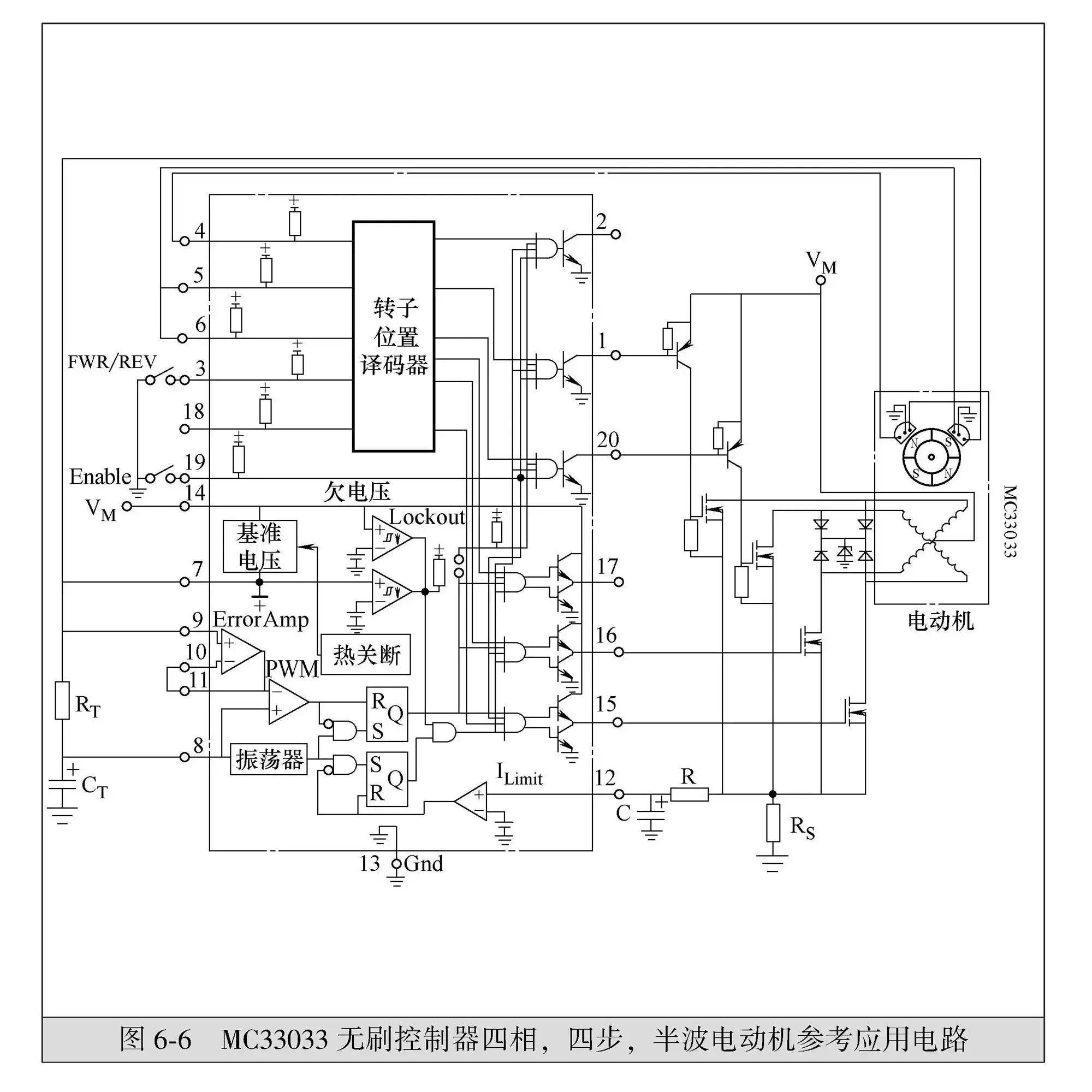

Figure 5: Reference application circuit for MC33033 brushless controller with four-phase, four-step, half-wave motor

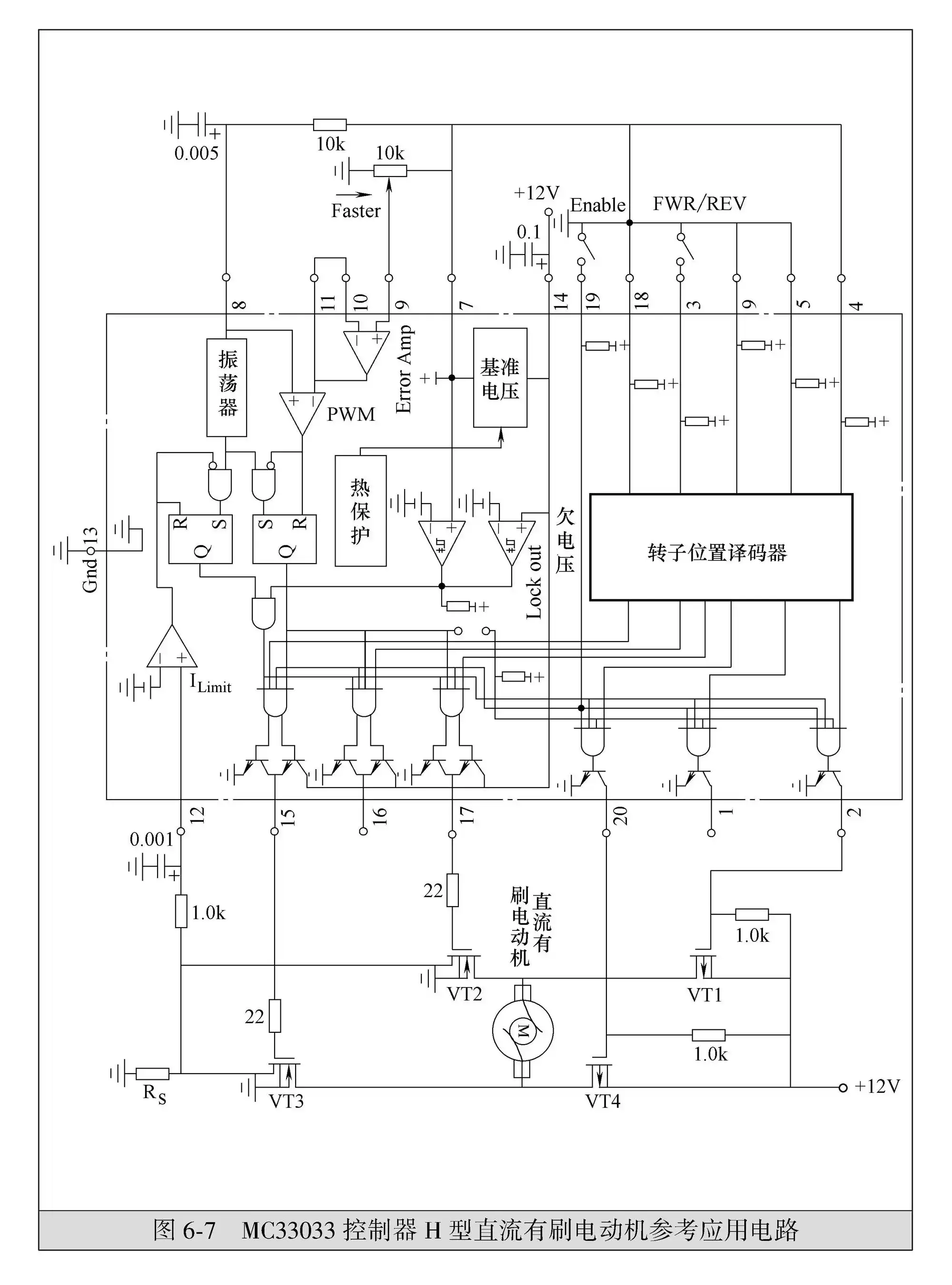

Figure 6: Reference application circuit for MC33033 controller with H-bridge DC brushed motor

For more accurate circuit diagrams, please contact us for the full version.
