Charger Circuit Diagram Using UC3842

author
Written by hexjlxm

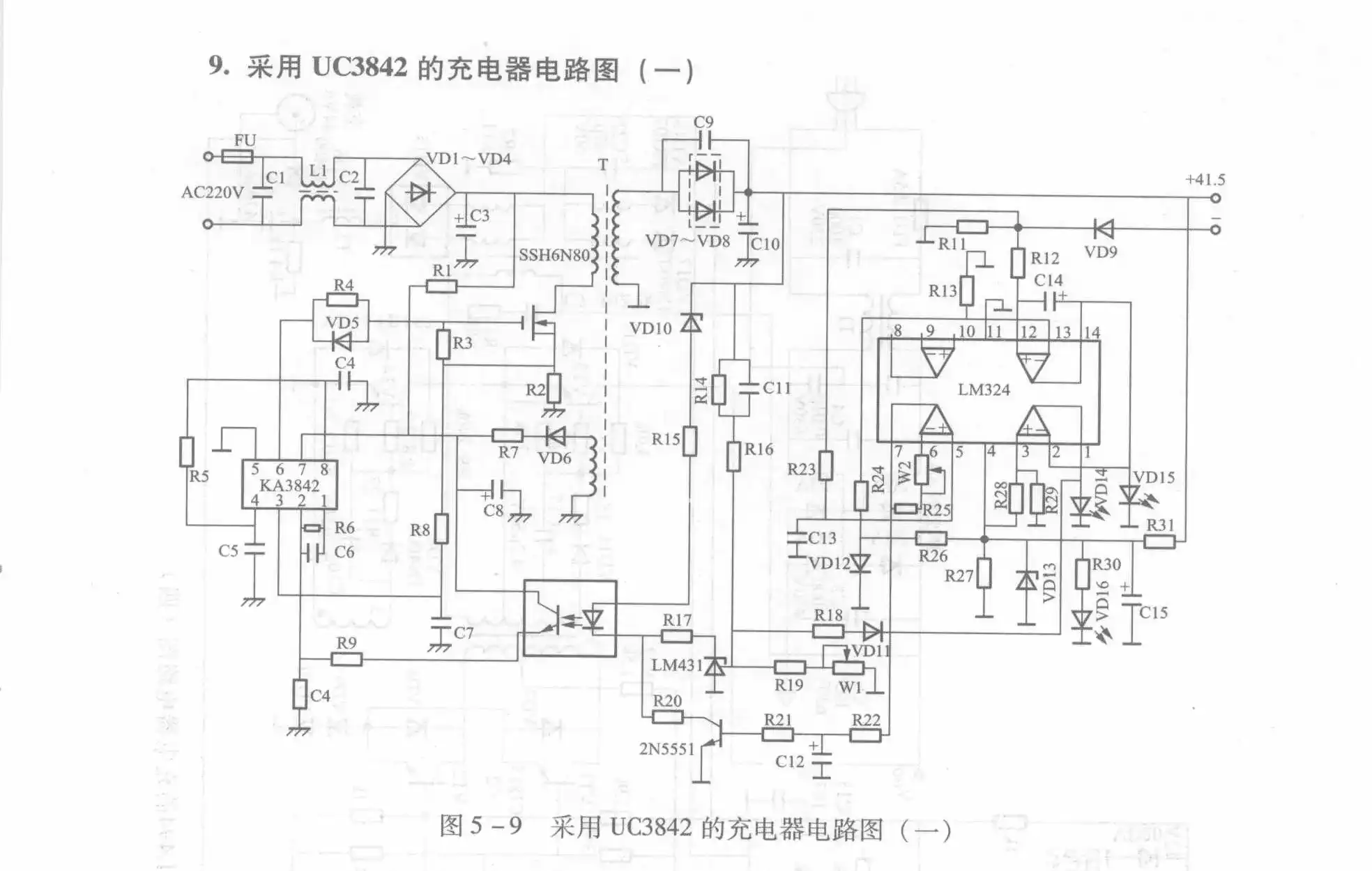

Charger Circuit Diagram Using UC3842 (Part 1)

Charger Circuit Diagram Using UC3842 (Part 1)

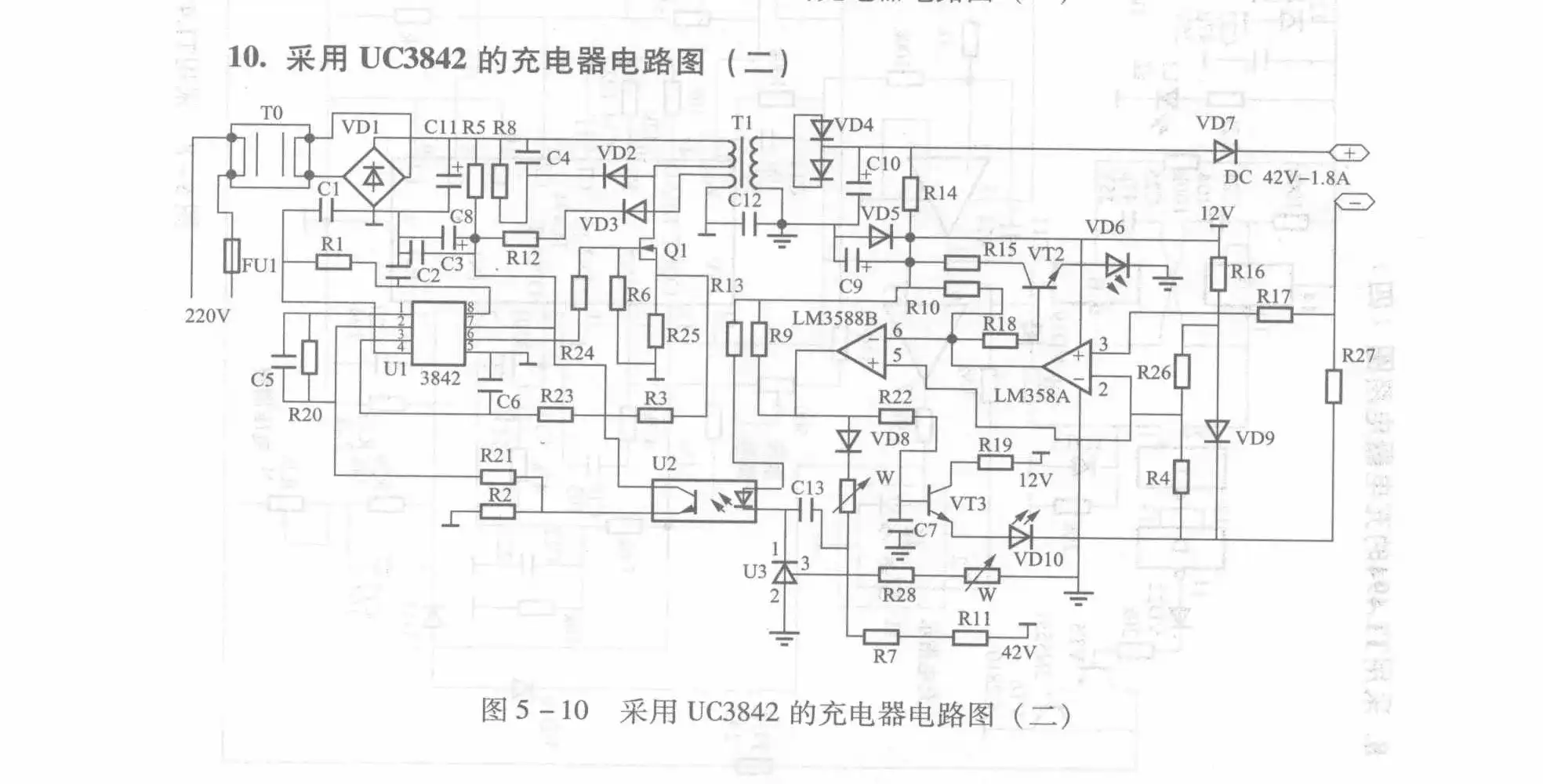

Charger Circuit Diagram Using UC3842 (Part 2)

Charger Circuit Diagram Using UC3842 (Part 2)

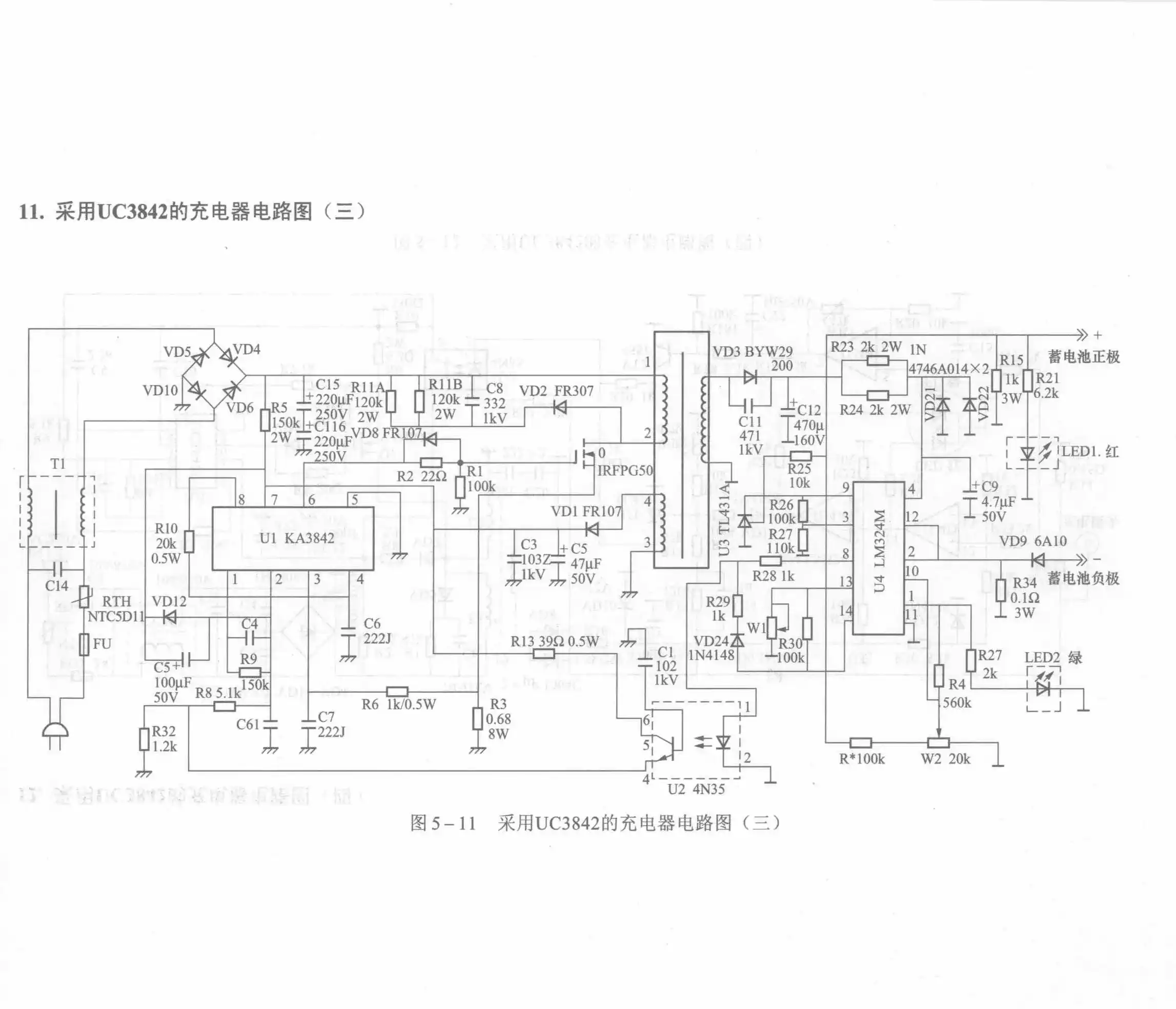

Charger Circuit Diagram Using UC3842 (Part 3)

Charger Circuit Diagram Using UC3842 (Part 3)

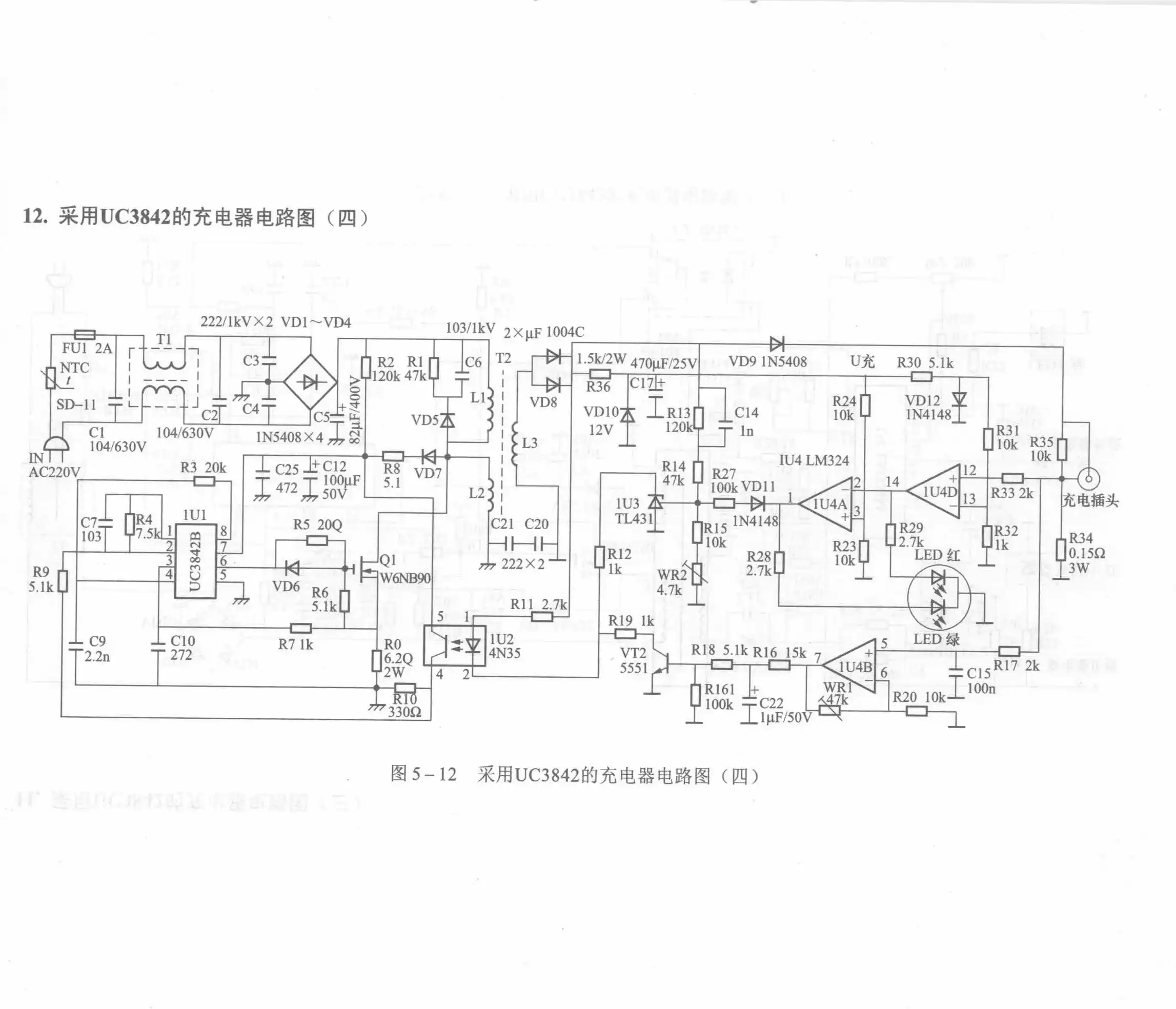

Charger Circuit Diagram Using UC3842 (Part 4)

Charger Circuit Diagram Using UC3842 (Part 4)

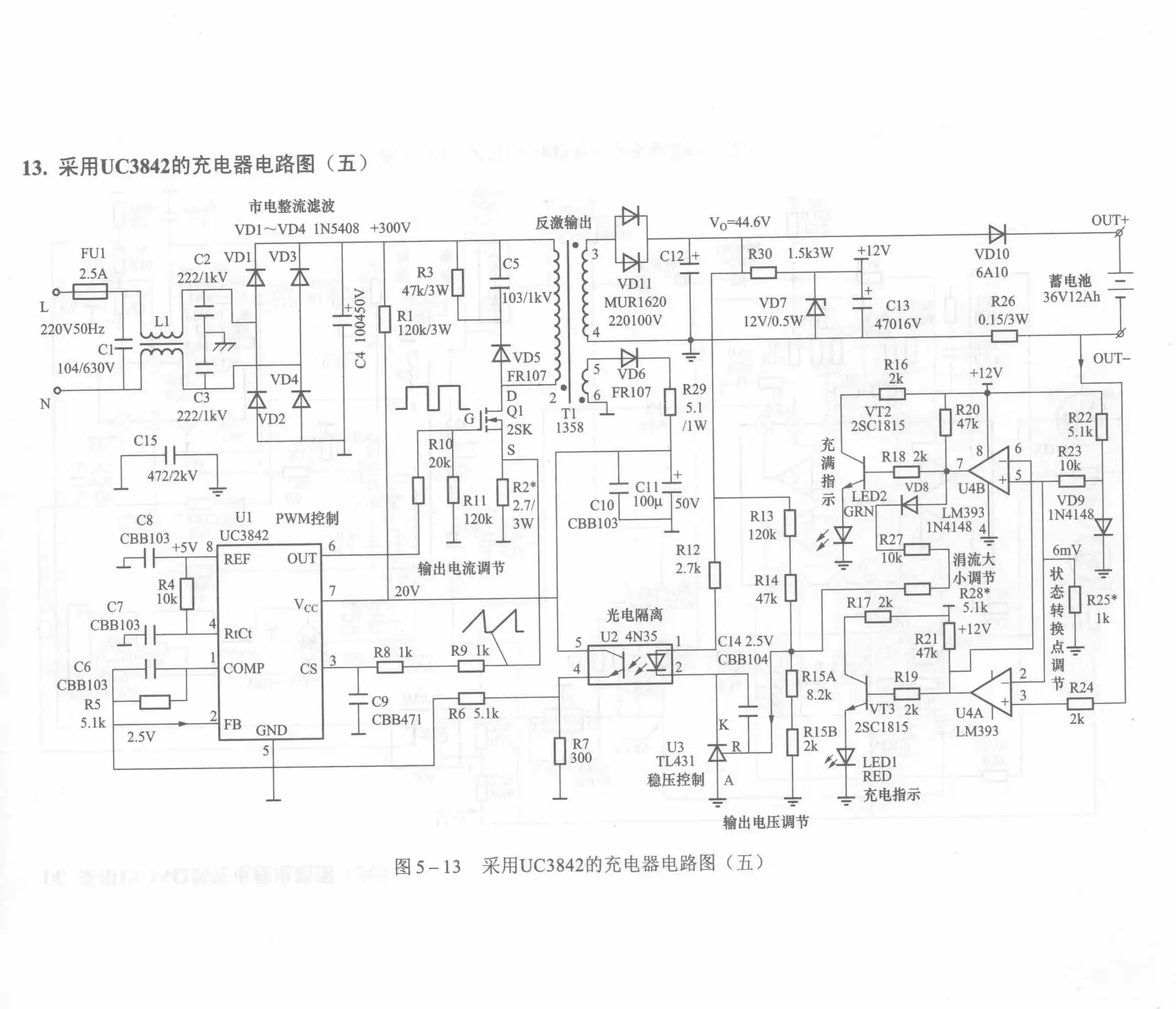

Charger Circuit Diagram Using UC3842 (Part 5)

Charger Circuit Diagram Using UC3842 (Part 5)

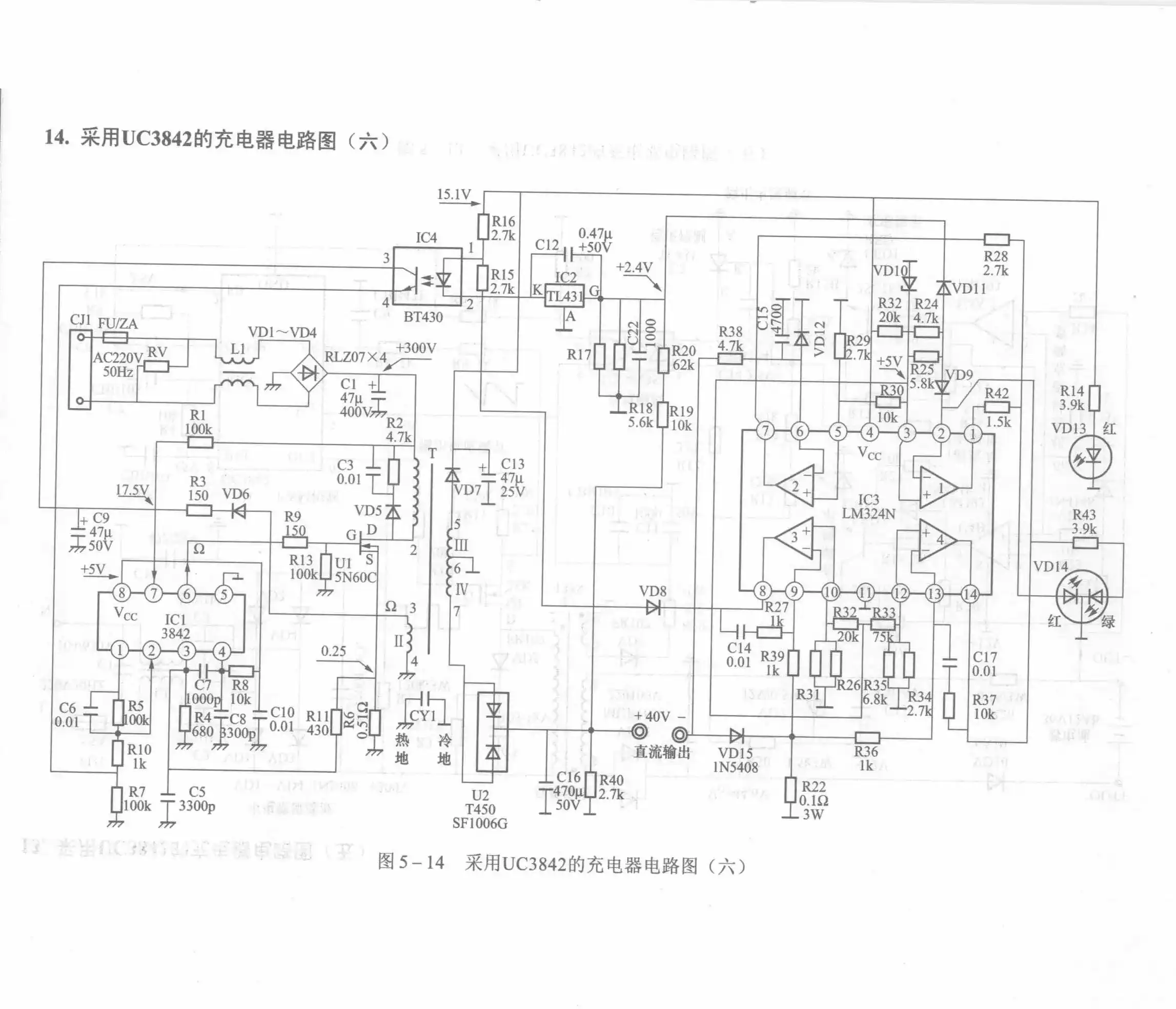

Charger Circuit Diagram Using UC3842 (Part 6)

Charger Circuit Diagram Using UC3842 (Part 6)

For more accurate circuit diagrams, please contact us for the full version.
