Charger Circuit Diagram Using TL494

author
Written by hexjlxm

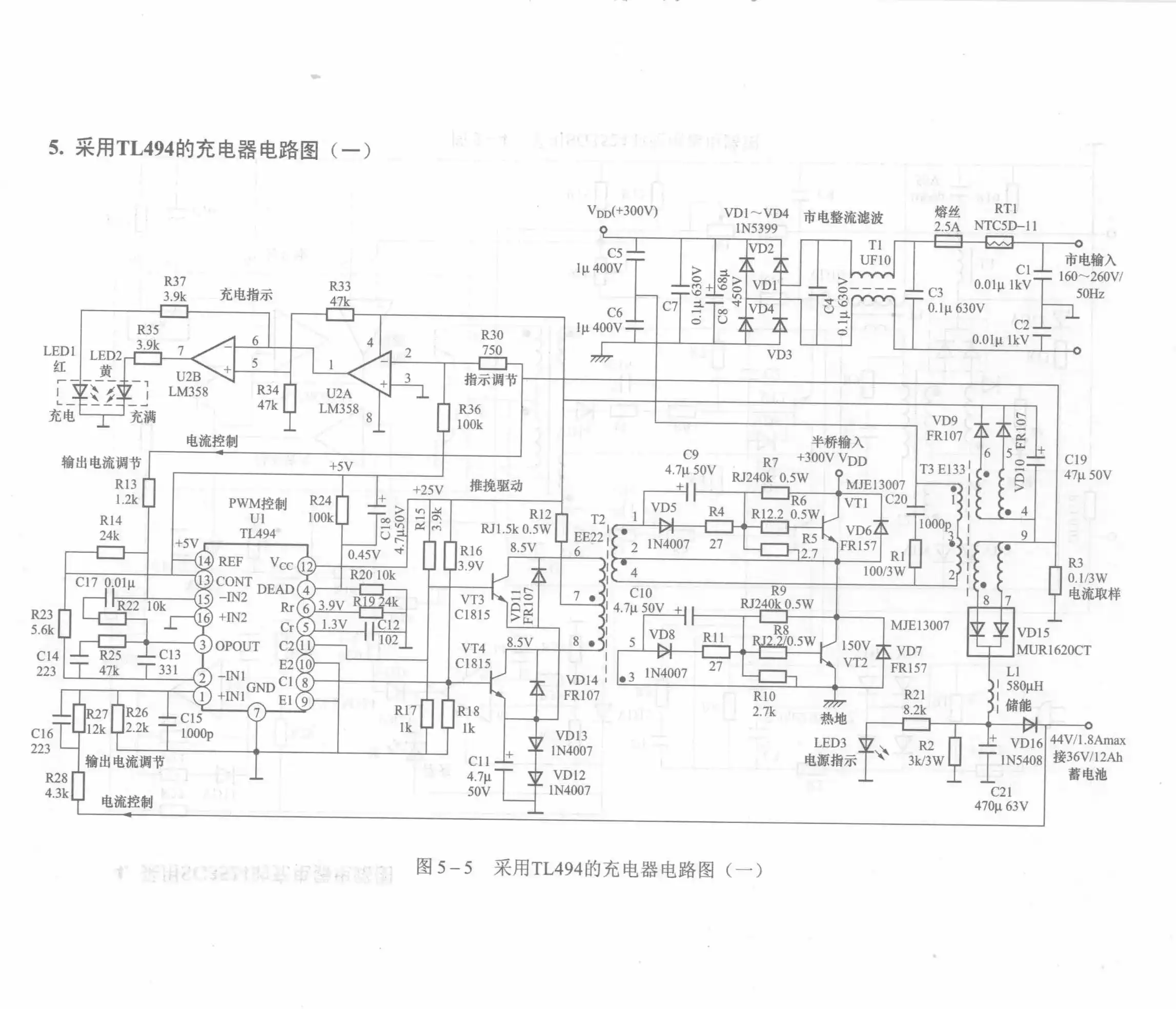

Charger Circuit Diagram Using TL494 (Part 1)

Charger Circuit Diagram Using TL494 (Part 1)

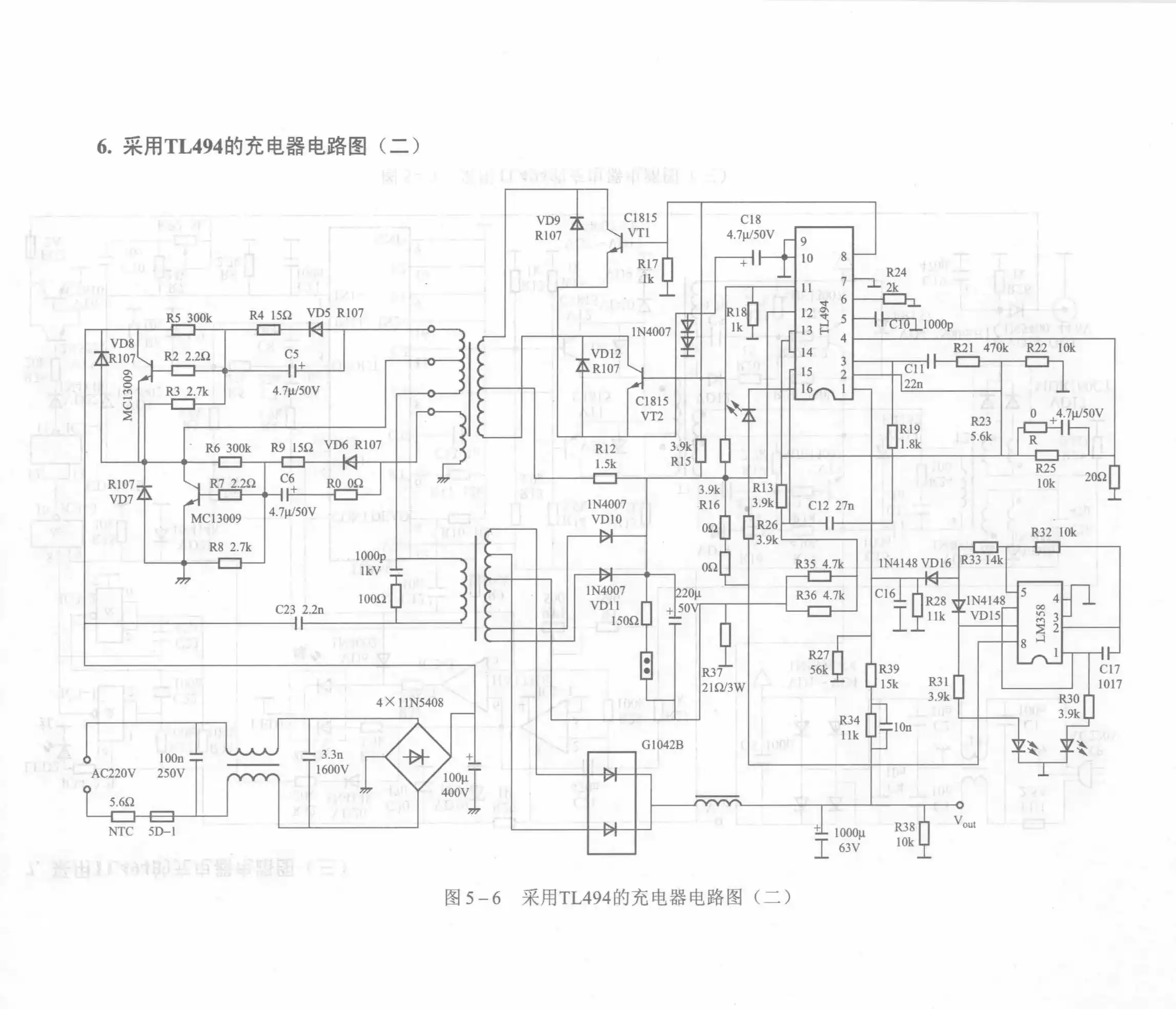

Charger Circuit Diagram Using TL494 (Part 2)

Charger Circuit Diagram Using TL494 (Part 2)

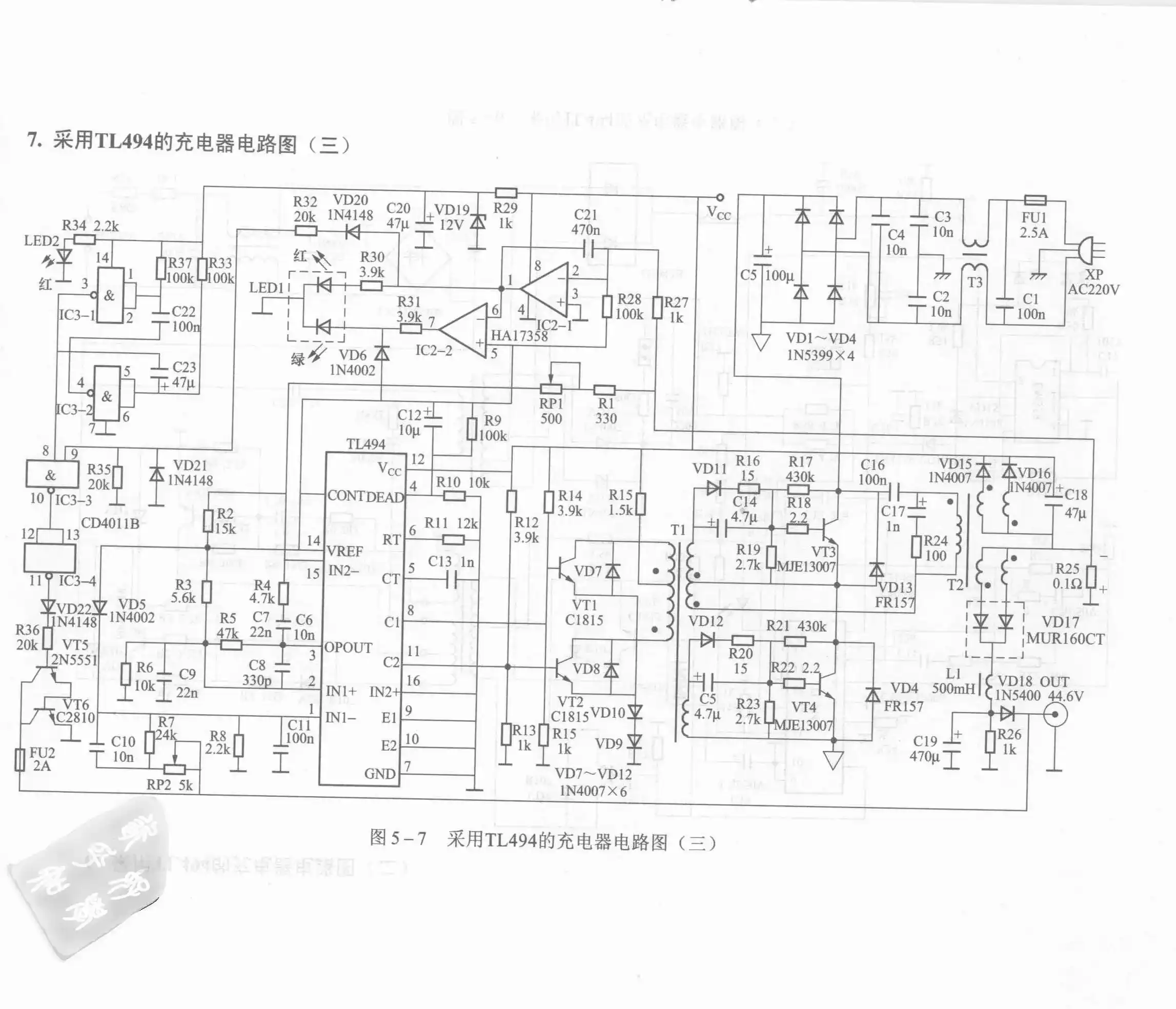

Charger Circuit Diagram Using TL494 (Part 3)

Charger Circuit Diagram Using TL494 (Part 3)

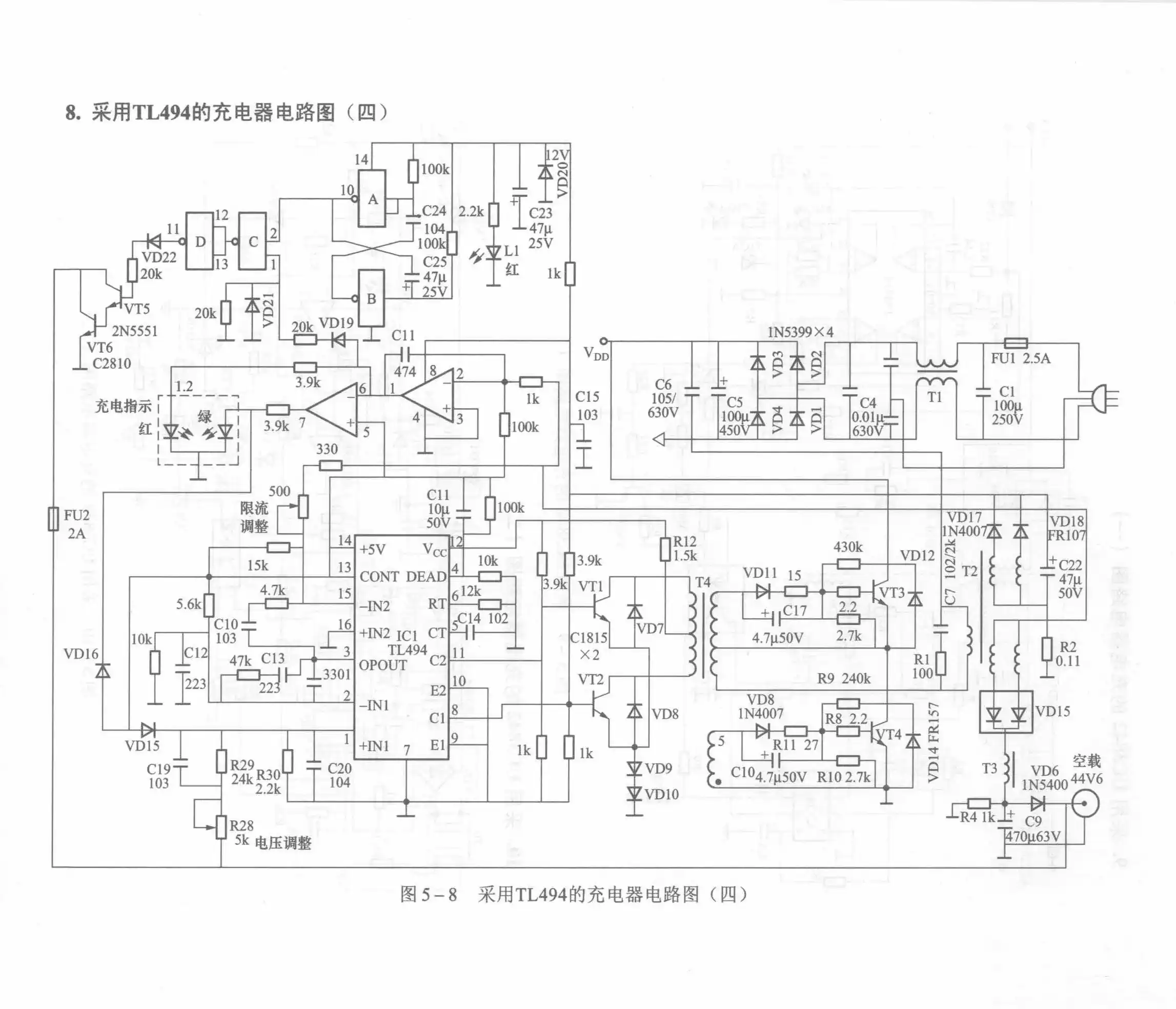

Charger Circuit Diagram Using TL494 (Part 4)

Charger Circuit Diagram Using TL494 (Part 4)

For more accurate circuit diagrams, please contact us for the full version.
