Tianneng IN-IC 2820 Smart Charger Circuit Diagram

author
Written by hexjlxm

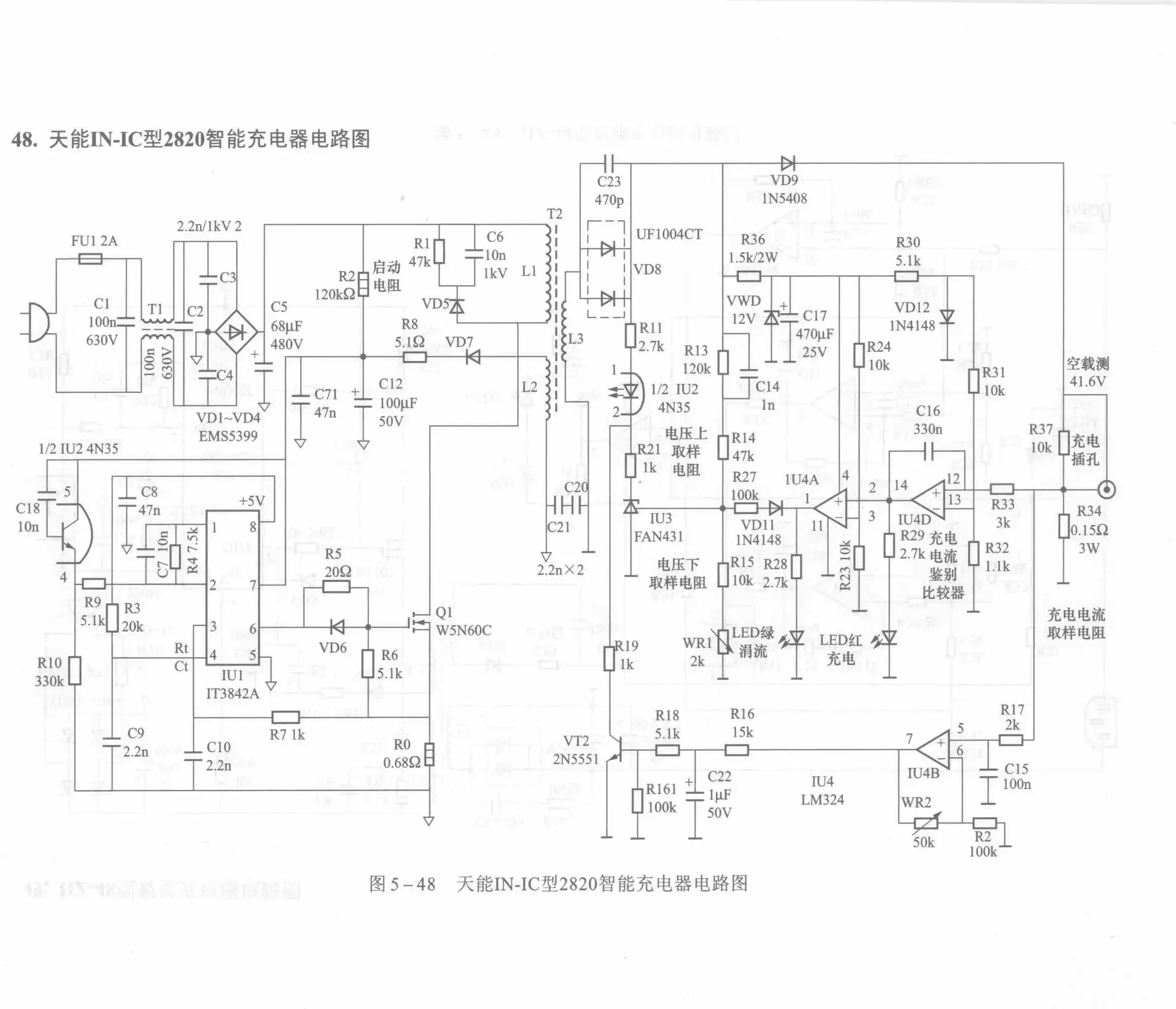

Tianneng IN-IC 2820 Smart Charger Circuit Diagram

Tianneng IN-IC 2820 Smart Charger Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.

Nanjing Xipuer SP362 Charger Circuit Diagram

Accurate schematic for Nanjing Xipuer SP362 chargers. A precise reference for component-level repair.

HZ-48 Smart Charger Circuit Diagram

Detailed circuit for HZ-48 smart chargers. Trace electrical paths to fix charging and cutoff faults.
