HZ-48 Smart Charger Circuit Diagram

author
Written by hexjlxm

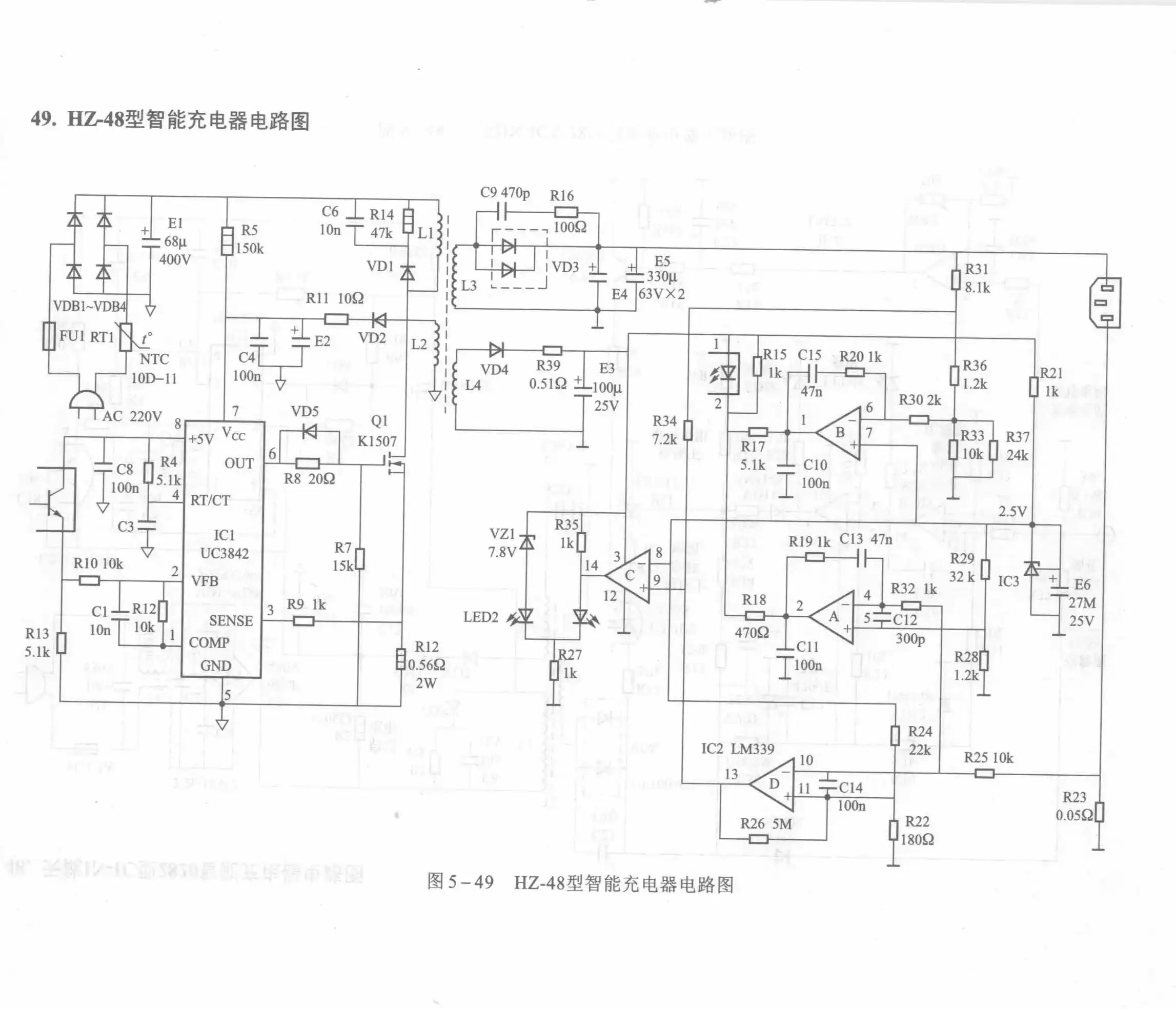

HZ-48 Smart Charger Circuit Diagram

HZ-48 Smart Charger Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.

Tianneng IN-IC 2820 Smart Charger Circuit Diagram

Advanced charger wiring diagram for Tianneng IN-IC series. Essential for diagnosing smart control failures.

Fast DZ-2-48 Smart Fully Automatic Charger Circuit Diagram

Comprehensive schematic for Fast DZ-2-48 chargers. Ideal for understanding fully automatic charging logic.
