Xinlong Electric Tricycle Circuit Diagram

author
Written by hexjlxm

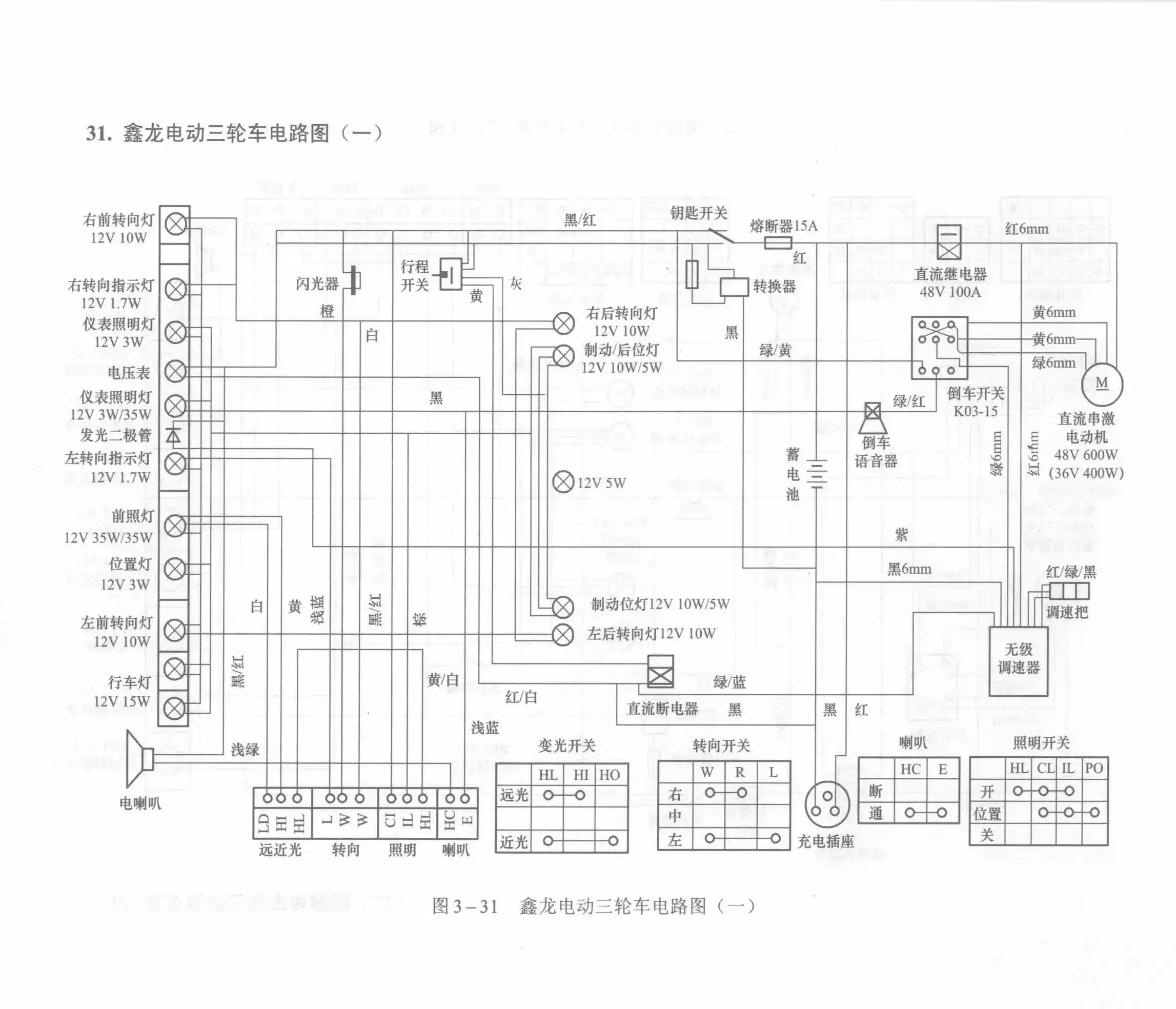

Xinlong Electric Tricycle Circuit Diagram (Part 1)

Xinlong Electric Tricycle Circuit Diagram (Part 1)

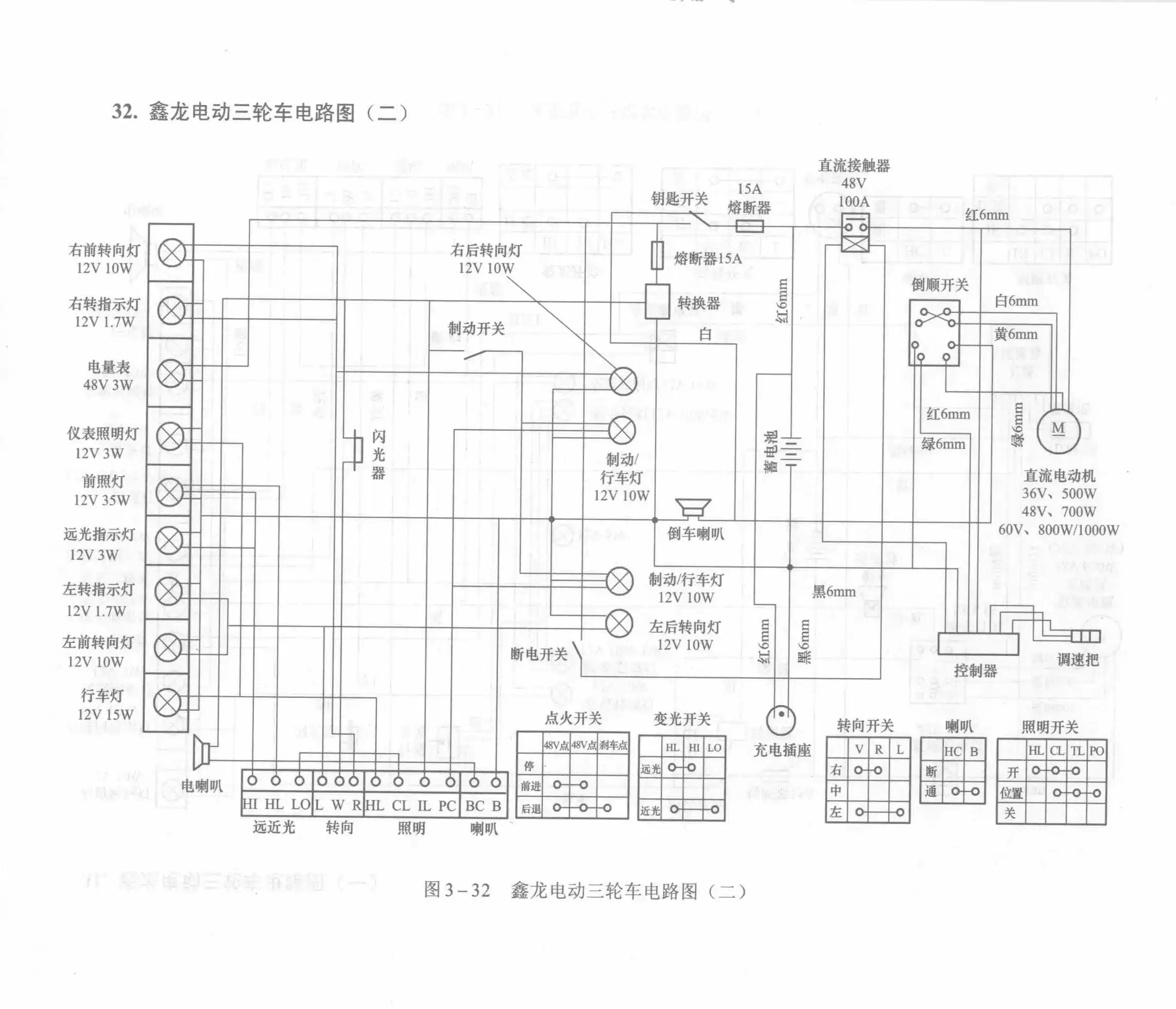

Xinlong Electric Tricycle Circuit Diagram (Part 2)

Xinlong Electric Tricycle Circuit Diagram (Part 2)

For more accurate circuit diagrams, please contact us for the full version.
