Xiaolingyang SMACONTR Brushed Controller Circuit Diagram

author
Written by hexjlxm

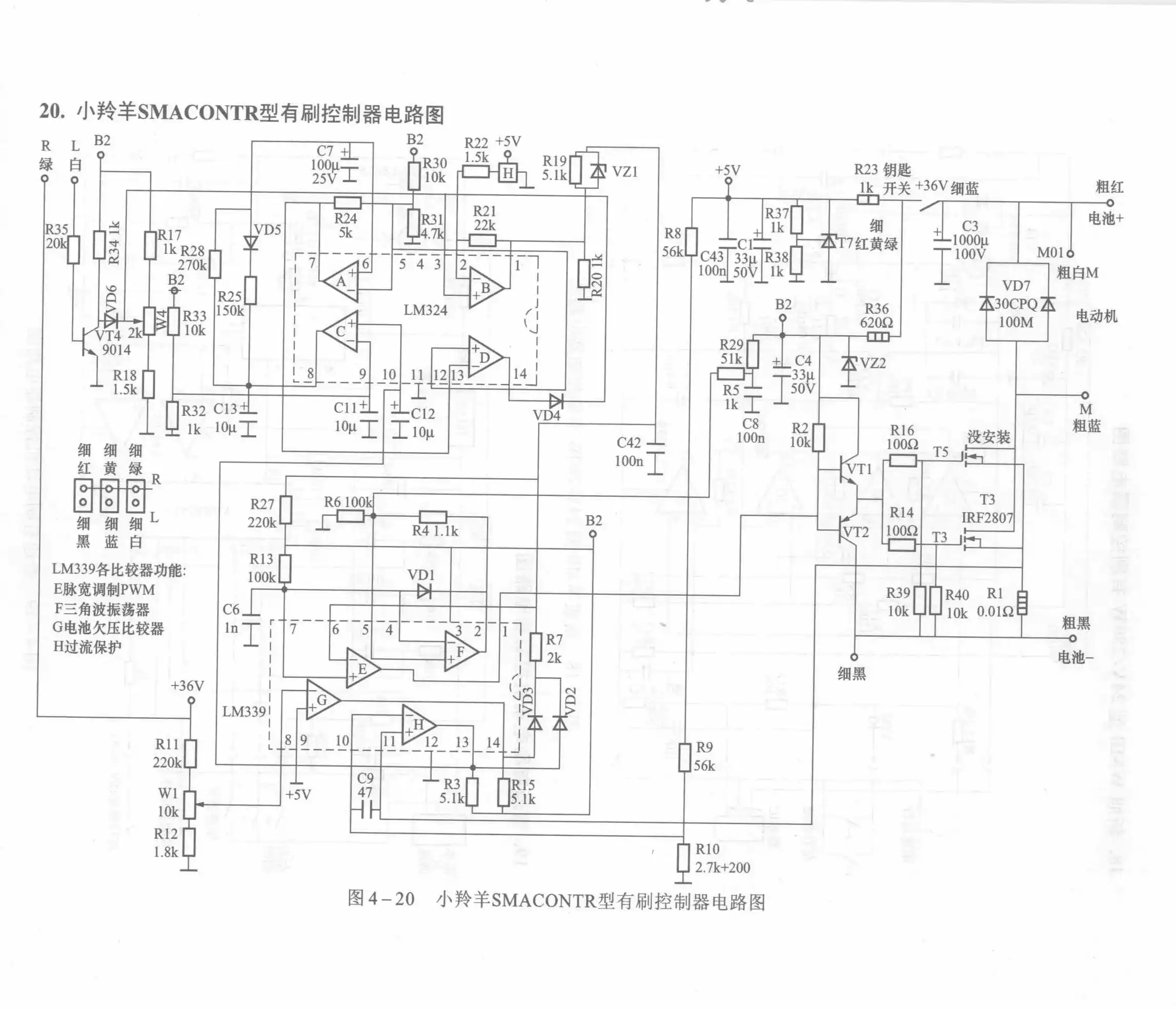

Xiaolingyang SMACONTR Brushed Controller Circuit Diagram

Xiaolingyang SMACONTR Brushed Controller Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.

Standard Brushed Motor Controller Circuit Diagram

Standard layout for generic brushed controllers used in various e-bikes. A helpful reference for general troubleshoot...

Xiaolingyang SPMBC Brushed Motor Controller Circuit Diagram

Precise schematic for Xiaolingyang SPMBC brushed controllers. Identify faulty components quickly with this clear diag...
