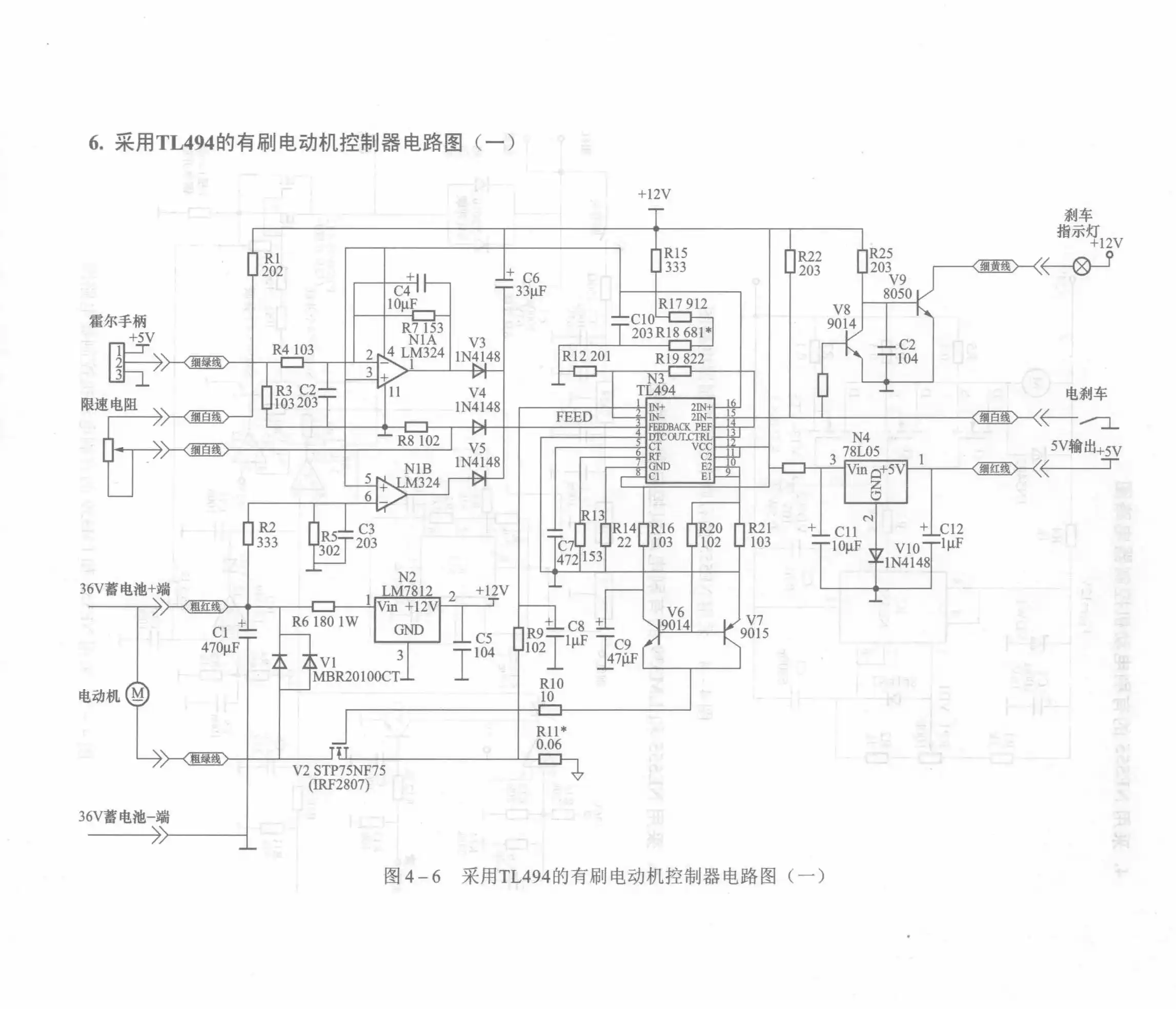

Brushed Motor Controller Circuit Diagram Using TL494 (Part 1)

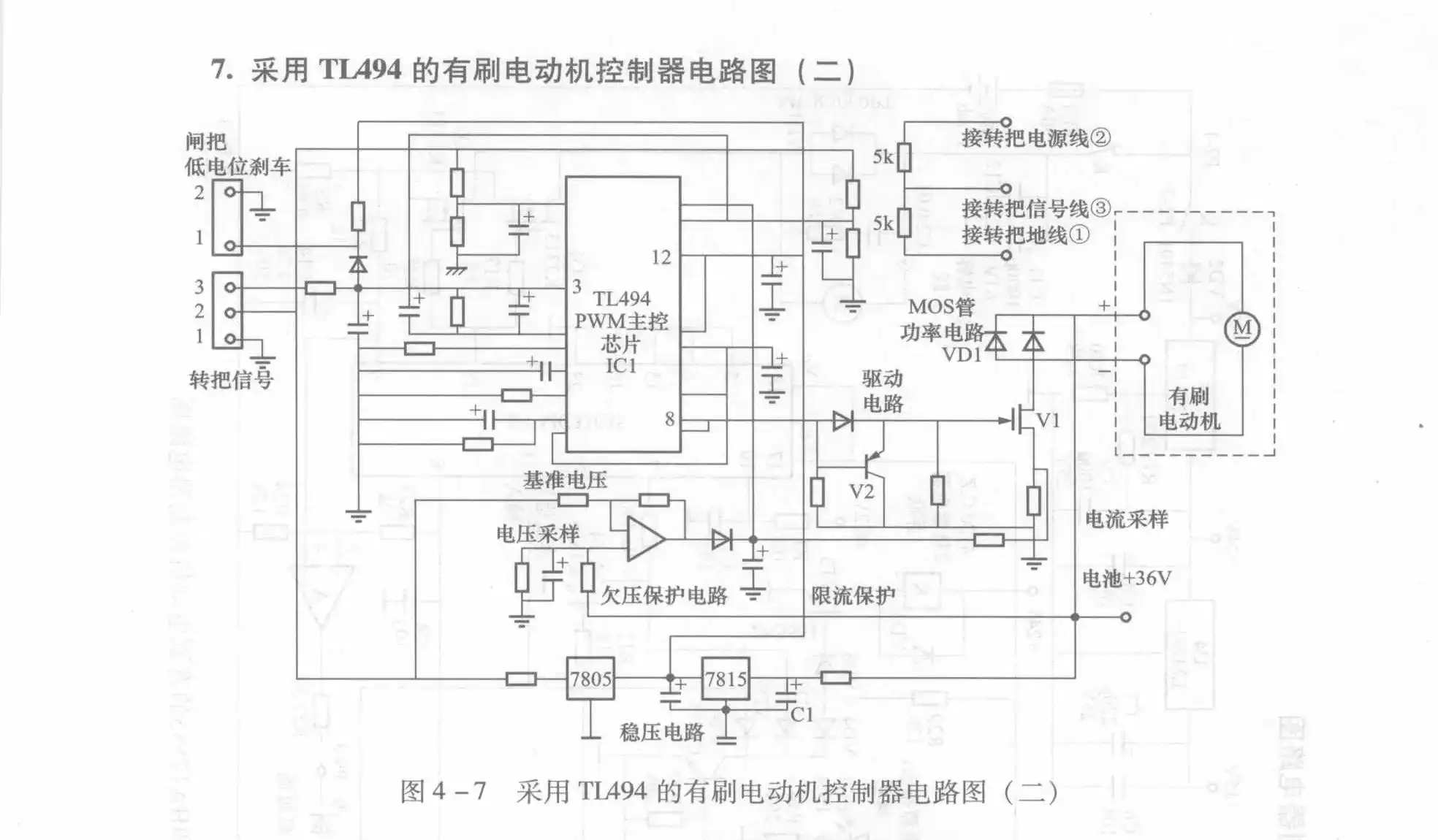

Brushed Motor Controller Circuit Diagram Using TL494 (Part 2)
For more accurate circuit diagrams, please contact us for the full version.
Brushed Motor Controller Circuit Diagram Using TL494
Written by hexjlxm
