Sanyou SAYOZHD2 High-Power Brushed Controller Circuit Diagram

author
Written by hexjlxm

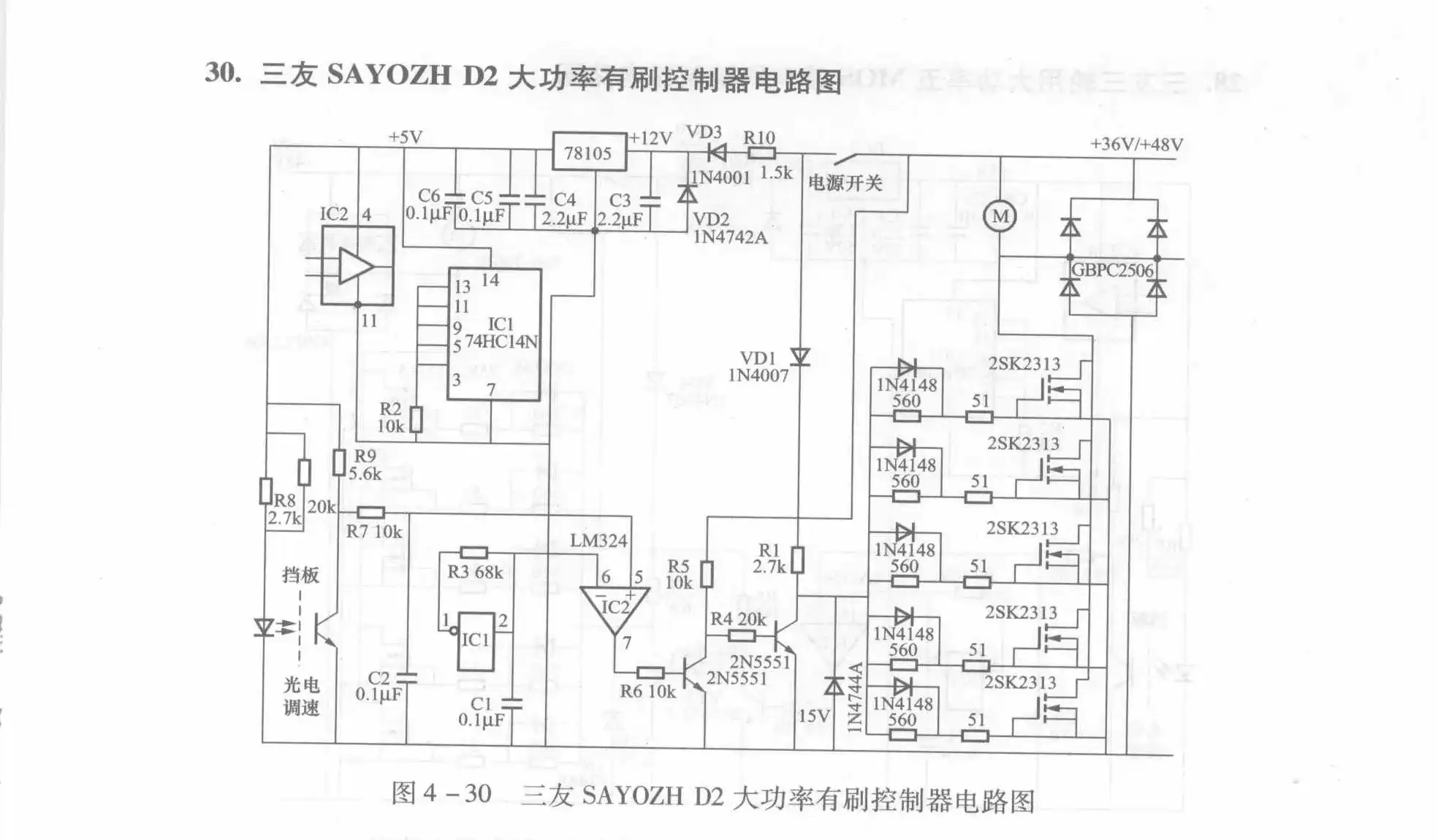

Sanyou SAYOZHD2 High-Power Brushed Controller Circuit Diagram

Sanyou SAYOZHD2 High-Power Brushed Controller Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.
