Sanyou Tricycle High-Power 5-MOSFET Brushed Controller Circuit Diagram

author
Written by hexjlxm

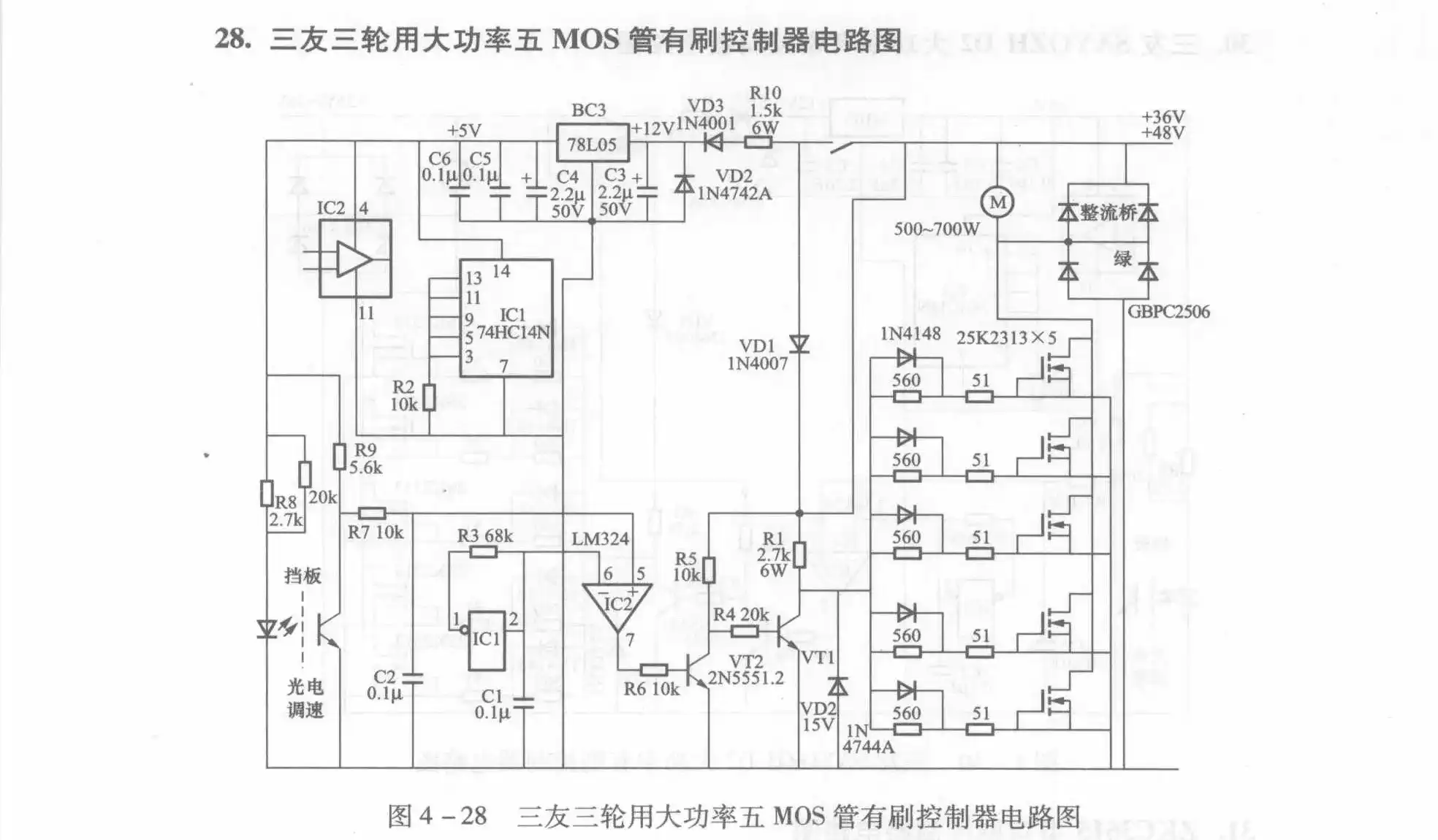

Sanyou Tricycle High-Power 5-MOSFET Brushed Controller Circuit Diagram

Sanyou Tricycle High-Power 5-MOSFET Brushed Controller Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.
