Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller

author
Written by hexjlxm

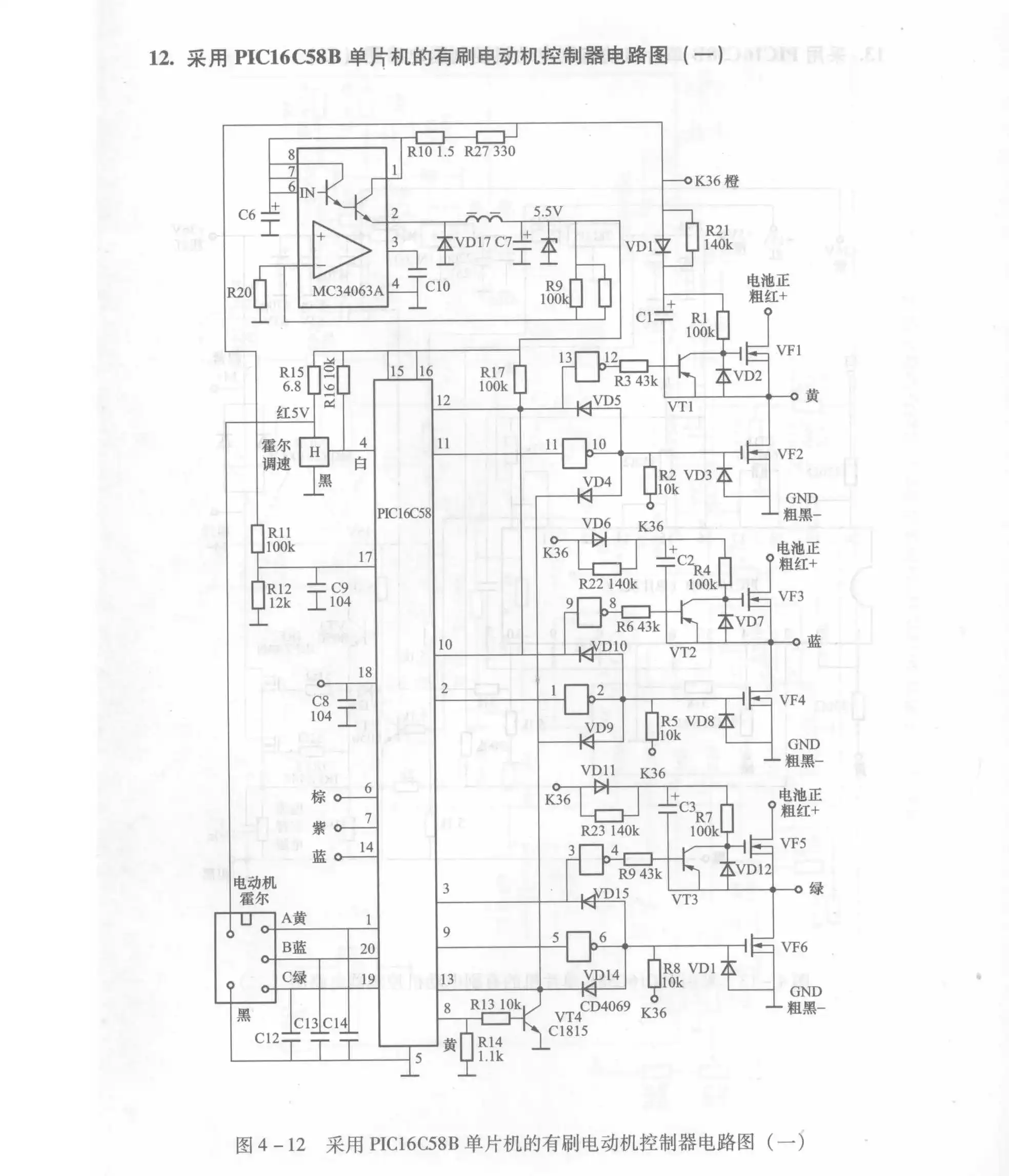

Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller (Part 1)

Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller (Part 1)

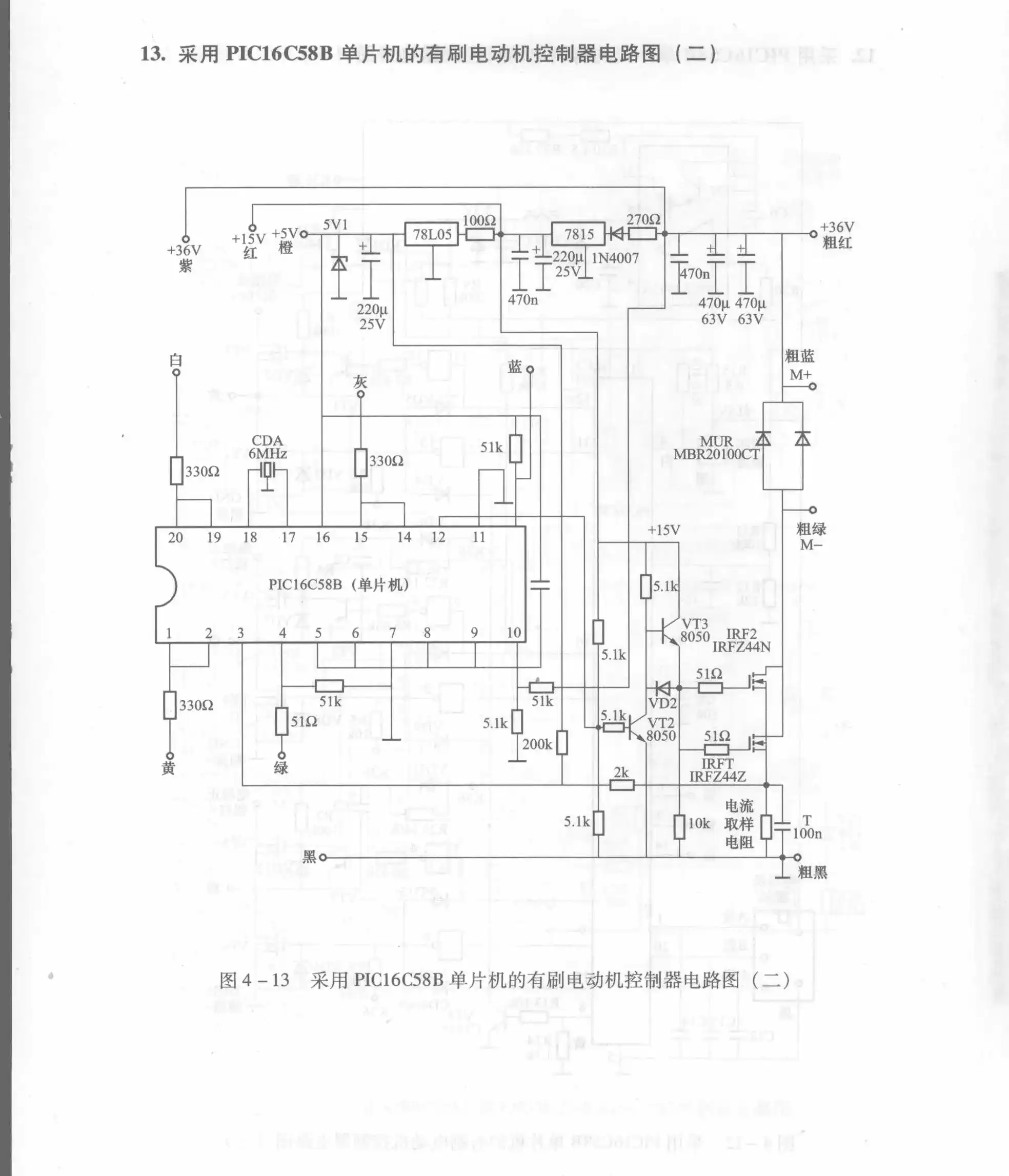

Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller (Part 2)

Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller (Part 2)

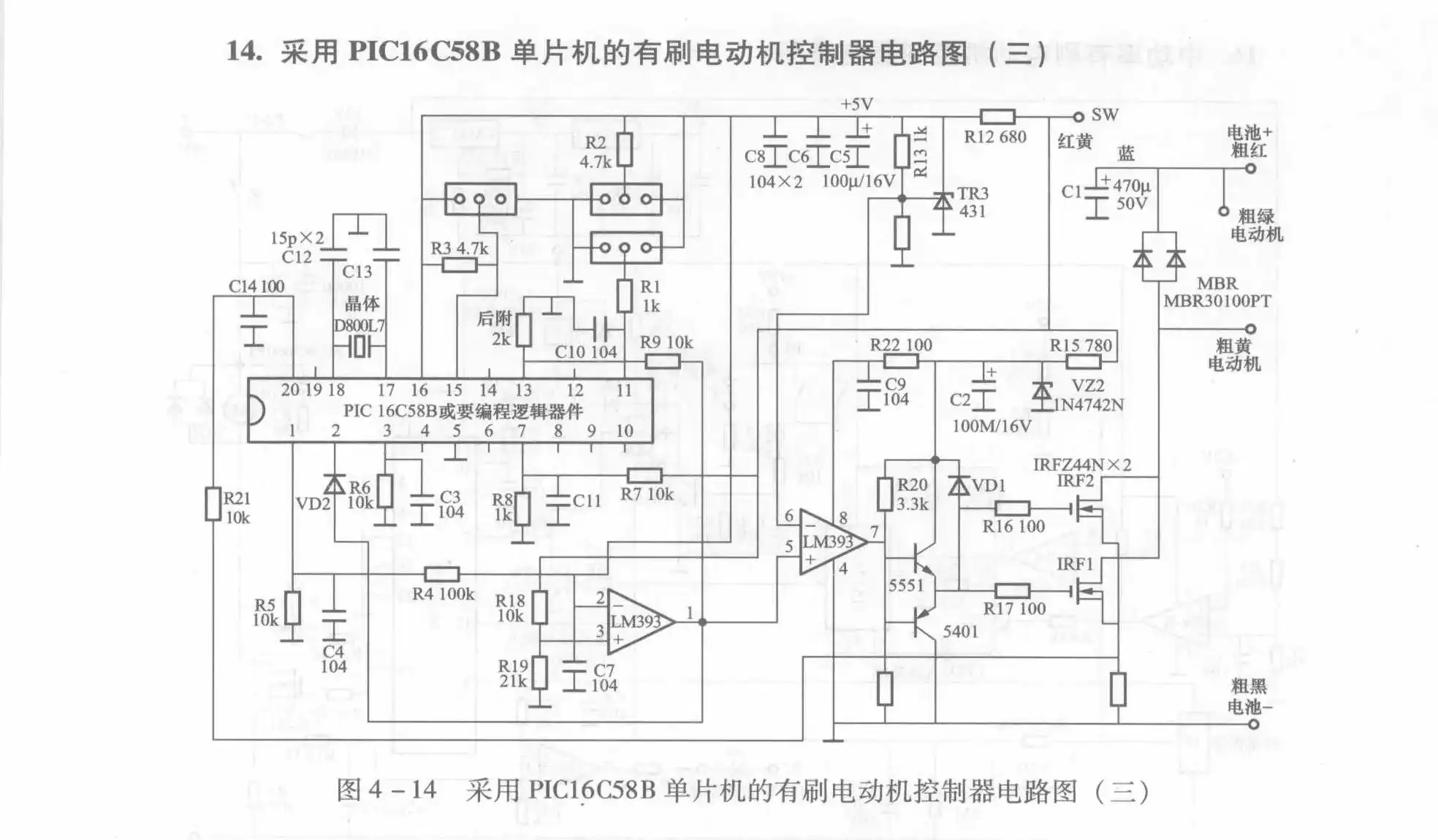

Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller (Part 3)

Brushed Motor Controller Circuit Diagram Using PIC16C58B Microcontroller (Part 3)

For more accurate circuit diagrams, please contact us for the full version.
