Electric Bicycle Brushless Controller Circuit

author
Written by hexjlxm

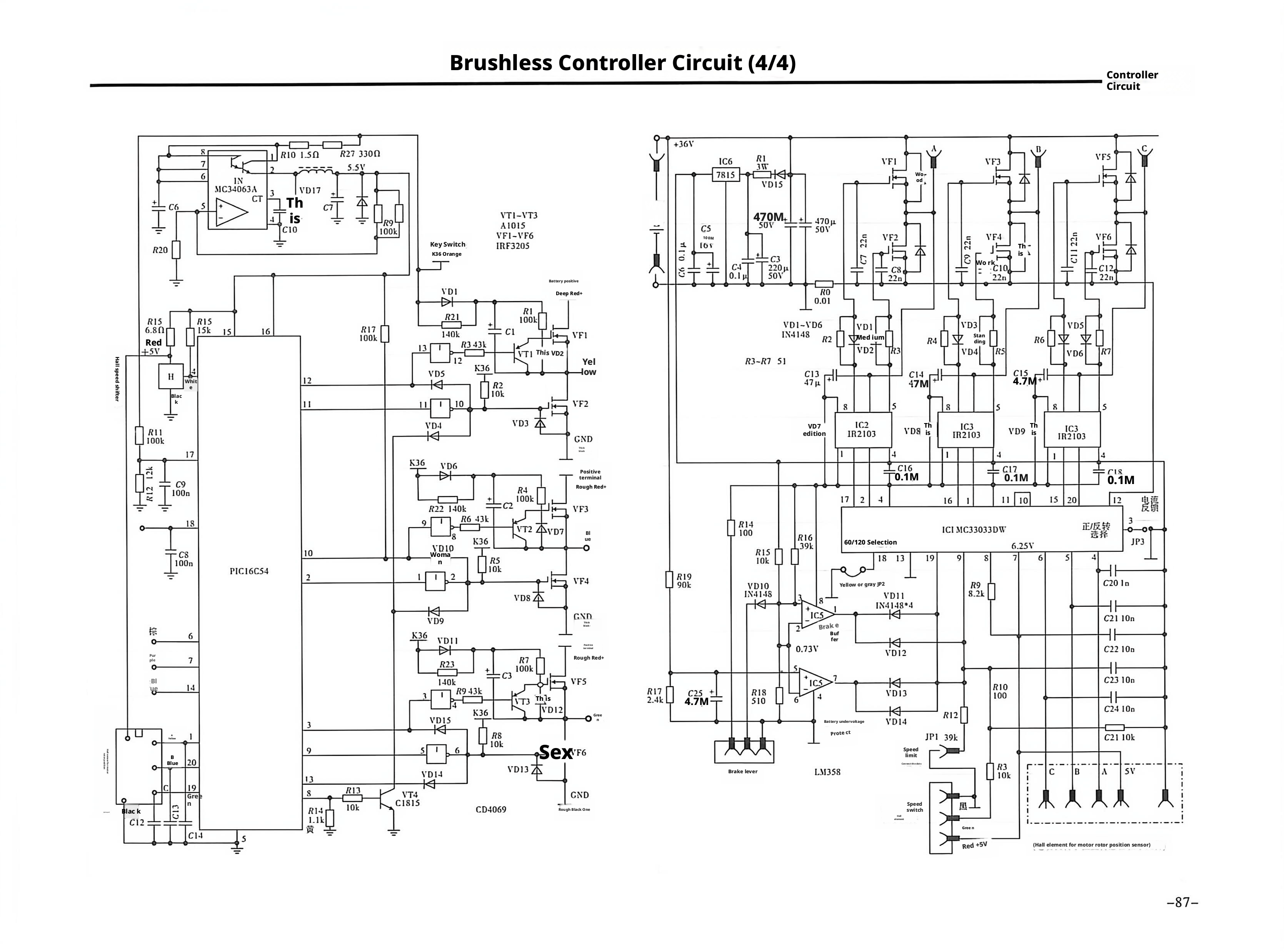

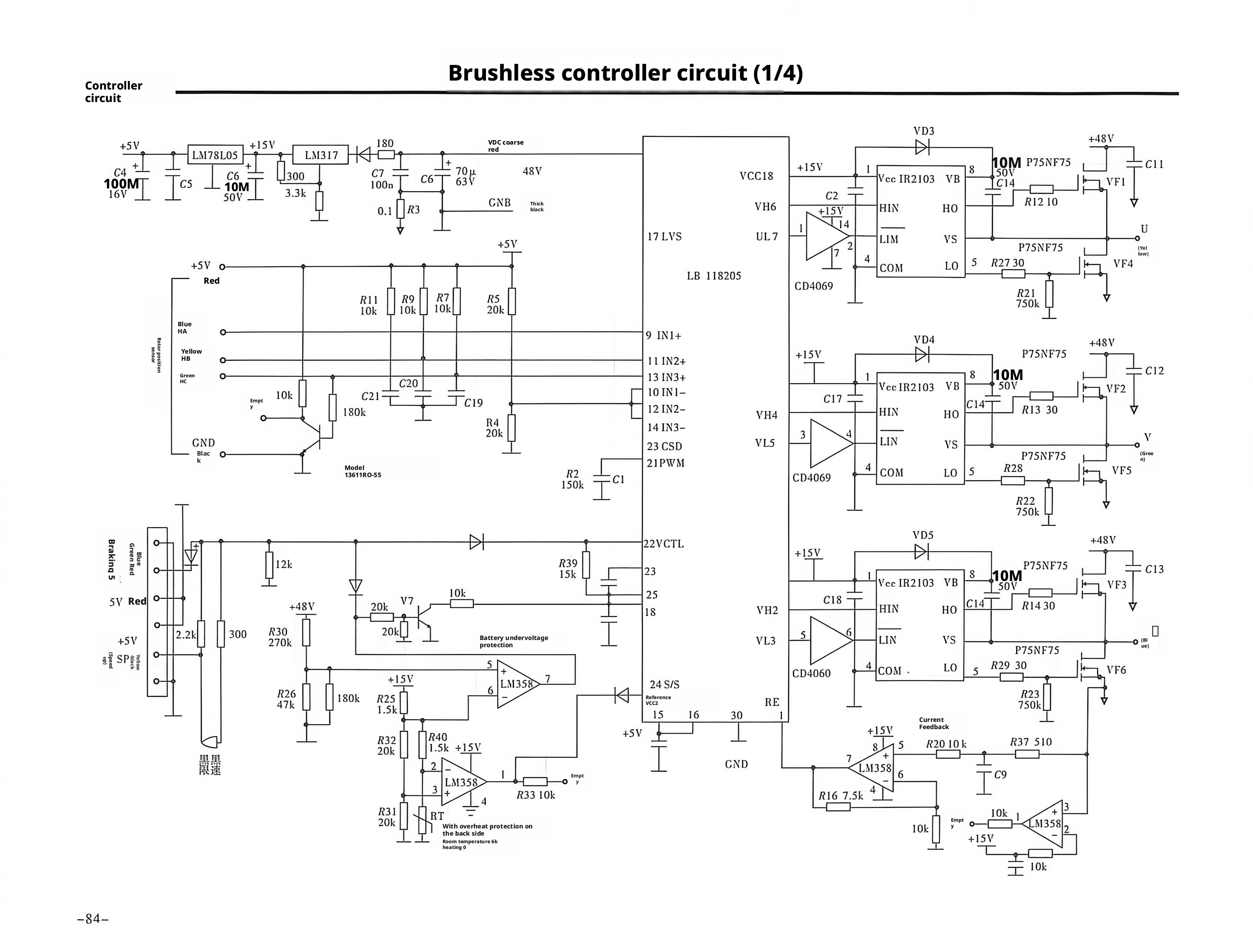

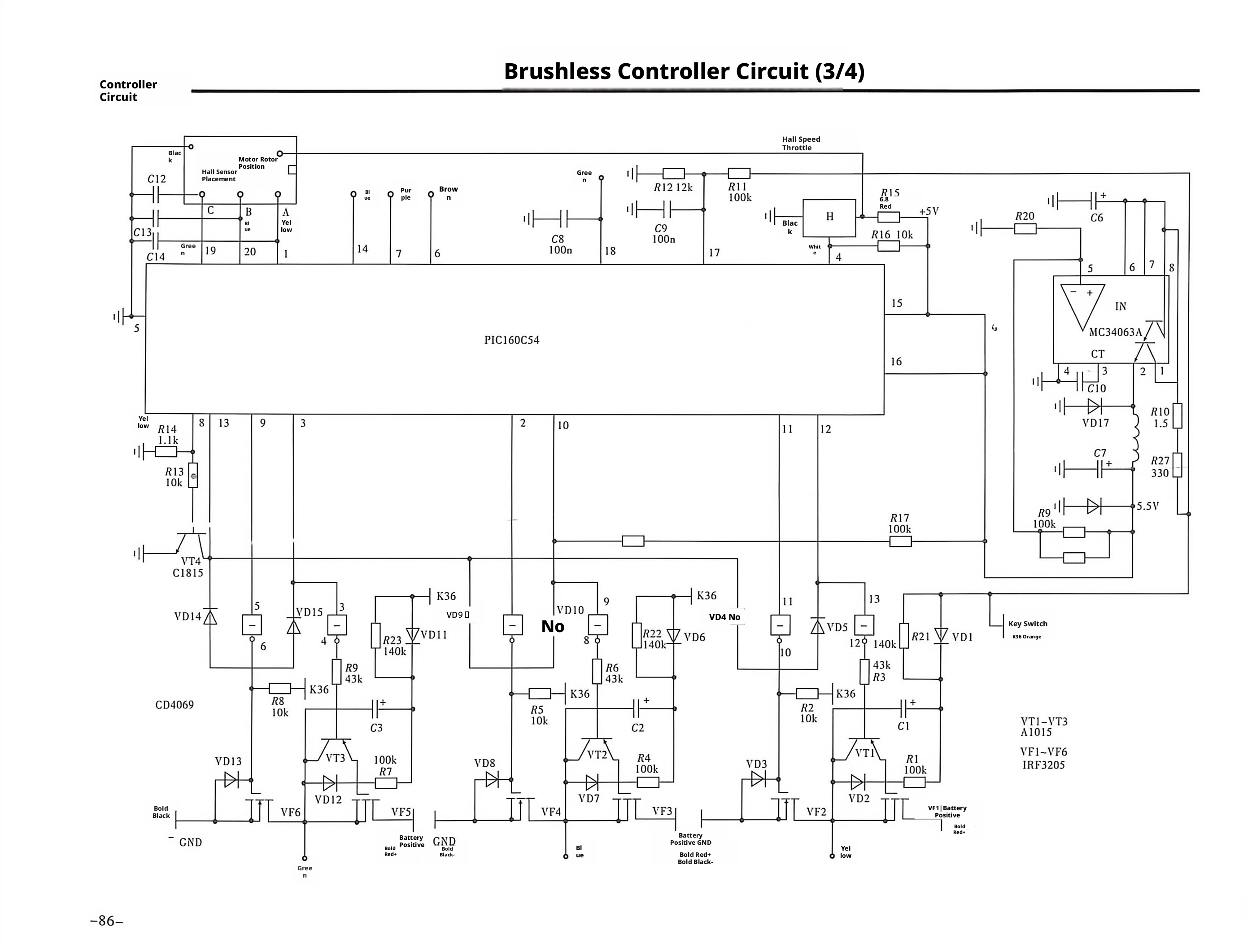

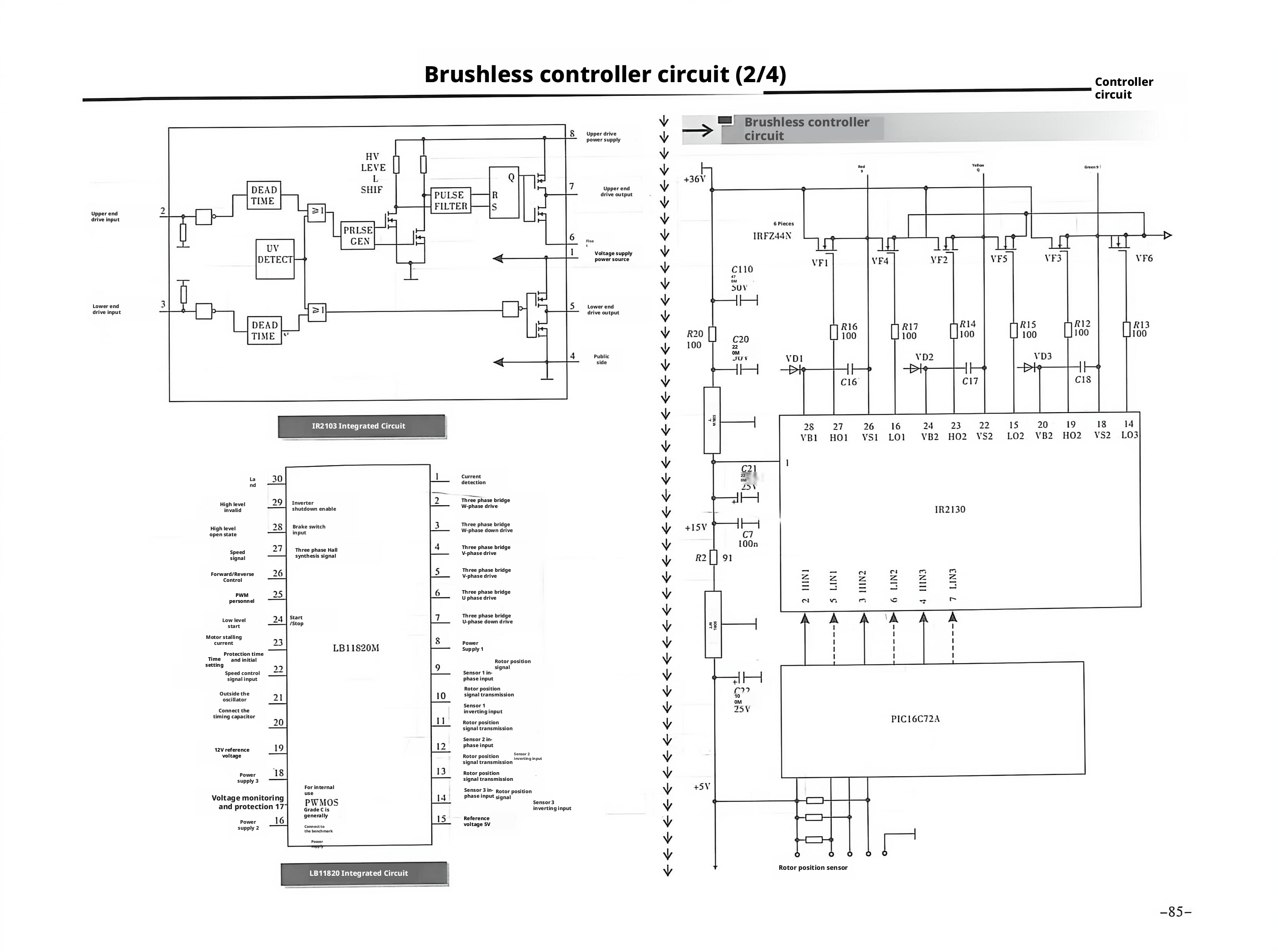

E-bike Circuit Diagram1E-bike Circuit Diagram2E-bike Circuit Diagram3E-bike Circuit Diagram4

For more accurate circuit diagrams, please contact us for the full version.
