Brushed Electric Bicycle Controller Circuit (13/13)

author
Written by hexjlxm

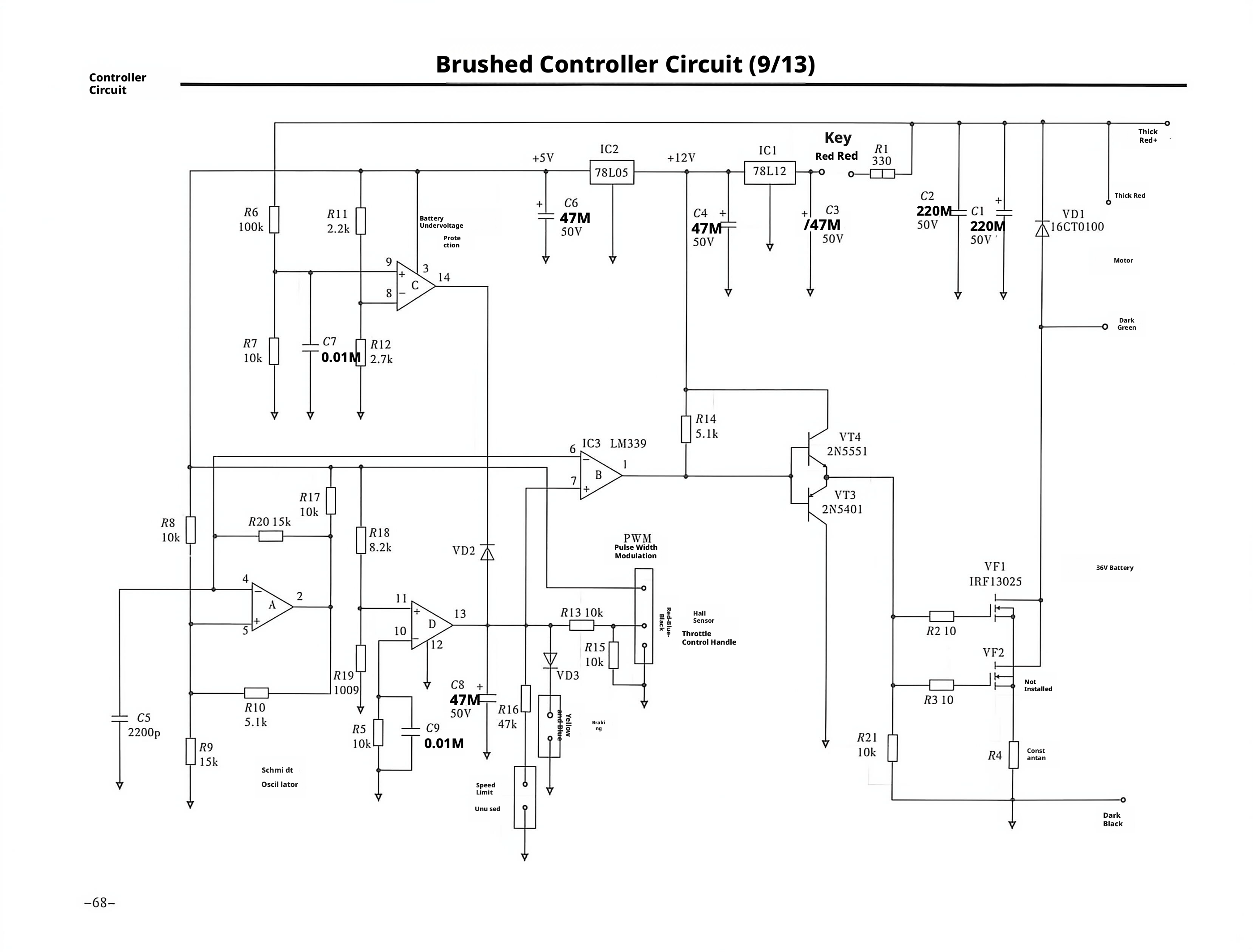

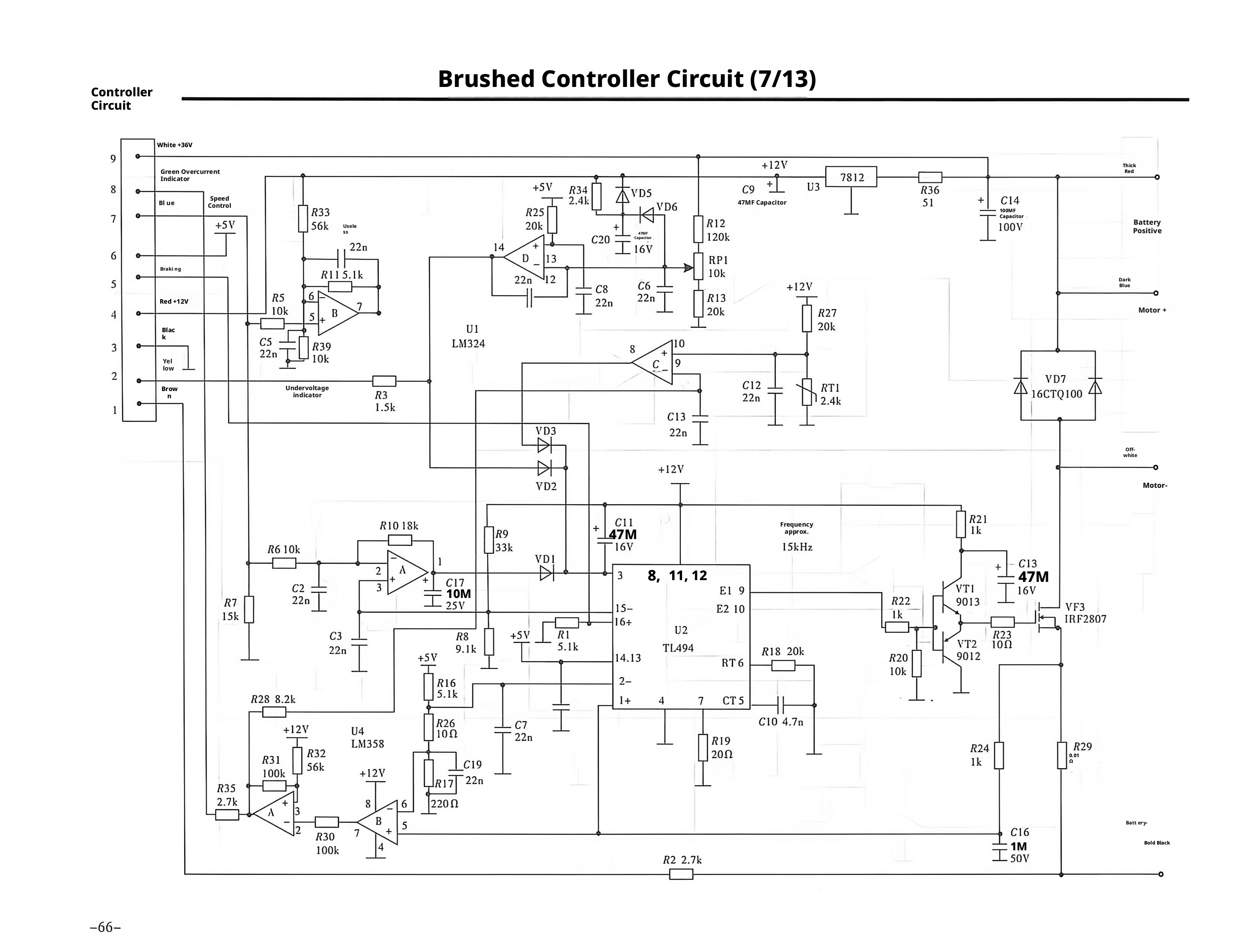

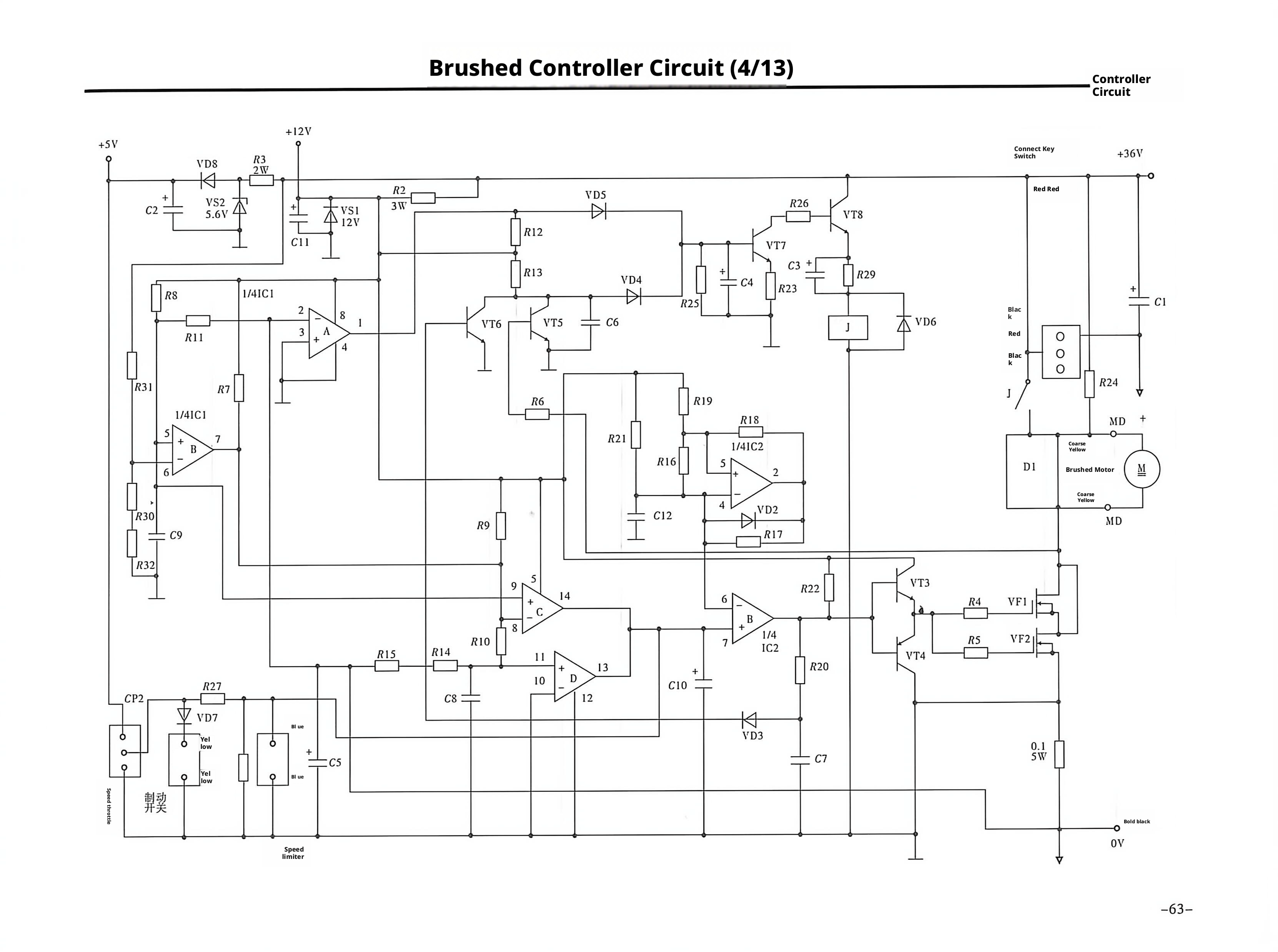

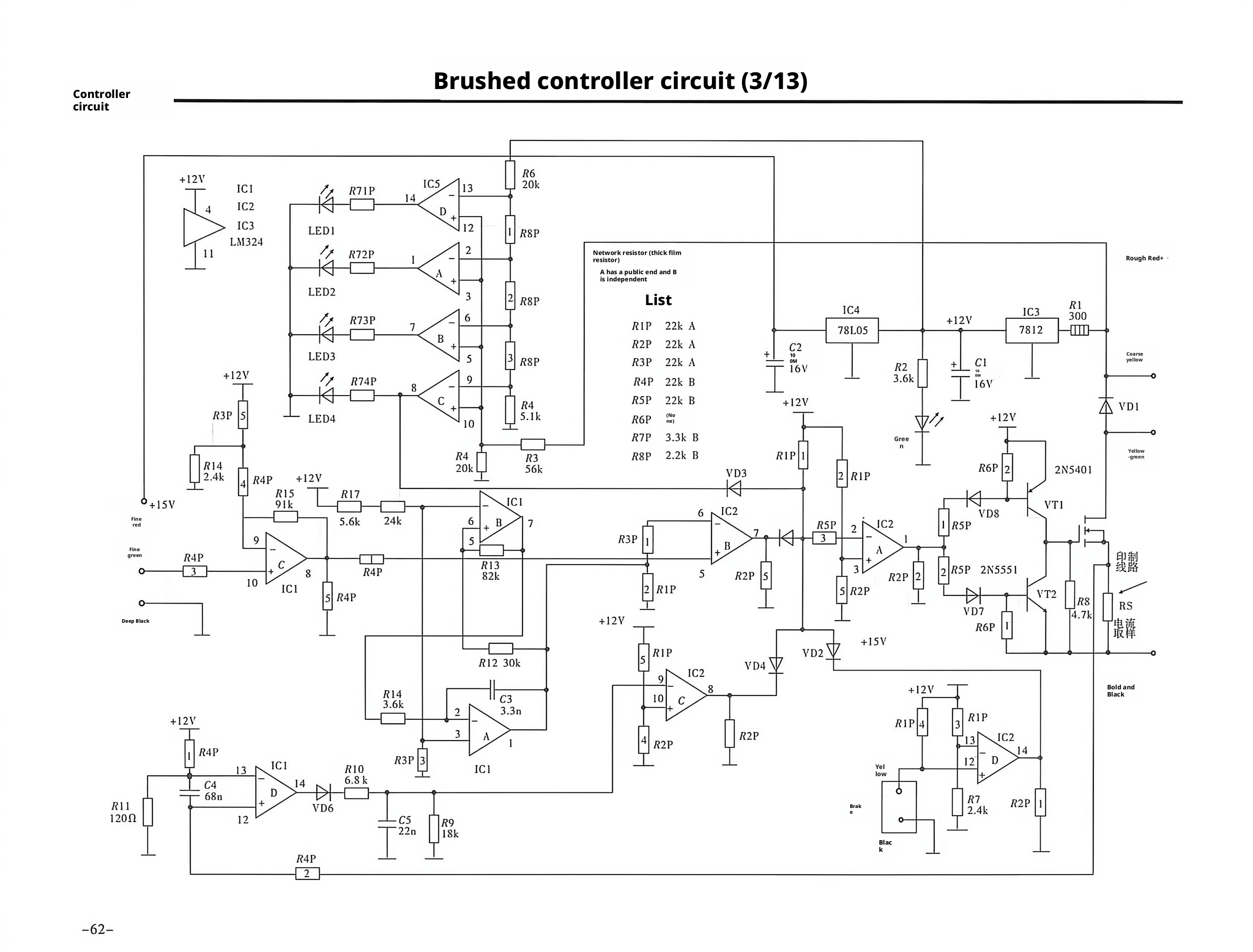

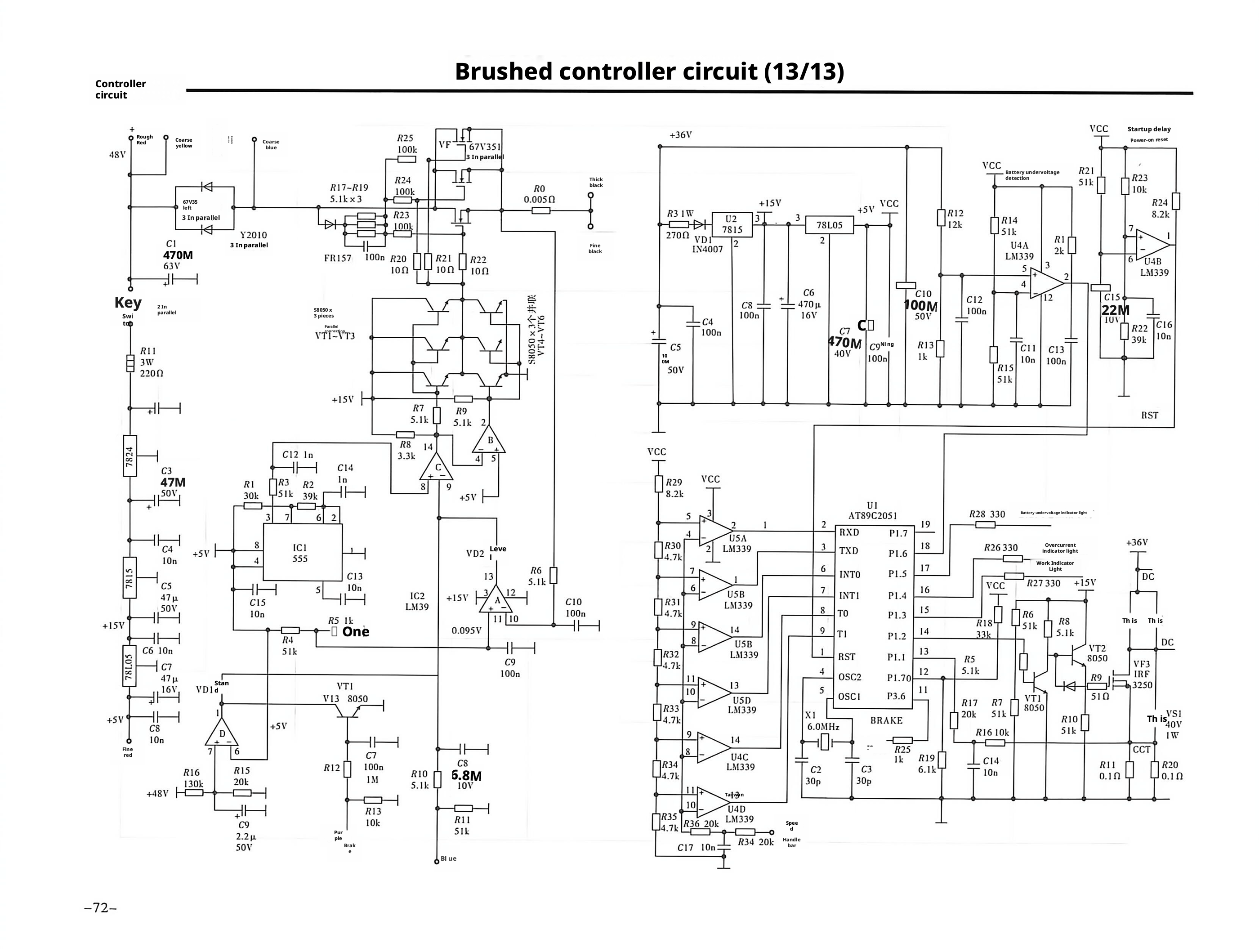

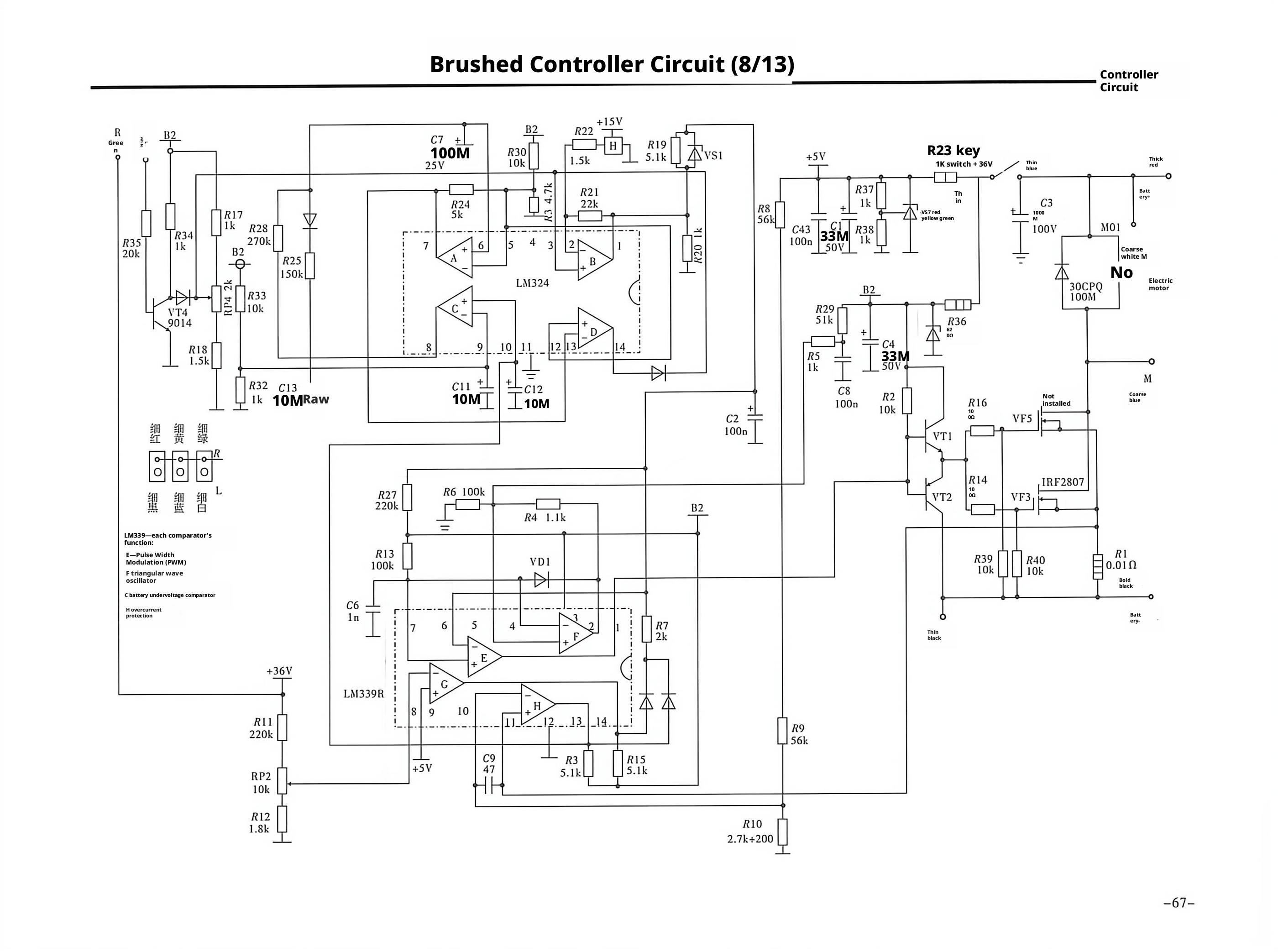

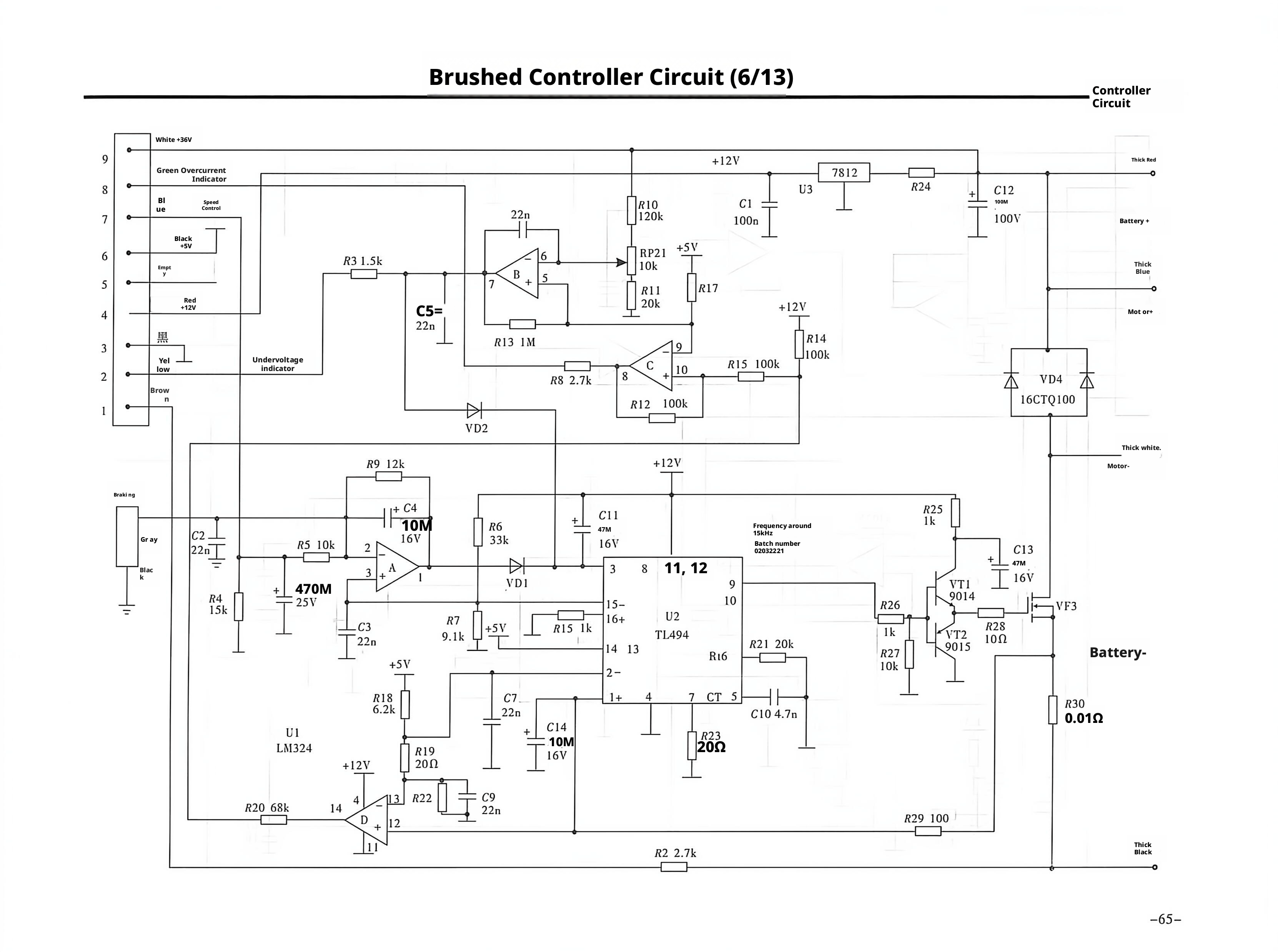

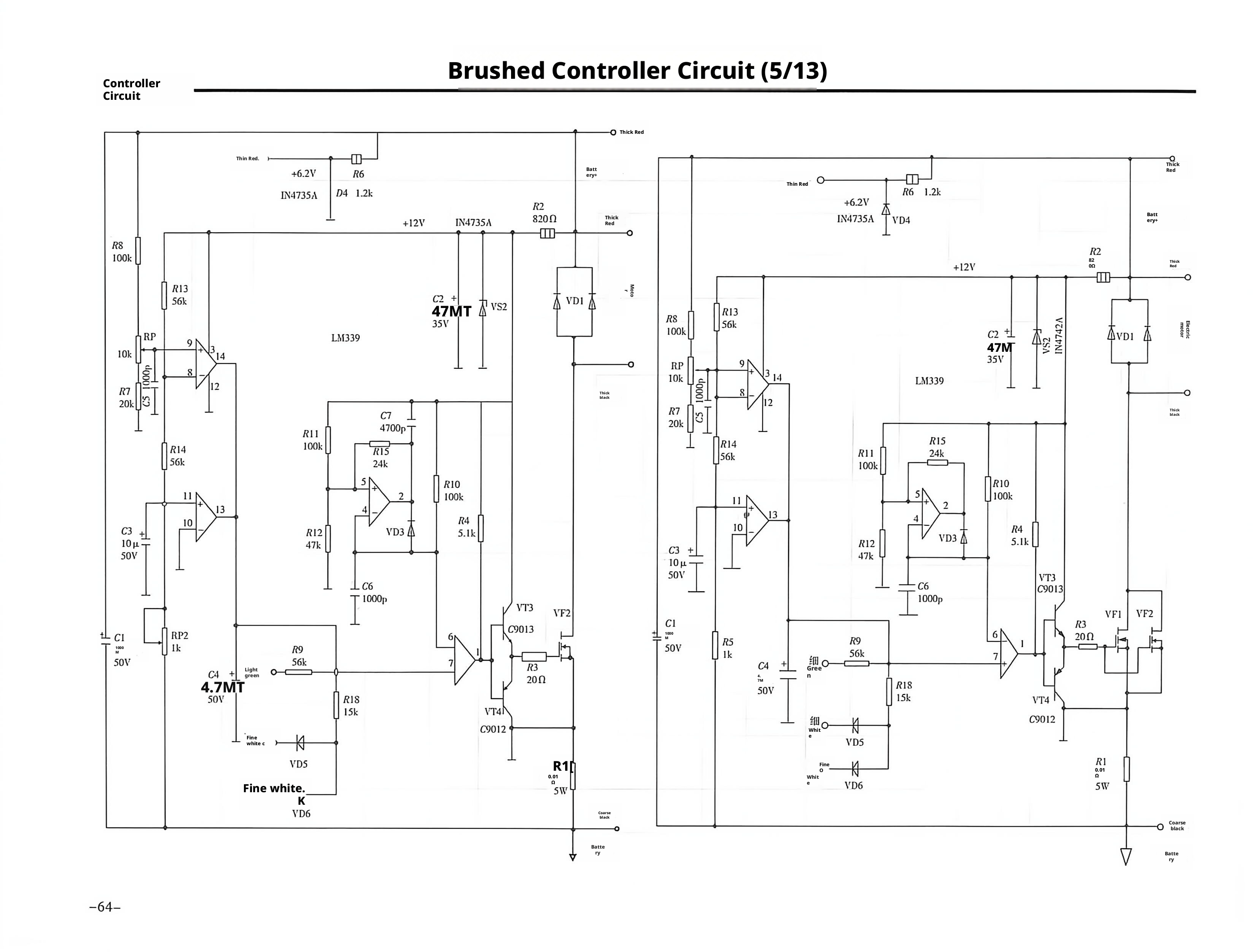

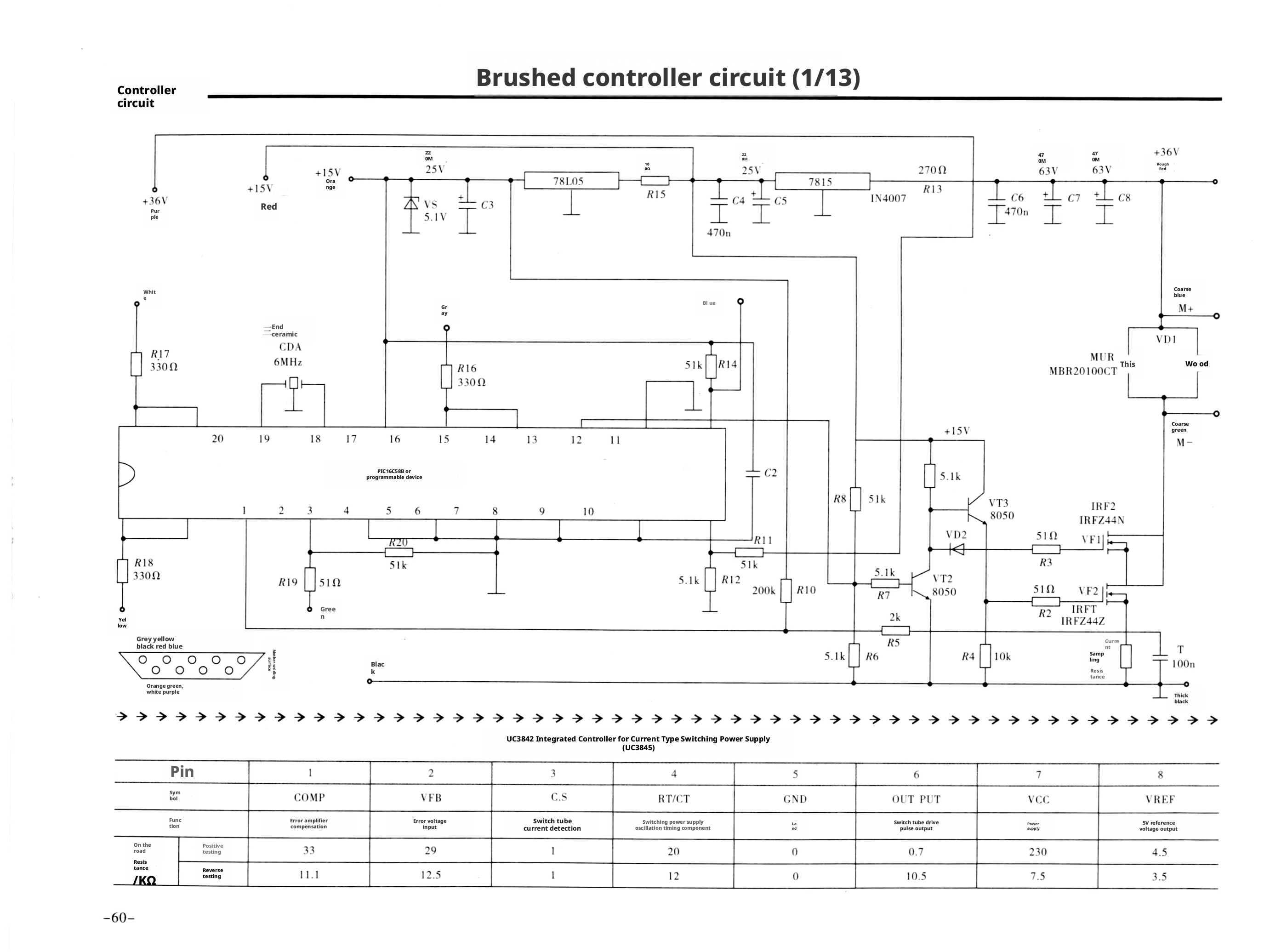

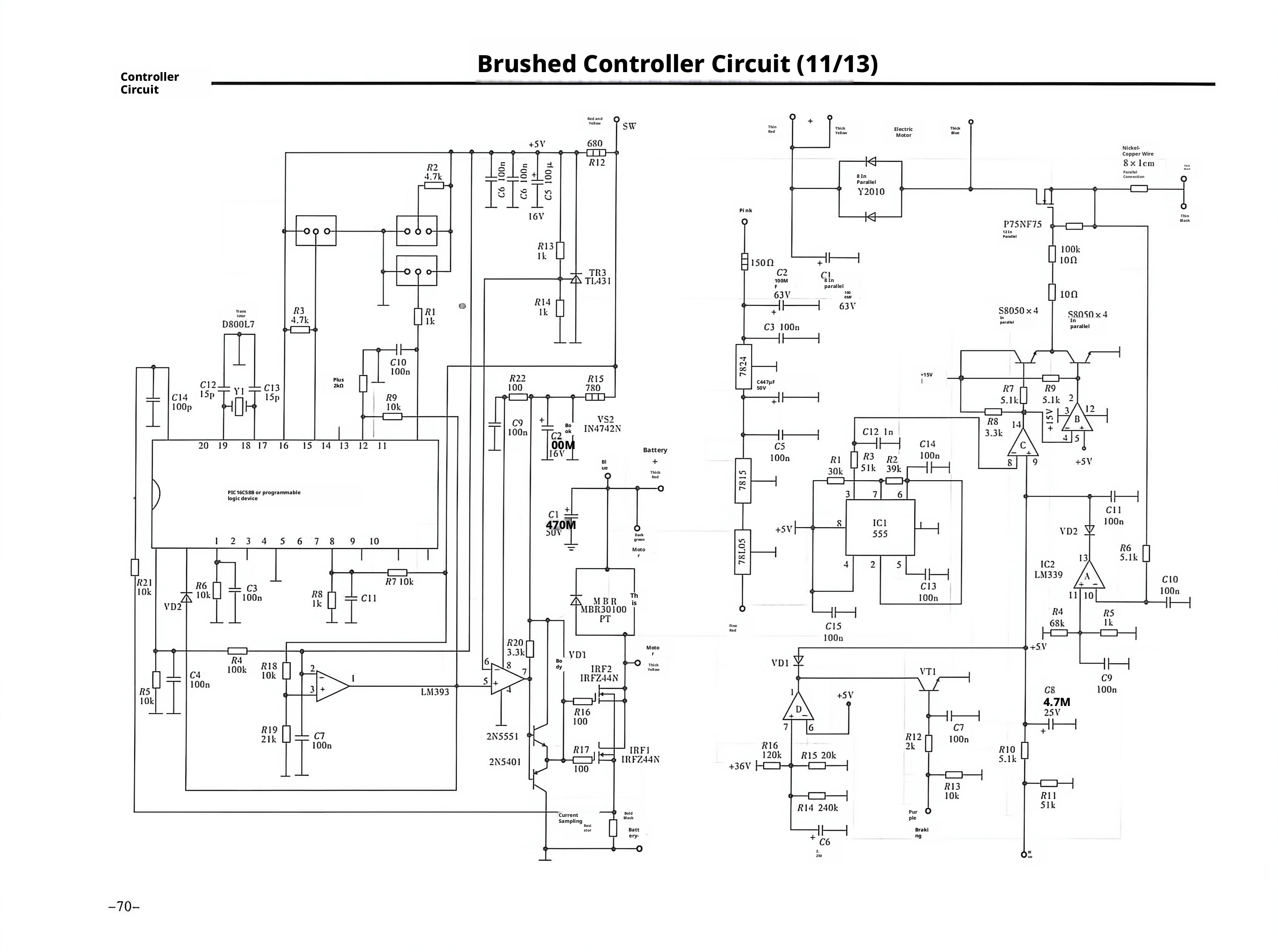

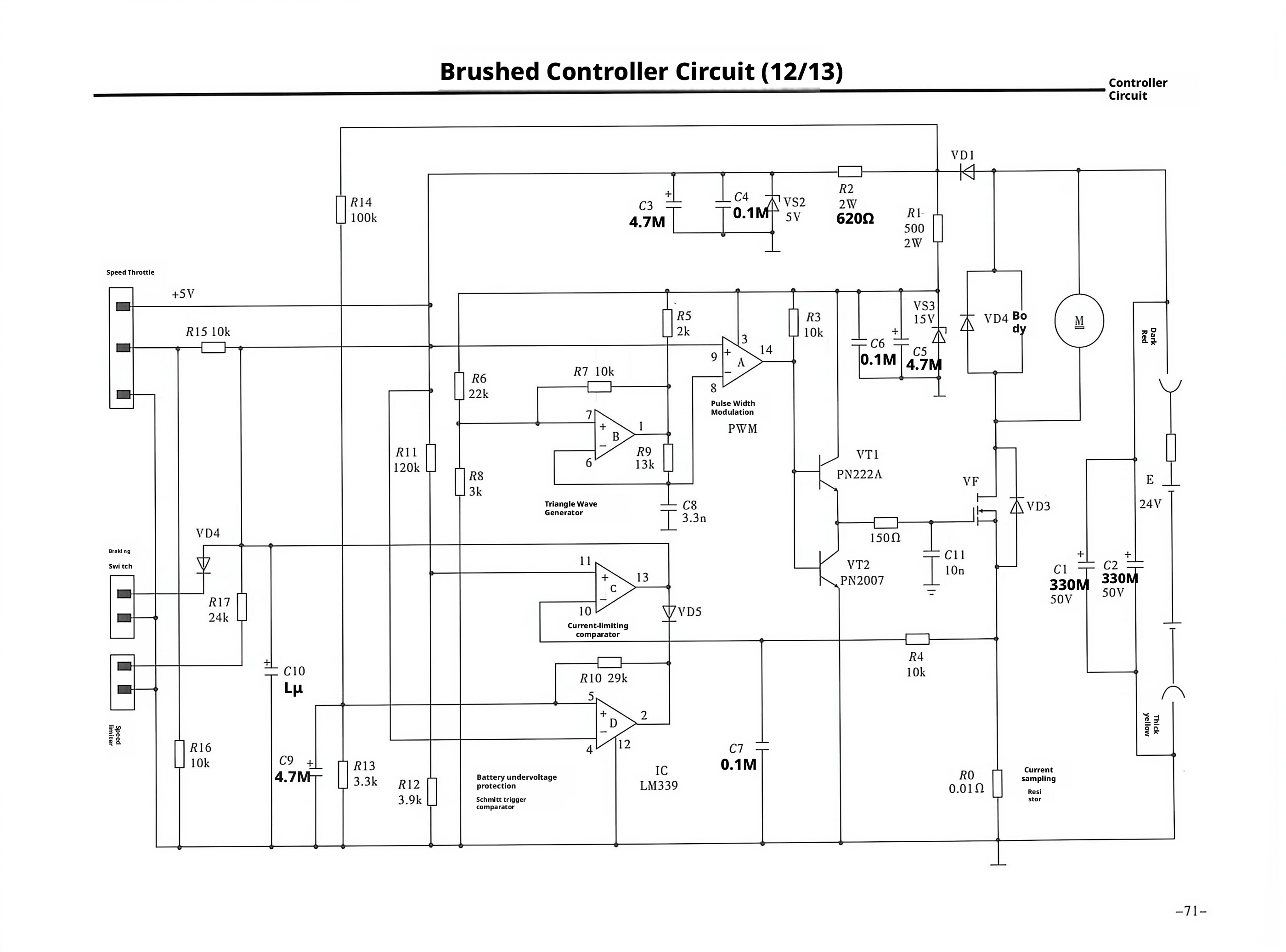

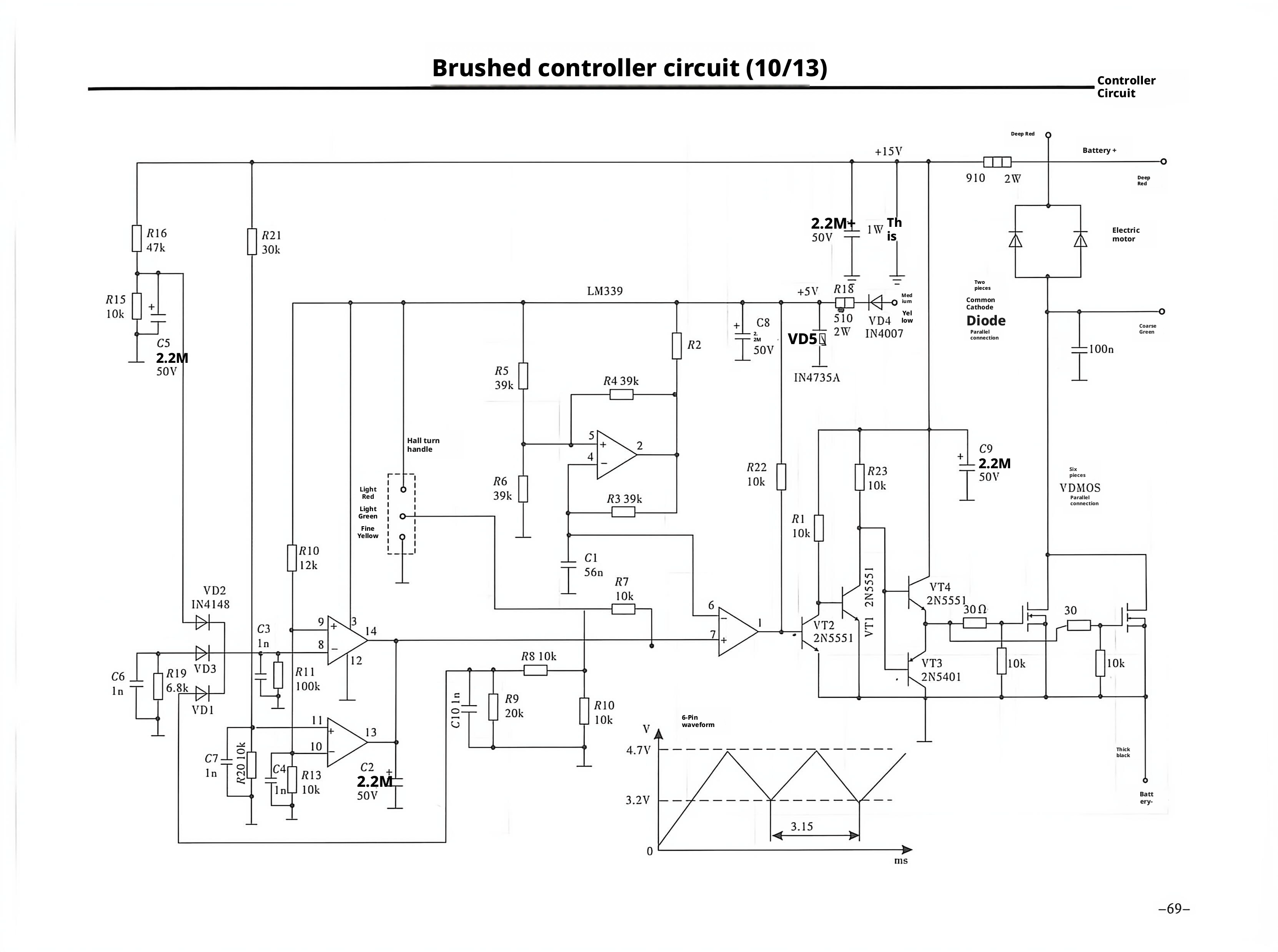

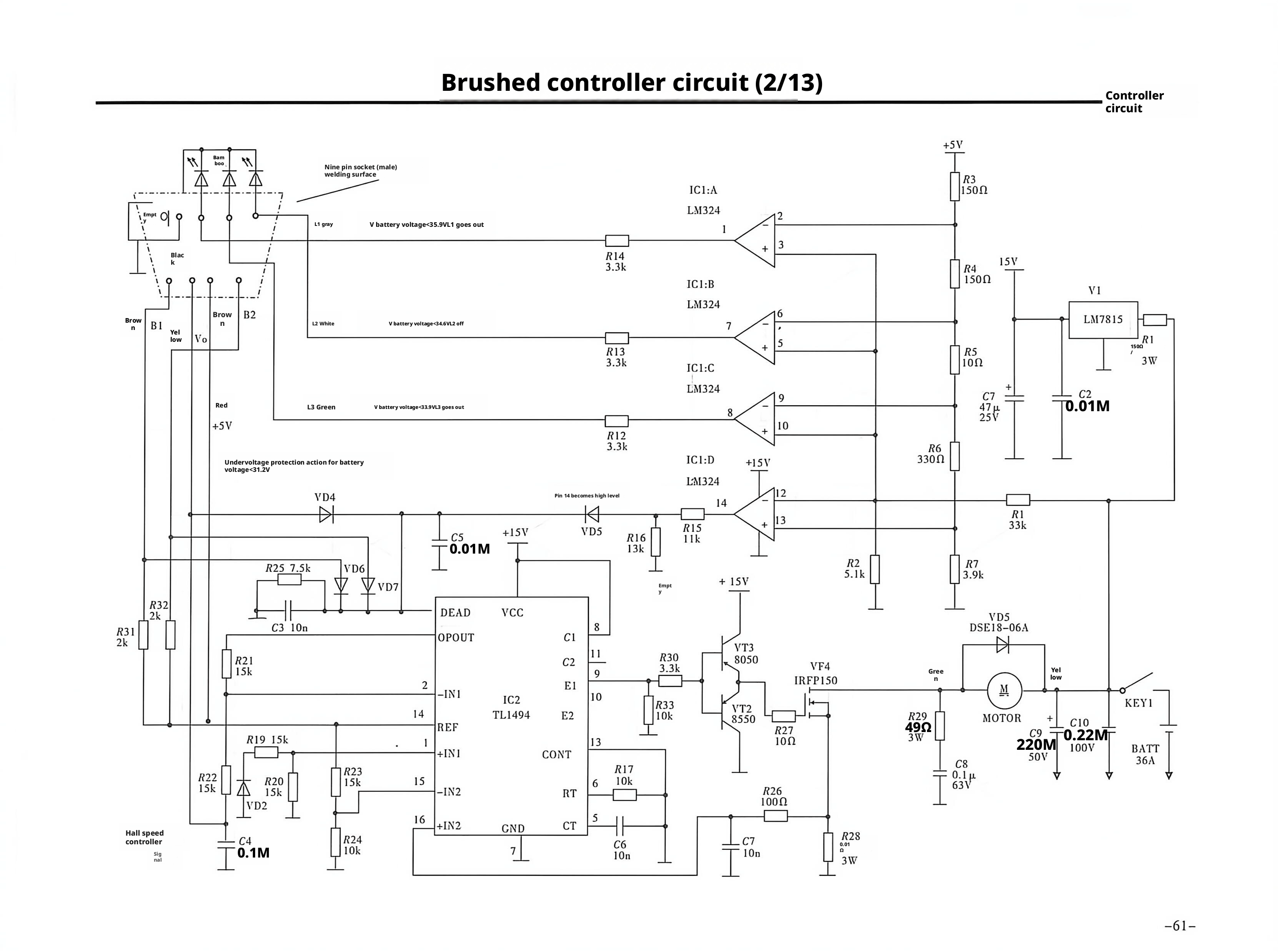

E-bike Circuit Diagram1E-bike Circuit Diagram2E-bike Circuit Diagram3E-bike Circuit Diagram4E-bike Circuit Diagram5E-bike Circuit Diagram6E-bike Circuit Diagram7E-bike Circuit Diagram8E-bike Circuit Diagram9E-bike Circuit Diagram10E-bike Circuit Diagram11E-bike Circuit Diagram12E-bike Circuit Diagram13

For more accurate circuit diagrams, please contact us for the full version.
