Zhengzhou EA-H-36 Charger Circuit Diagram

author
Written by hexjlxm

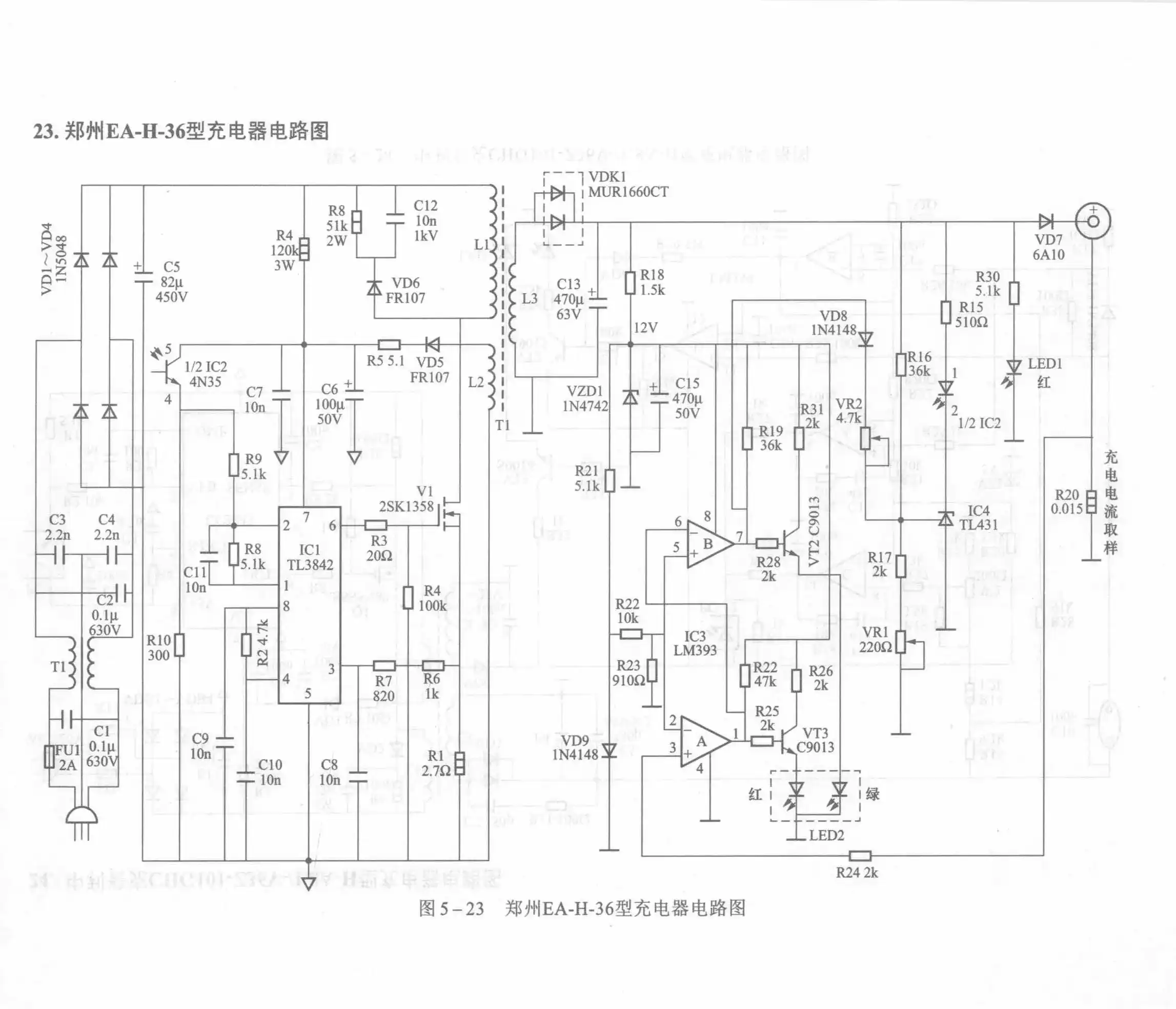

Zhengzhou EA-H-36 Charger Circuit Diagram

Zhengzhou EA-H-36 Charger Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.
