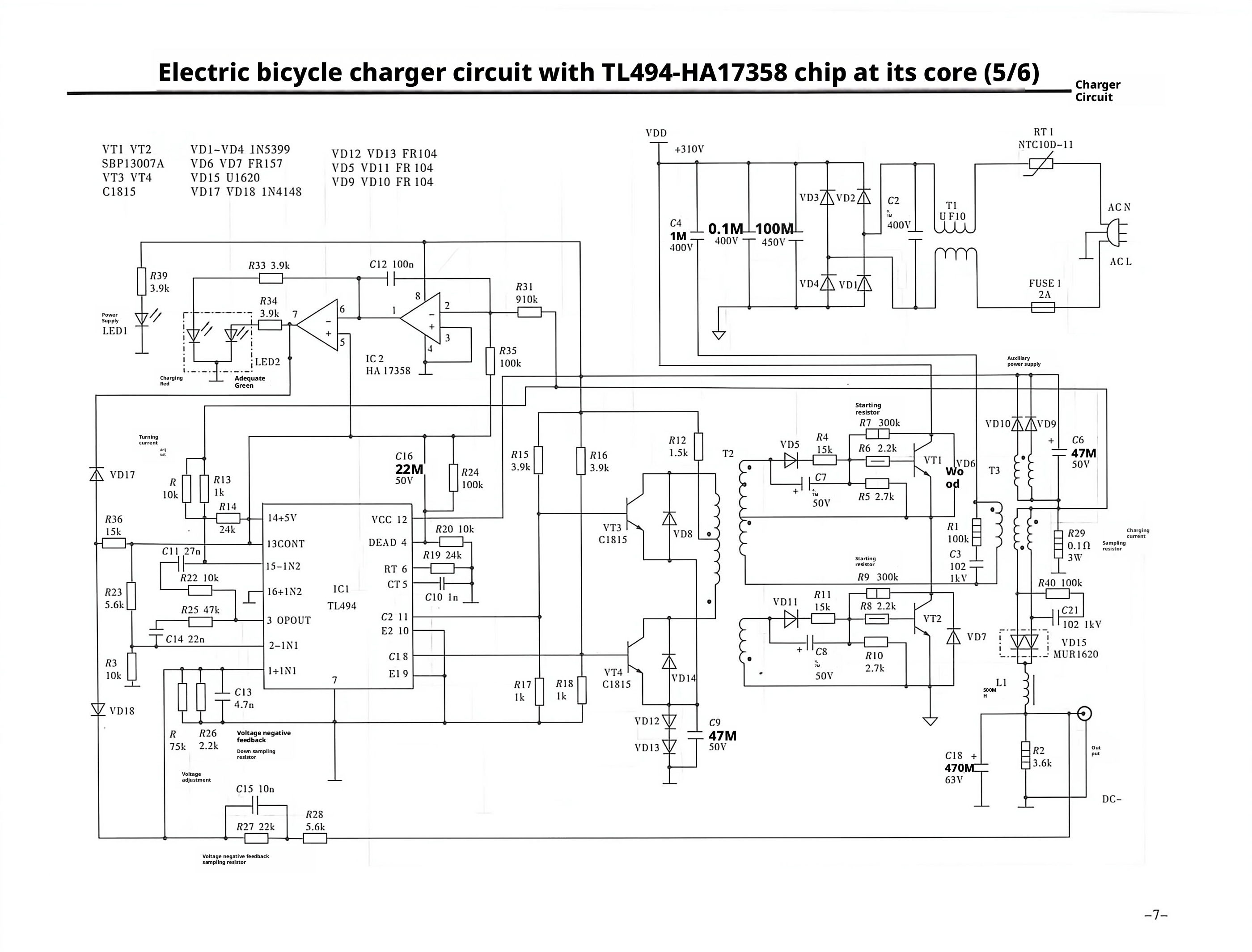

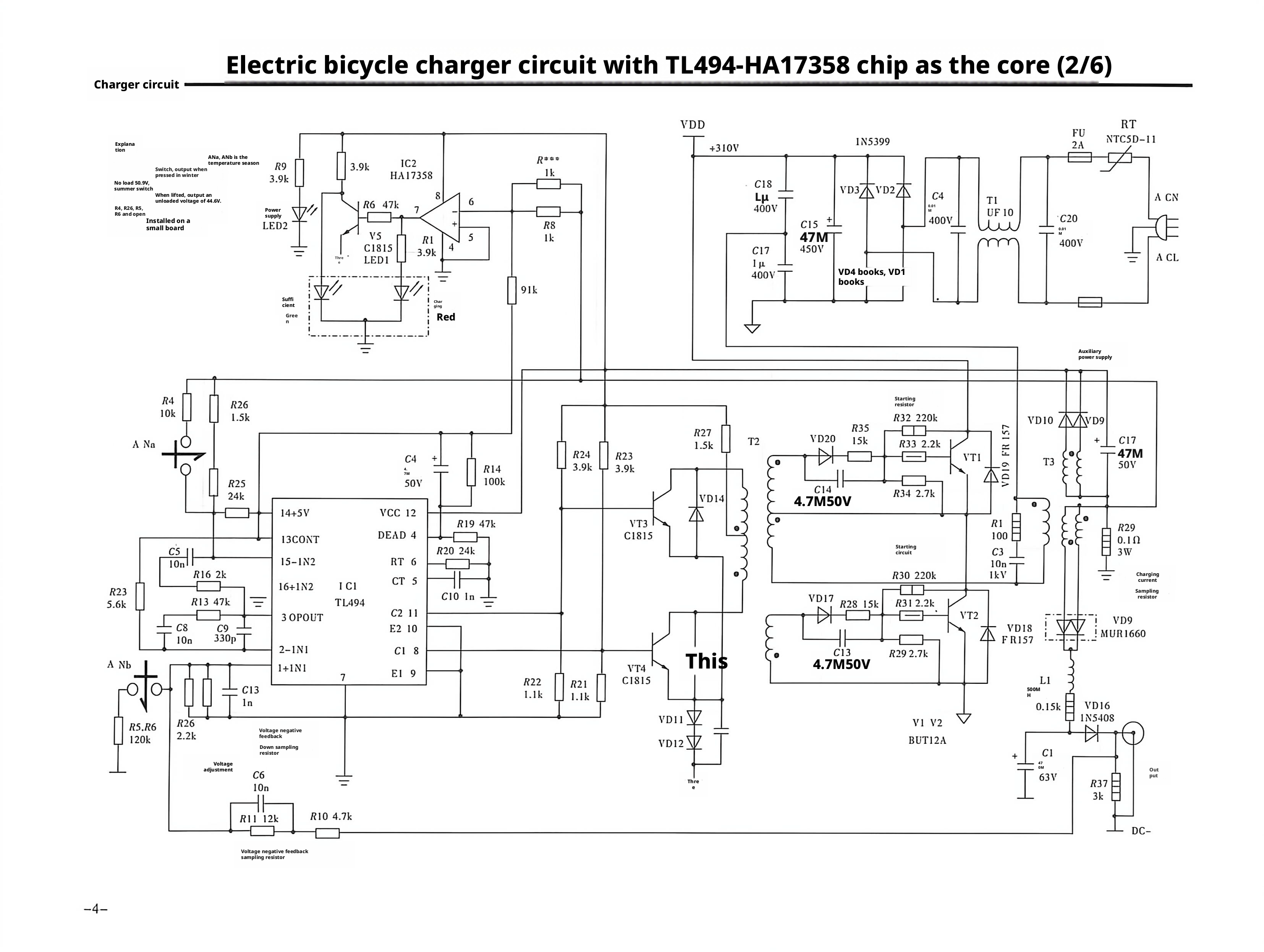

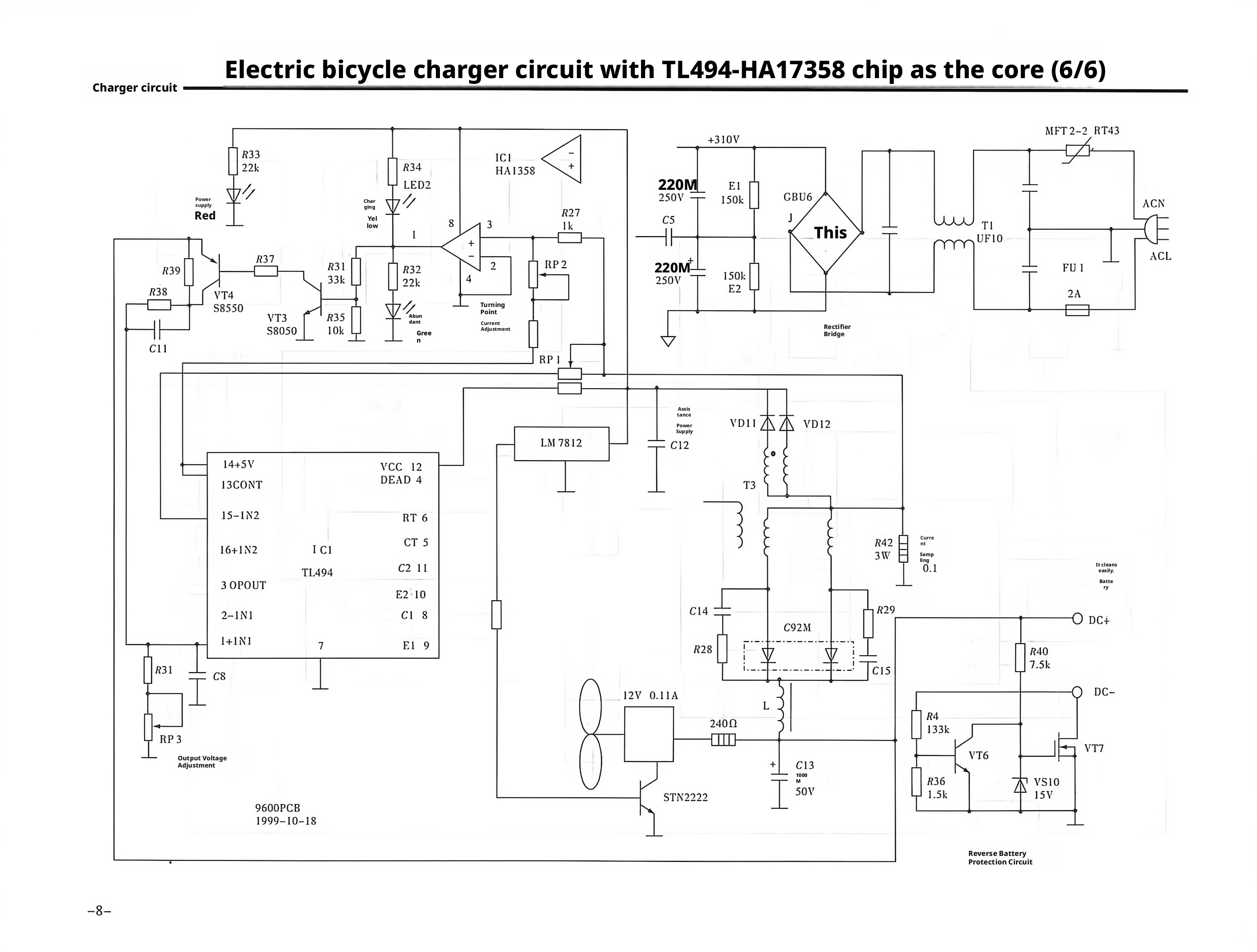

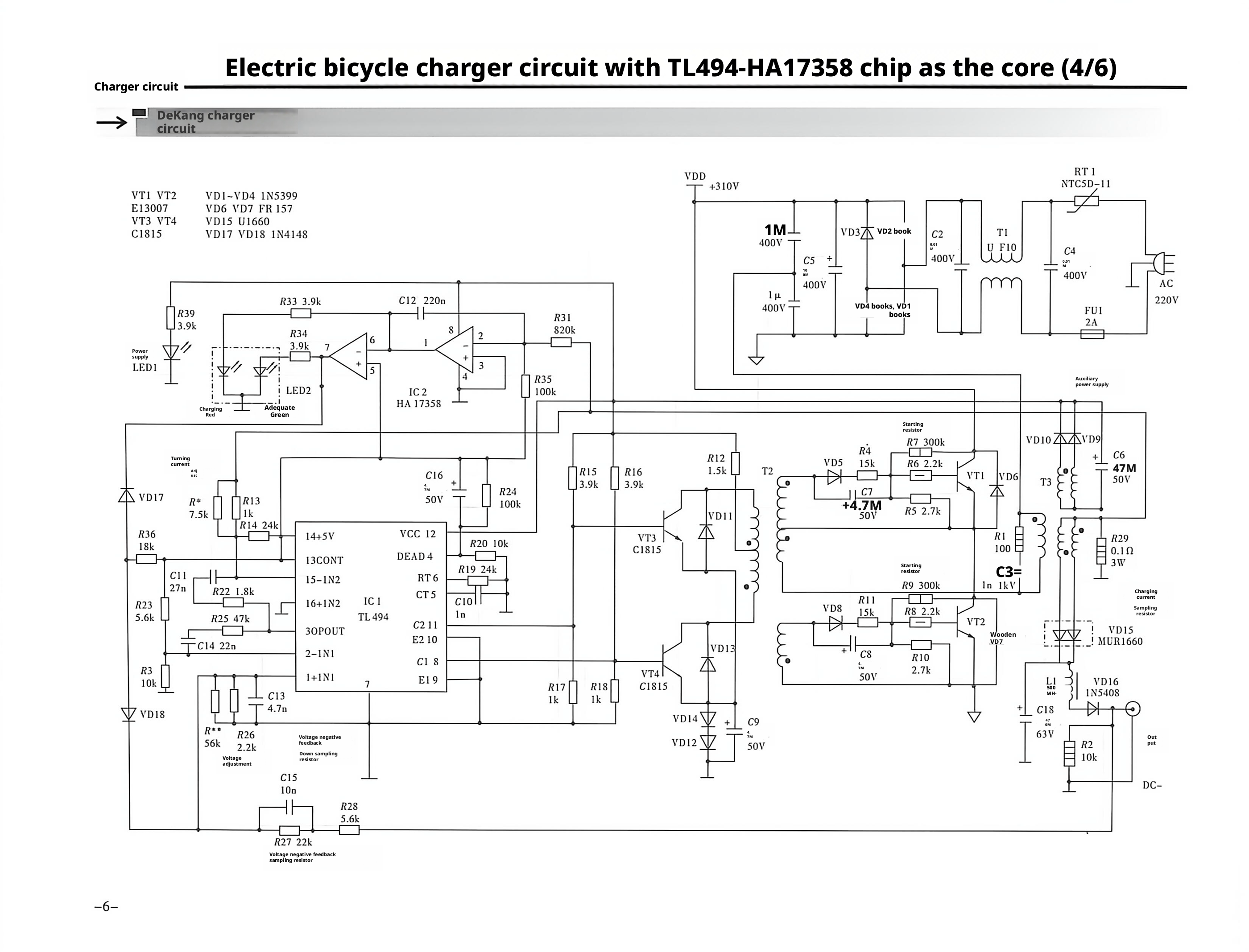

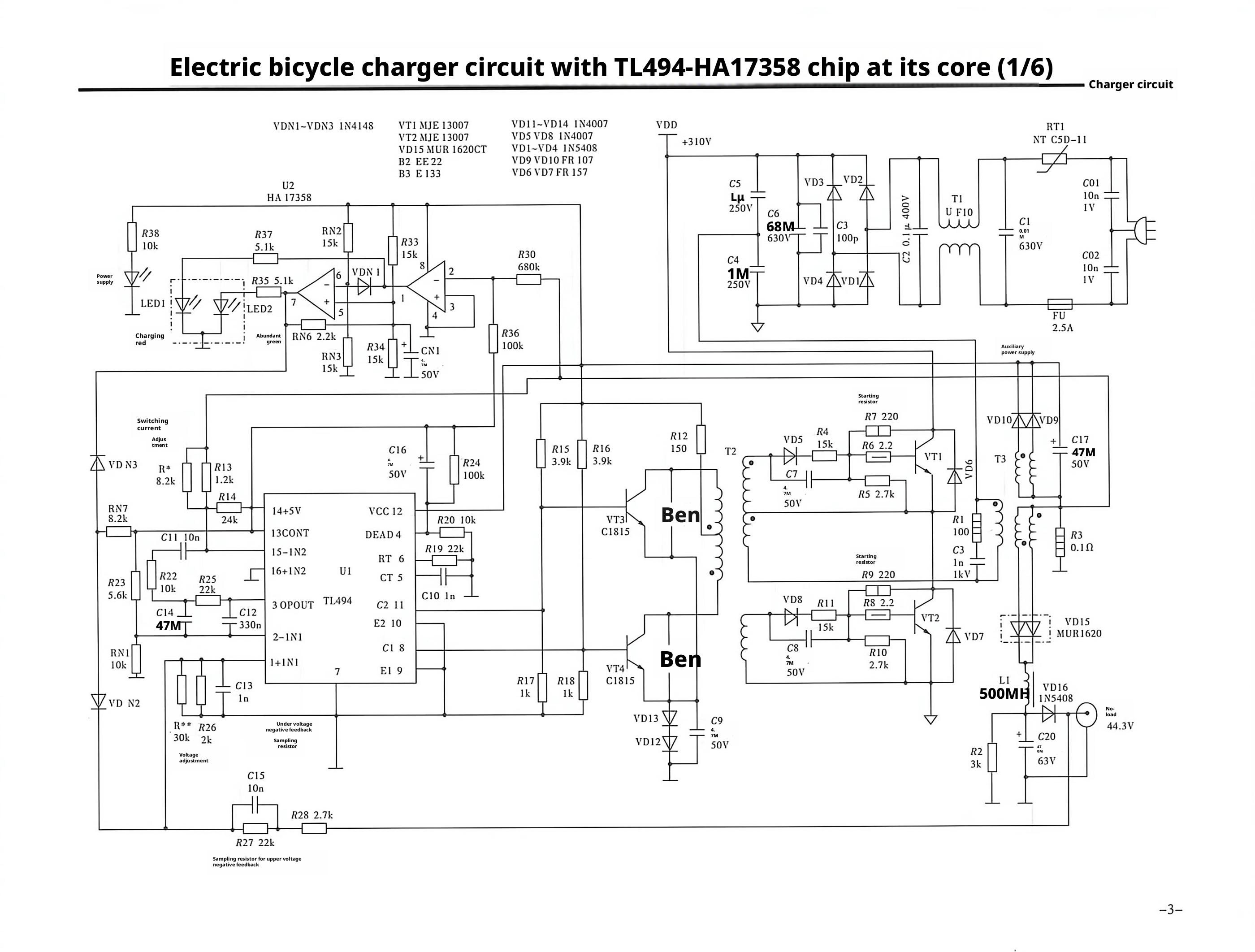

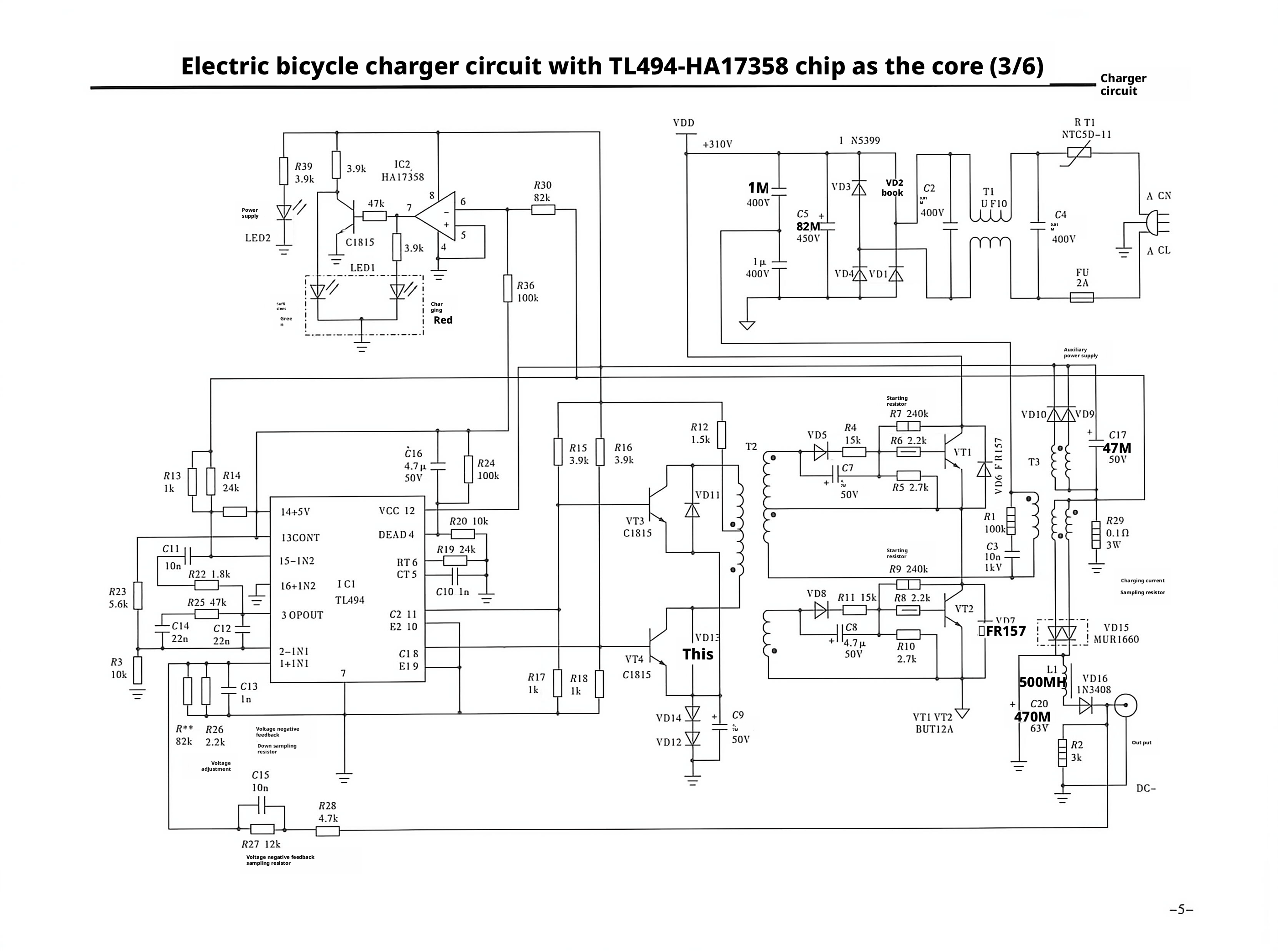

Electric Bicycle Charger Circuit Based on the TL494-HA17358 Chip Written by hexjlxm Sep 18, 2026 For more accurate circuit diagrams, please contact us for the full version. Electric Bicycle Charger Circuit Based on the TL494 Chip Electric Bicycle Charger Circuit Based on the TL494 Chip. Includes circuit diagrams, principle analysis, repair steps... ← Previous Electric Bicycle Charger Circuit Based on the TL494-LM324... Electric Bicycle Charger Circuit Based on the TL494-LM324 Chip. Includes circuit diagrams, principle analysis, repair... Next → Related Posts Charger Circuit Diagram Using SG3524 Schematic Diagram of an Electric Bicycle Switching Power Supply Charger Circuit (LM358 + IN4148) KGC2403 Charger Circuit Diagram Philips TDH2000 36V/3A Charger Circuit Diagram High-Power Electric Tricycle Charger Circuit Diagram Using LM393
