Aucma DS-2412I Pulse Charger Circuit Diagram

author
Written by hexjlxm

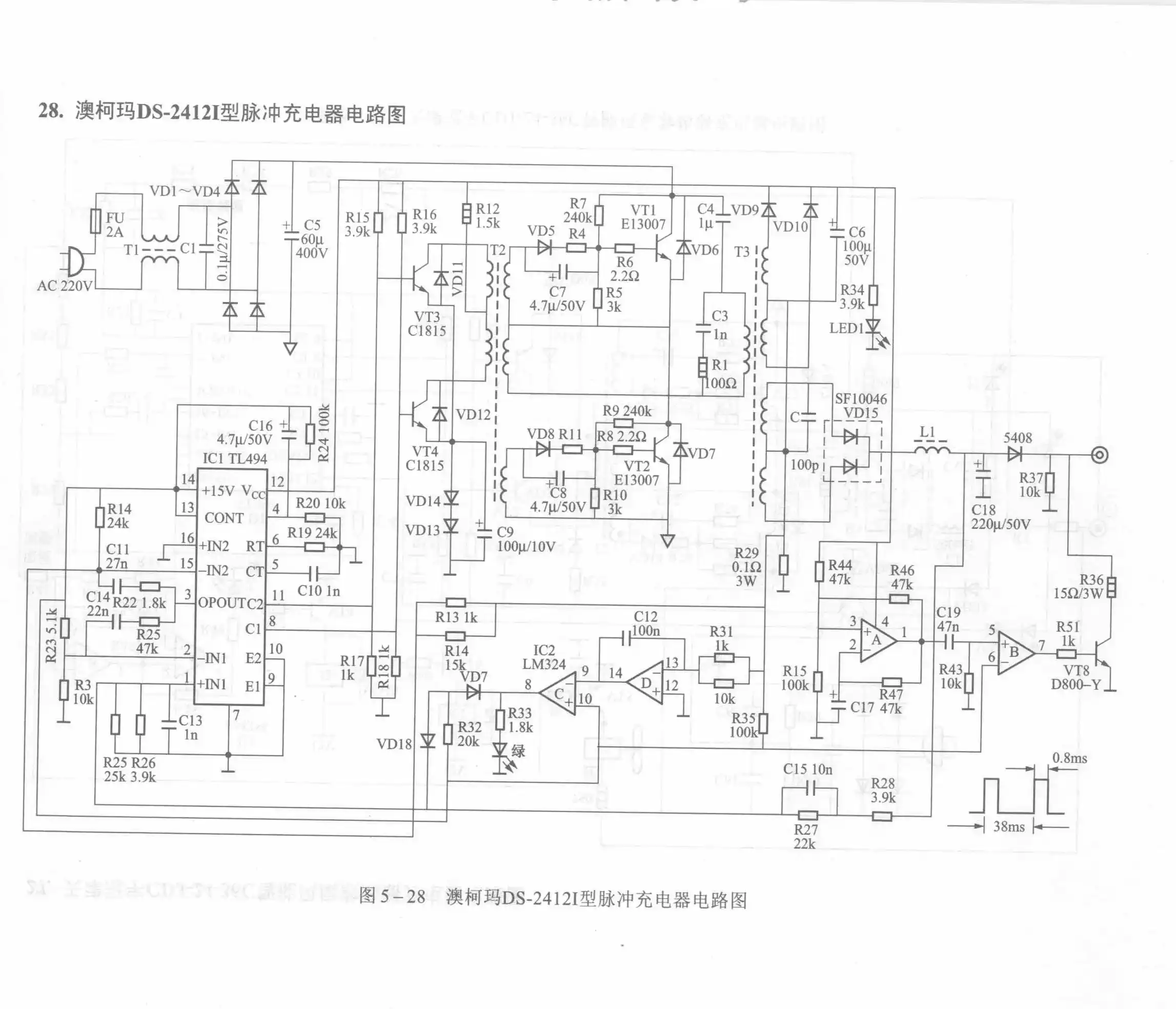

Aucma DS-2412I Pulse Charger Circuit Diagram

Aucma DS-2412I Pulse Charger Circuit Diagram

For more accurate circuit diagrams, please contact us for the full version.
